Operator’s Manual
17306 CRT Tiller

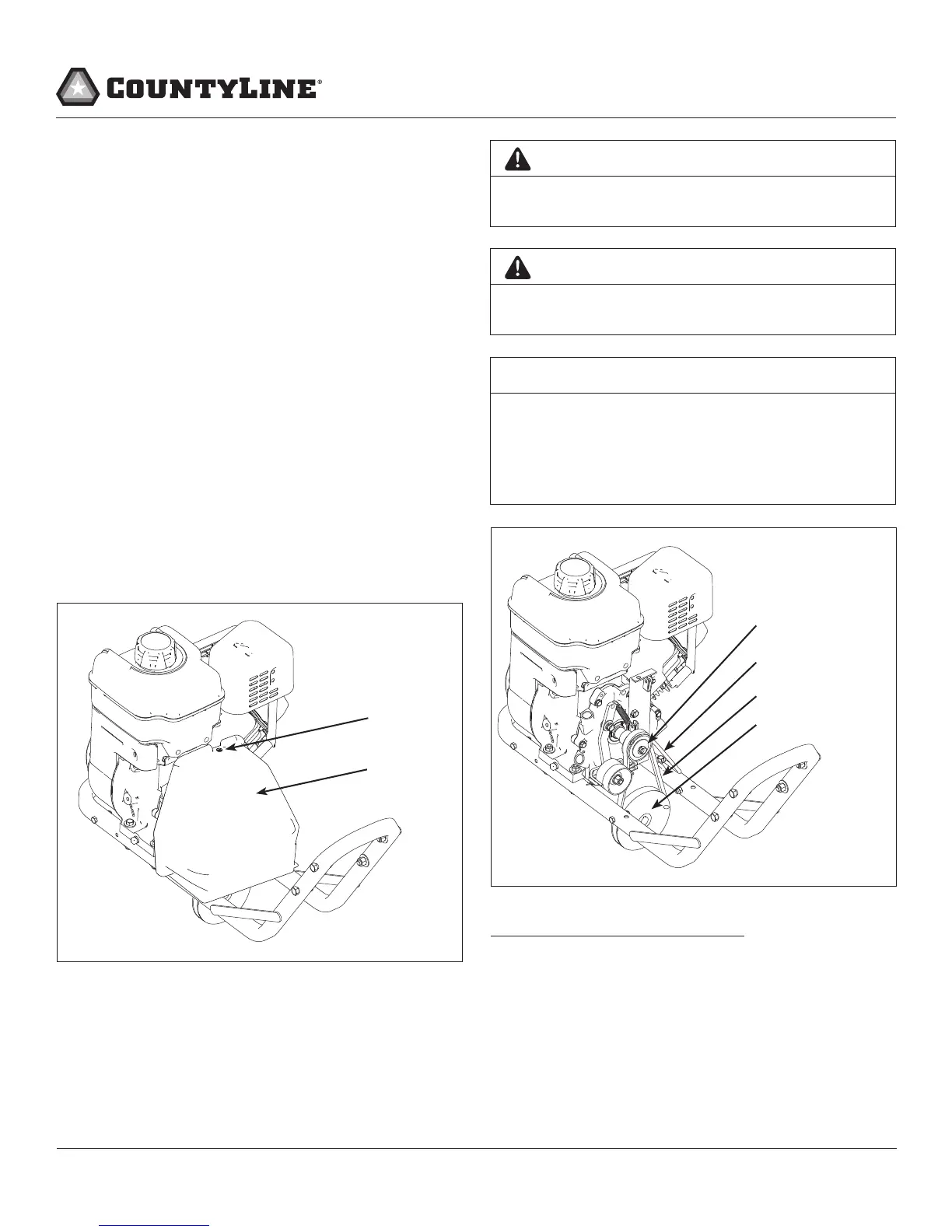

CHANGE FORWARD BELT
1. Turn o engine. Engine must be cool.
2. Remove spark plug wire and secure from spark plug.
3. Remove belt guard: SEE FIGURE 9
- unscrew and remove guard rivet.
- pull belt guard from machine.
4. Remove forward belt from engine pulley: SEE FIGURE 10
- gently pull the engine recoil rope to rotate the pulley.
- with the pulley turning, force the forward belt out of the
V-groove.
- slide the belt free of the engine pulley.
- pull the forward belt down and out of the way.
5. Install new forward belt:
- place forward belt in transmission pulley groove.
- gently pull the engine recoil rope to rotate the pulley
while forcing the forward belt into the V-groove.
6. Re-attach belt guard.
7. Attach spark plug wire.
CAUTION
DO NOT OPERATE TILLER BEFORE READING THE EN
GINE MANUAL PROVIDED IN THE PARTS PACKET.
WARNING
TEMPERATURE OF MUFFLER AND NEAR BY AREAS MAY
EXCEED 150° F. AVOID THESE AREAS.
IMPORTANT
ENGINE CAN OVERHEAT AND BECOME DAMAGED IF
DEBRIS BLOCKS THE COOLING SYSTEM OR ROTATING
SCREEN.
NEVER RUN ENGINE WITHOUT COMPLETE AIR CLEANER
INSTALLED ON ENGINE.
BELT REPLACEMENT PART #’S:
31315 (forward belt)
engine pulley
forward belt
transmission pulley
guard rivet
belt guard
FIGURE 9
FIGURE 10
forward belt guide
