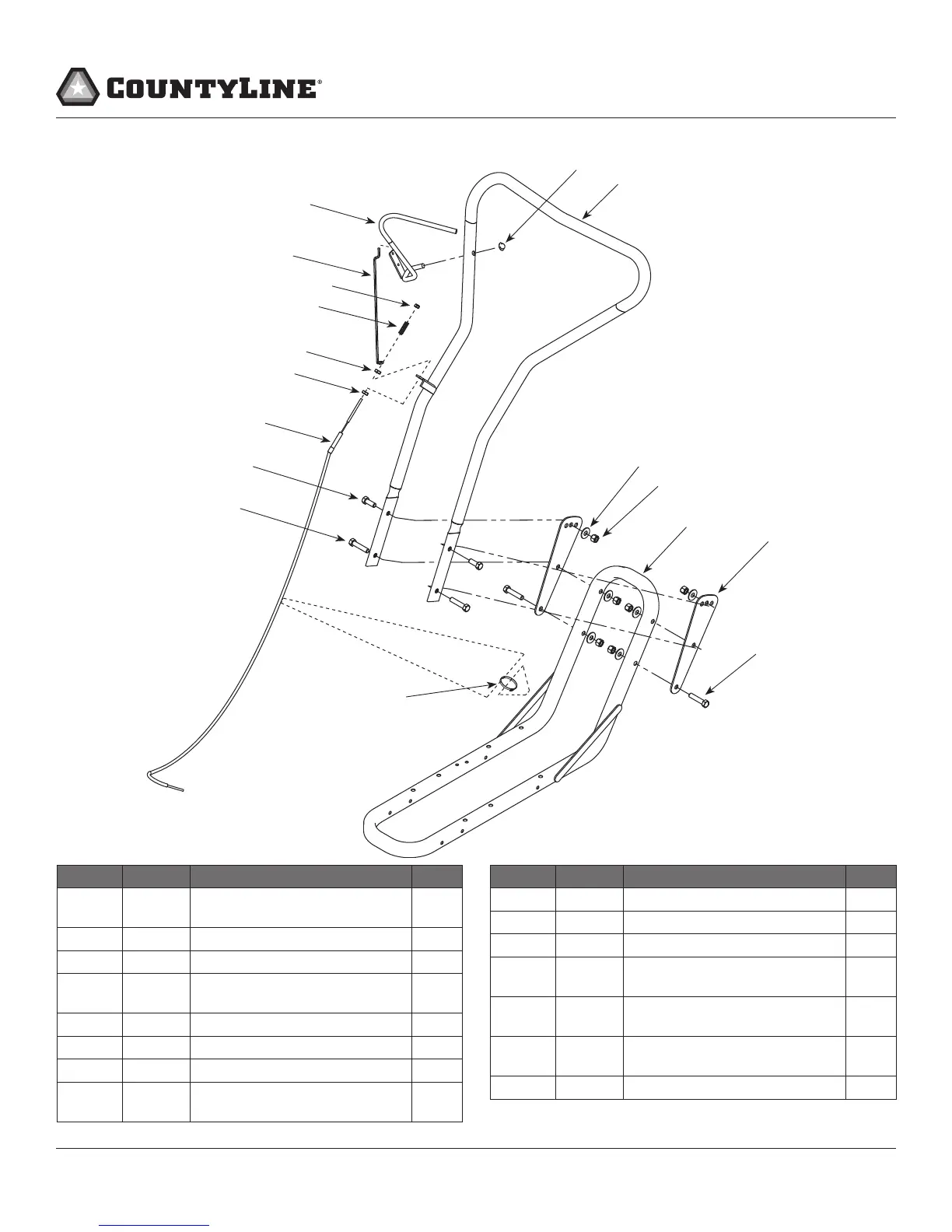

CRT HANDLEBAR AND HOOD PARTS AND PART LIST
8
7
7
9
11
10
12
13
6
5
2
14
3
4
2
1
15
REF. NO. PART # DESCRIPTION QT Y.
1 17493 WELDMENT, ENGINE/HANDLE
MOUNT
1
2 2001 BOLT 3/816 X 13/4 HH GR5 ZN 4
3 1662  6
4 17499 PLATE, HANDLEBAR EXTENSION
ADJUSTABLE
2
5 2102 BOLT 3/816 X 1 HH GR5 ZN 2
6 53630 CABLE, REAR TINE 39” SHEATH 1
7 53607 NUT 5/1624 HEX JAM 2
8 53620 SPRING COMPRESSION FORWARD
ARM RT
1
REF. NO. PART # DESCRIPTION QT Y.
9 53606  1
10 53613  1
11 17495 DEADMAN VINYL WELDMENT 1
12 3170 NUTPUSH 3/8” W/SAFETY WASHER
ZN
1
13 17497 WELDMENT VINYL, HANDLE BAR
LOOP REAR TINE
1
14 WF38 WASHER, FLAT 3/8 STANDARD
ZINC
6
15 ---- ZIP TIE 1
