Operator’s Manual
20969 CRT Tiller
10 For additional information email info@ardisam.com or call 800-345-6007 M-F 8-5
3. Insert one M10-1.5 x 45 bolt for each side in lower holes
of the extension pieces. The bolts will pass through the
lower hole of the lower handle bar mount. Put M10 at
washers onto bolts.
NOTE: Always put washers on the tubing side of bolts.
4. Hand tighten M10-1.5 nuts on each bolt.
5. Now assemble the handle bar to the handle bar
extensions. Note: Handle bar goes to the outside of the
handle bar extensions.
6. Insert one M10 -1.5 x 45 bolt for each side in lower holes
of the handle bar. Note: Bolts will be going through the
upper holes of the lower handle bar mount along with
the middle holes of the extensions. Put M10 at washers
onto bolts.
7. Hand tighten M10 -1.5 nuts on each bolt.
8. Insert one M10 -1.5 x 25 bolt for each side in upper holes
of the handle bar. Bolts will pass through upper holes of
the extensions. Put M10 at washers onto bolts.
9. Hand tighten M10-1.5 nuts on each bolt.
10. Tighten M10-1.5 nuts on each of the 6 bolts connecting
the handle bar, handle bar extensions and handle bar
mount together.
Attach Tine Side Shields
1. Locate side shields. SEE FIGURE 3
2. Take one side shield, raise it up against one side of the
tine guard and hold in place.
3. Place a M6 at washer onto three M6-1 x 12 bolts.
Insert these three bolts in each of the three holes of
the tine guard, making sure they also pass through the
side shield. Put an additional M6 at washers onto the
underside of the bolts.
NOTE: The side shield needs to be below the tine hood
when they are attached together.
4. Hand tighten M6-1nuts on each bolt.
5. Tighten M6-1 nuts on each of the three bolts connecting
the two side shields to the tine guard.
6. Repeat steps 2-4 for the second side shield.
Fill Engine Crankcase
1. Add oil according to engine manual. Do not overll.
Use a clean, high quality detergent oil. Use no special
additives with recommended oils. Do not mix oil with
gasoline. Oil level must be full. Check the oil level by
removing oil ll plug. Oil level should be up to the
bottom of the ll plug opening.
2. Always check oil level before starting engine. Refer to
engine manual for capacity and type of oil to use.

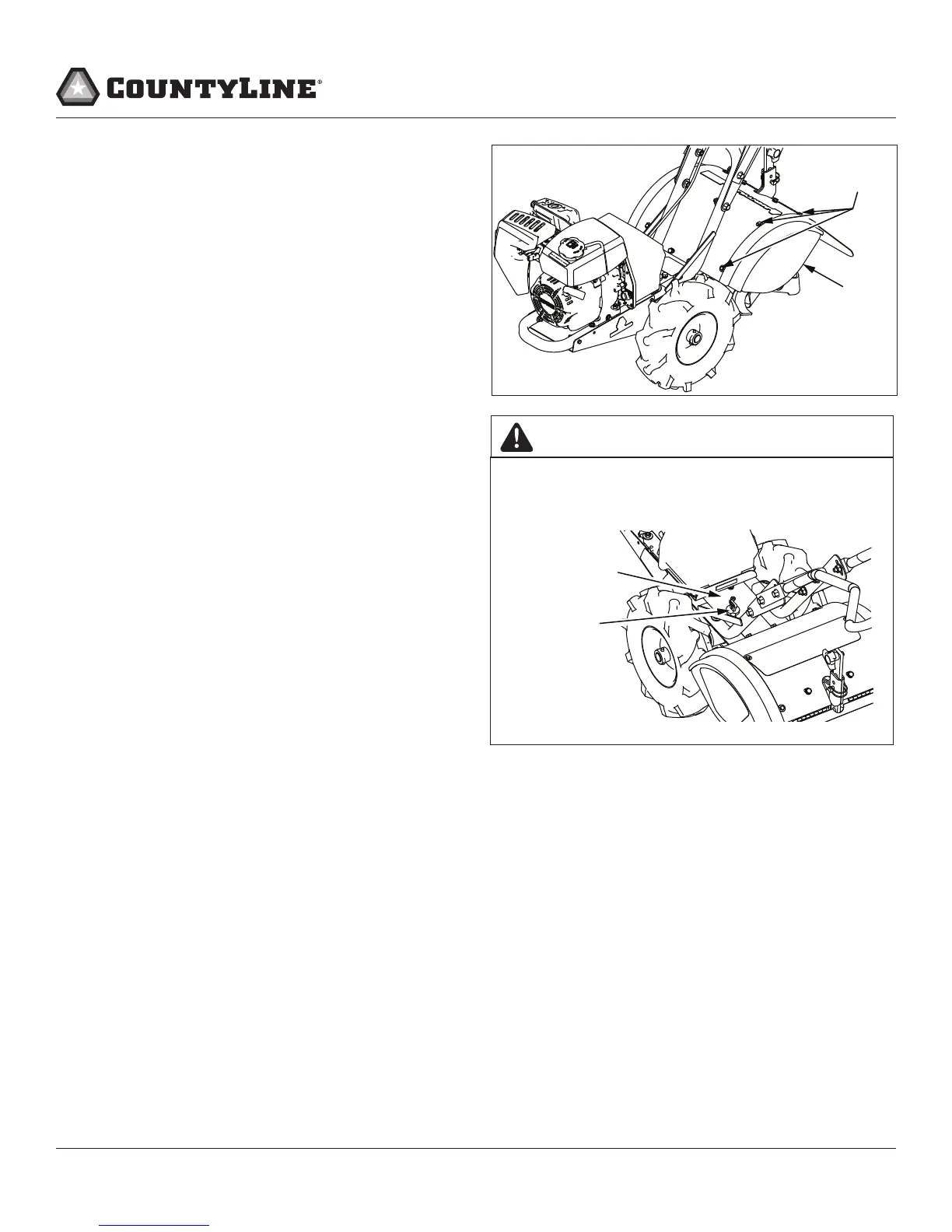

FIGURE 3
BOLTS &
WASHERS
SIDE
SHIELD
20972-0003R1
GEAR CASE
DIPSTICK
TRANSMISSION
COVER PLATE
20972-0005R1
DO NOT PUT ENGINE OIL IN TRANSMISSION.
TRANSMISSION LUBRICANT IS INSTALLED BY THE
MANUFACTURER.
CAUTION
