Operator’s Manual
20969 CRT Tiller

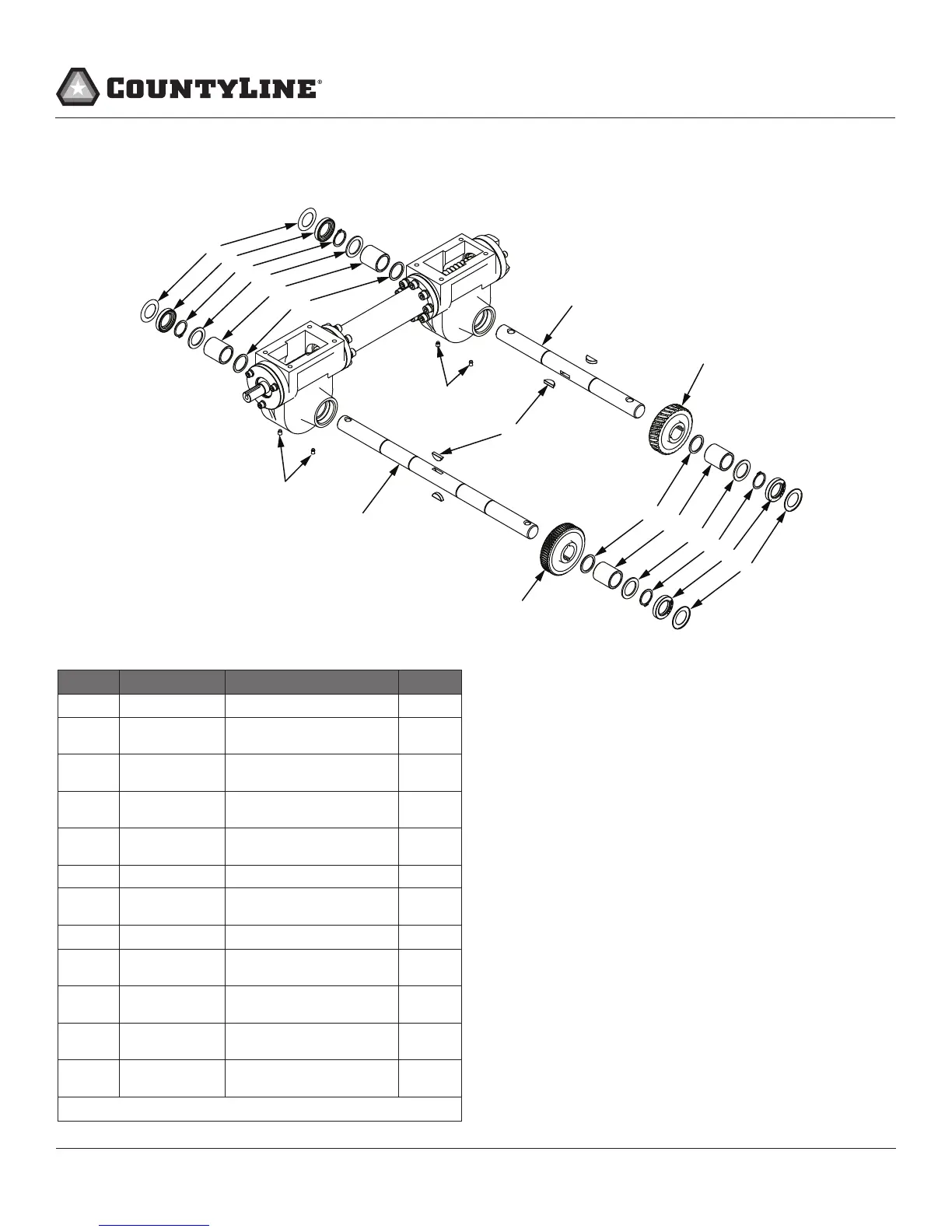

ILLUSTRATED PARTS BREAKDOWN - Transmission Detailed Breakdown
ITEM # PART # DESCRIPTION QTY
1 20130 COVER SHAFT SEAL NP 4
2 20135 SEAL 25MM SHAFT 40MM
BORE
4
3 20138 SNAP RING 25MM
EXTERNAL
4
4 * SHIM 37 MM X 26 MM X 2
MM
4
5 * BUSHING 25 X 32 X 36.5
MM NP
4
6 * SHIM 26 X 32 X 1.5 MM NP 4
7 * SETSCREW M6 X 1.0 X 8.5
SDP GR8.8 BLK OX
4
8 1500P113 KEY WOODRUFF 5X9X22 4
9 * SHAFT PIN STYLE WHEEL
DOUBLE KEY NP
1
10 * SHAFT PIN STYLE TINES
DOUBLE KEY NP
1
11 20128 GEAR BRONZE 25MM ID
30T 20.0 PA TWO KEYS
1
12 19982 GEAR BRONZE 25 MM ID
61T 20 PA TWO KEYS
1
* ORDER TRANSMISSION ASSEMBLY 20111
1
2
3
4*
5*
6*
7*
7*
1
2
3
4*
5*
6*
9*
10*
8
11
12
To Next Page
