Operator’s Manual
20969 CRT Tiller
28 For additional information email info@ardisam.com or call 800-345-6007 M-F 8-5
1
2
3
4
5
6
7*
(SEE BREAKDOWN
NEXT FIGURE)
8
9*
10
11
8
5
4
12
13
14
2
1
7*
(SEE BREAKDOWN
NEXT FIGURE)

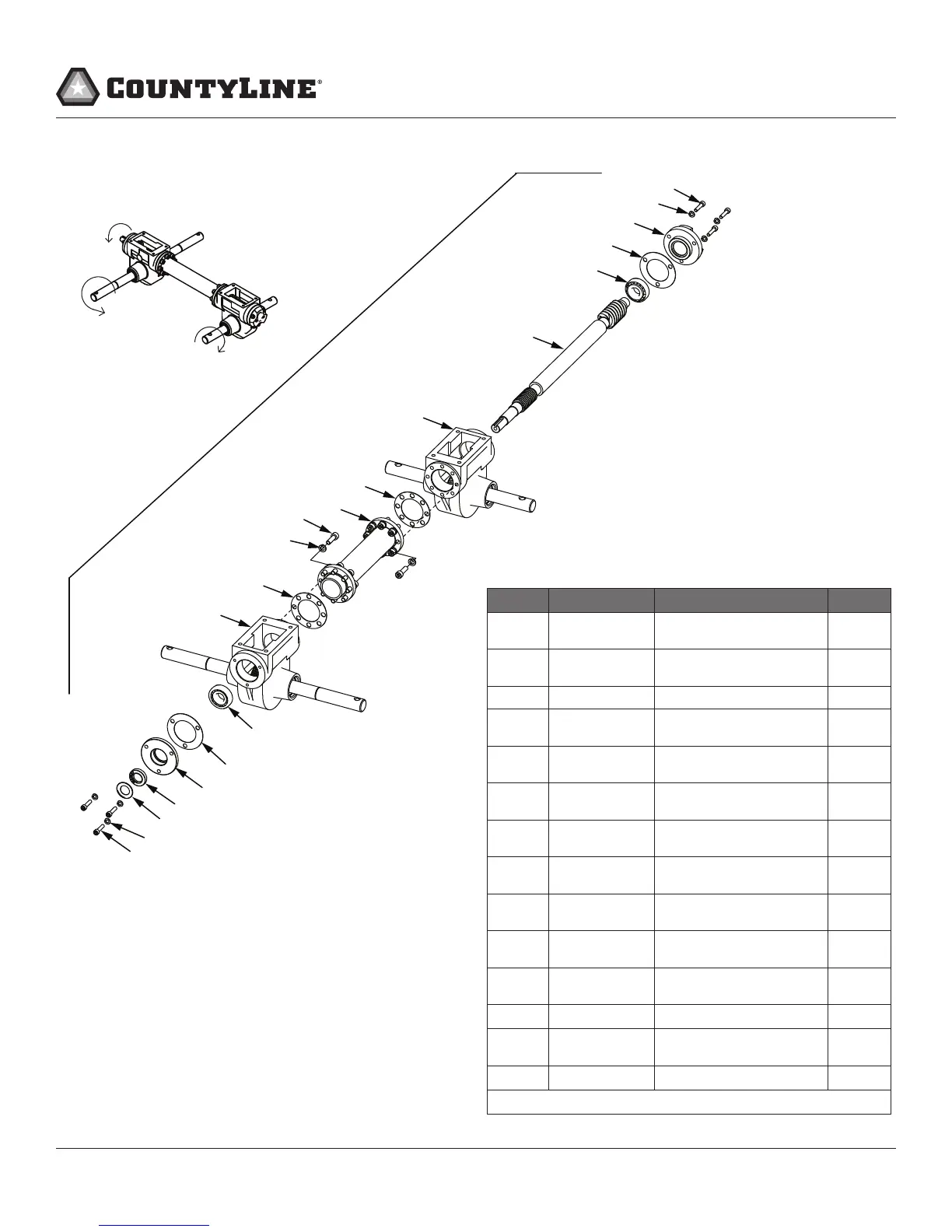

ILLUSTRATED PARTS BREAKDOWN - Transmission Detailed Breakdown
ITEM # PART # DESCRIPTION QTY
1 14375 BOLT M6 X 1.0 X 25 SLHH
GR8.8 ZN
6
2 18130 WASHER M6 X 1.5 SPRLCK
ZN
6
3 20133 REAR BEARING CAP NP 1
4 20132 GASKET BEARING CAP
FRONT REAR NP
2
5 20137 BEARING TAPERED 20MM
ID X 47MM OD
2
6 19993 SHAFT DRIVE CRT SHORT
54 C TO C 20 PA NP
1
7 * CAST REAR TINE TRANNY
HOUSING 8 HOLE NP
2
8 14028 GASKET REAR TINES PIPE
TO HOUSING 8 HOLE
2
9 * WELDMENT 2 FLANGED
PIPE REAR TINE NP
1
10 400022 BOLT M8 X 1.25 X 25 SHCS
GR 8.8 ZN
16
11 W1200114 WASHER M8 X 1.9 SPRLK
BLK OX HIGH COLLAR
16
12 20134 FRONT END CAP NP 1
13 20136 SEAL 20MM SHAFT 35MM
BORE
1
14 20131 COVER DRIVE SHAFT SEAL 1
* ORDER TRANSMISSION ASSEMBLY 20111
