20969 CRT Tiller
Change Forward Belt
1. Turn o engine. Engine must be cool.
2. Remove spark plug wire and secure from spark plug.
3. Remove belt guard as follows: SEE FIGURE 9
a. Unscrew and remove guard rivet.
b. Pull belt guard from machine.
4. Remove forward belt from engine pulley as follows: SEE
FIGURE 10
a. Gently pull the engine recoil rope to rotate the pulley.
b. With the pulley turning, force the forward belt out of
the V-groove.
c. Slide the belt free of the engine pulley.
d. Pull the forward belt down and out of the way.
5. Install new forward belt as follows:
a. Place forward belt in transmission pulley groove.
b. Gently pull the engine recoil rope to rotate the pulley
while forcing the forward belt into the V-groove.
6. Re-attach belt guard.
7. Attach spark plug wire.
NOTE: Forward Belt Replacement Part # 31315 .

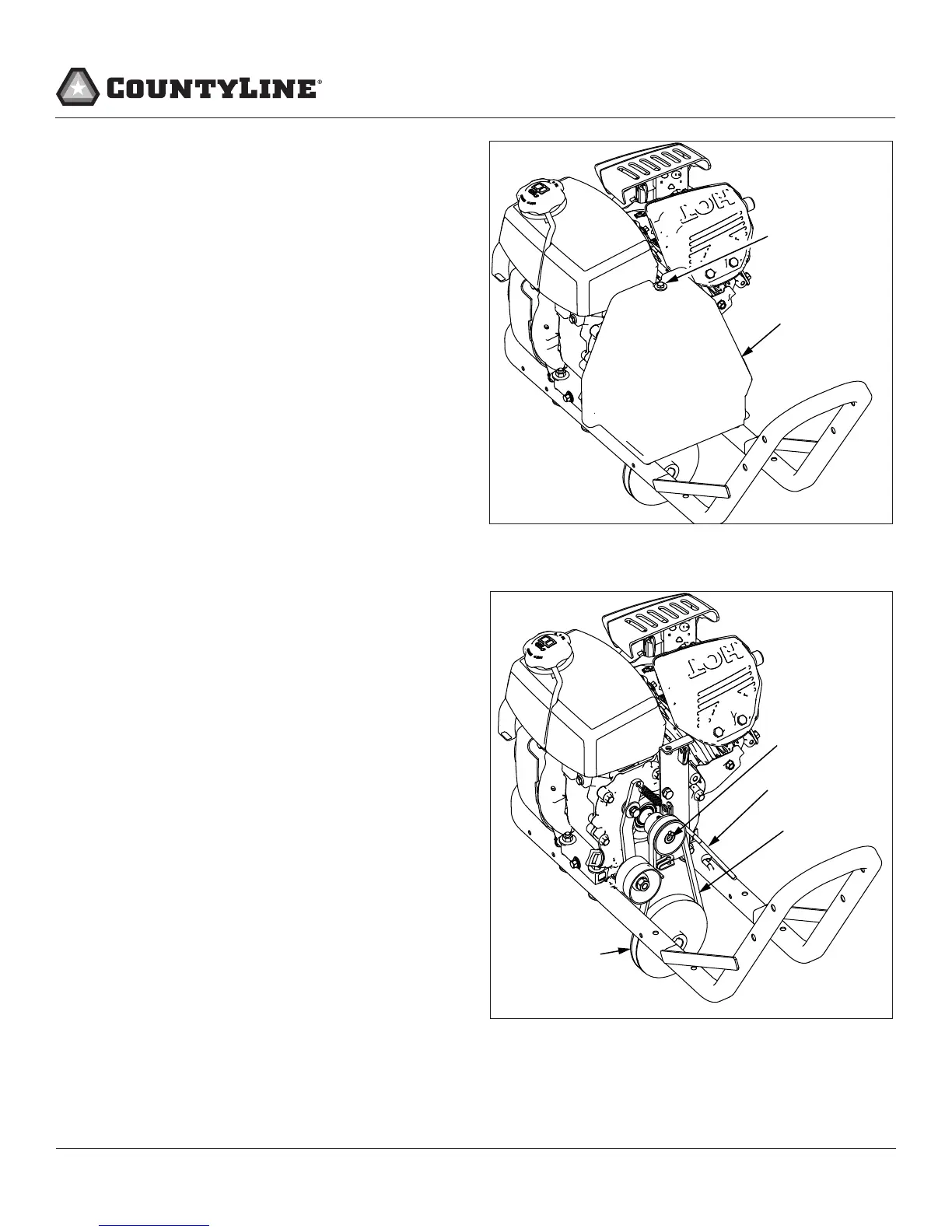

BELT GUARD
BELT GUARD
RETAINING BOLT
20972-0006R1
ENGINE PULLEY
FWD BELT GUIDE
FWD BELT
TRANSMISSION
PULLEY
20972-0007R1
FIGURE 9
FIGURE 10
