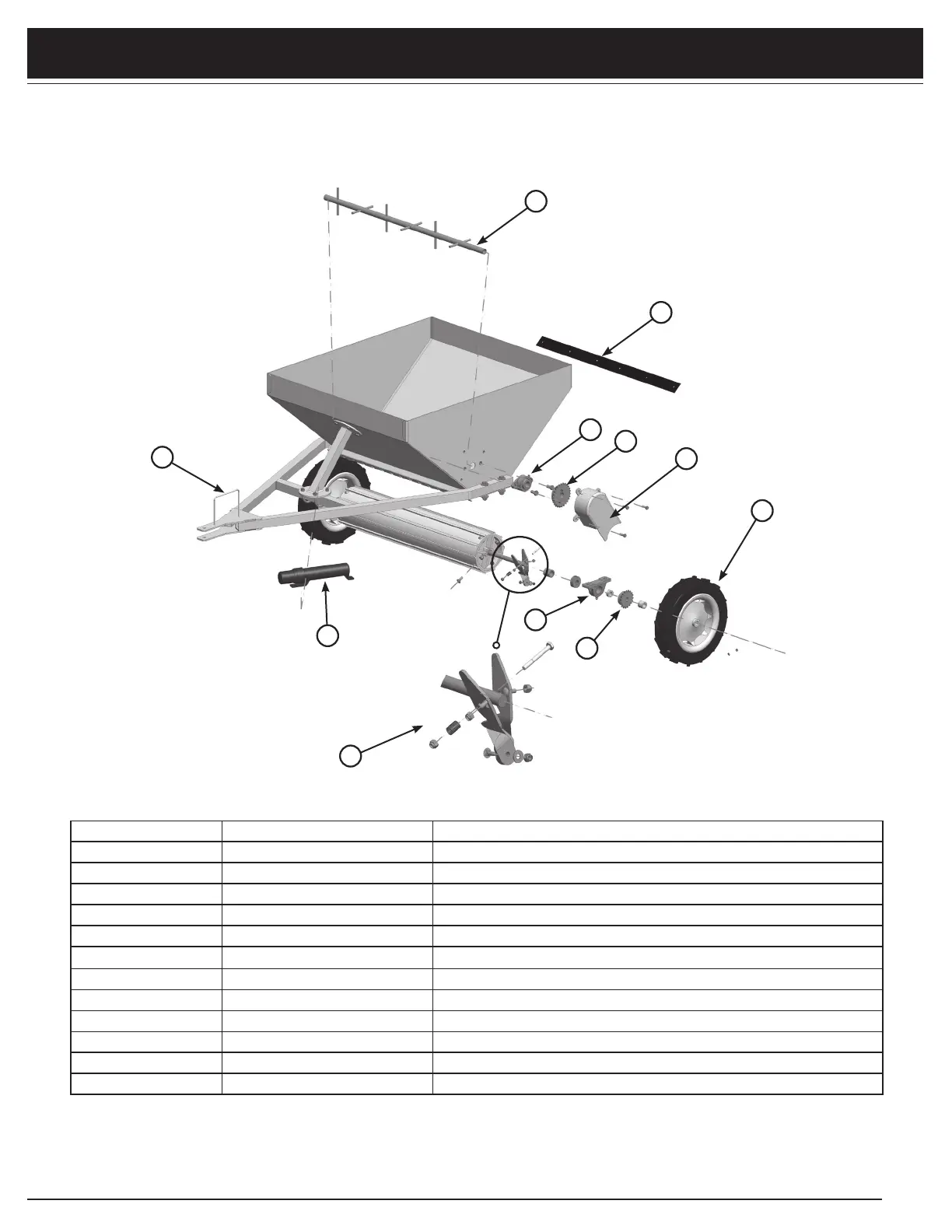

Parts Overall View
MS
Item Number Part Number Description
1 2000116 Agitator Bar
2 2000117 Tire/Wheel Combo
3 9000021 Axle Locking Mechanism w/ Hardware
4 2000118 Rubber Seal Strip
5 9000022 Handle w/ Hardware
6 2000119 Large Agitator Sprocket
7 2000120 Small Axle Sprocket
8 2000121 Chain Guard
9 2000122 Agitator Block Bearing
10 2000123 Axle Pillow Block Bearing
11 4000008 Decal Sheet (Not Pictured)
12 9000023 Small Manual Holder w/ Hardware
12
4
5
10
7
9
6
8
3
