Door and Back Cover Installation
Note: When installing Door and Back Cover, ensure
that pre-installed straps are not pulled out of Hem.
1. Position the Door Cover (16) near where you want
the front of the Portable Garage, and turn it so
that the zipper faces the outside of the Portable
Garage, and the warning tag faces inside.
2. Disconnect the Rail (4) from the
3‑Way Ridge Connector (A), and place the
gap at the top center of the Door Cover around
the Ridge Connector, as shown Figure O.
Note that the Door Cover’s flaps wrap
around the Rafters (3), and the strap is
positioned inside the frame. DO NOT ATTEMPT
TO INSERT ANY FRAMEWORK TUBING
INTO THE HEM ON THE COVER FLAPS.
4
Place strap
and flaps
inside frame.
3
A
4
Hem on
Cover flap.
A2
A1
A

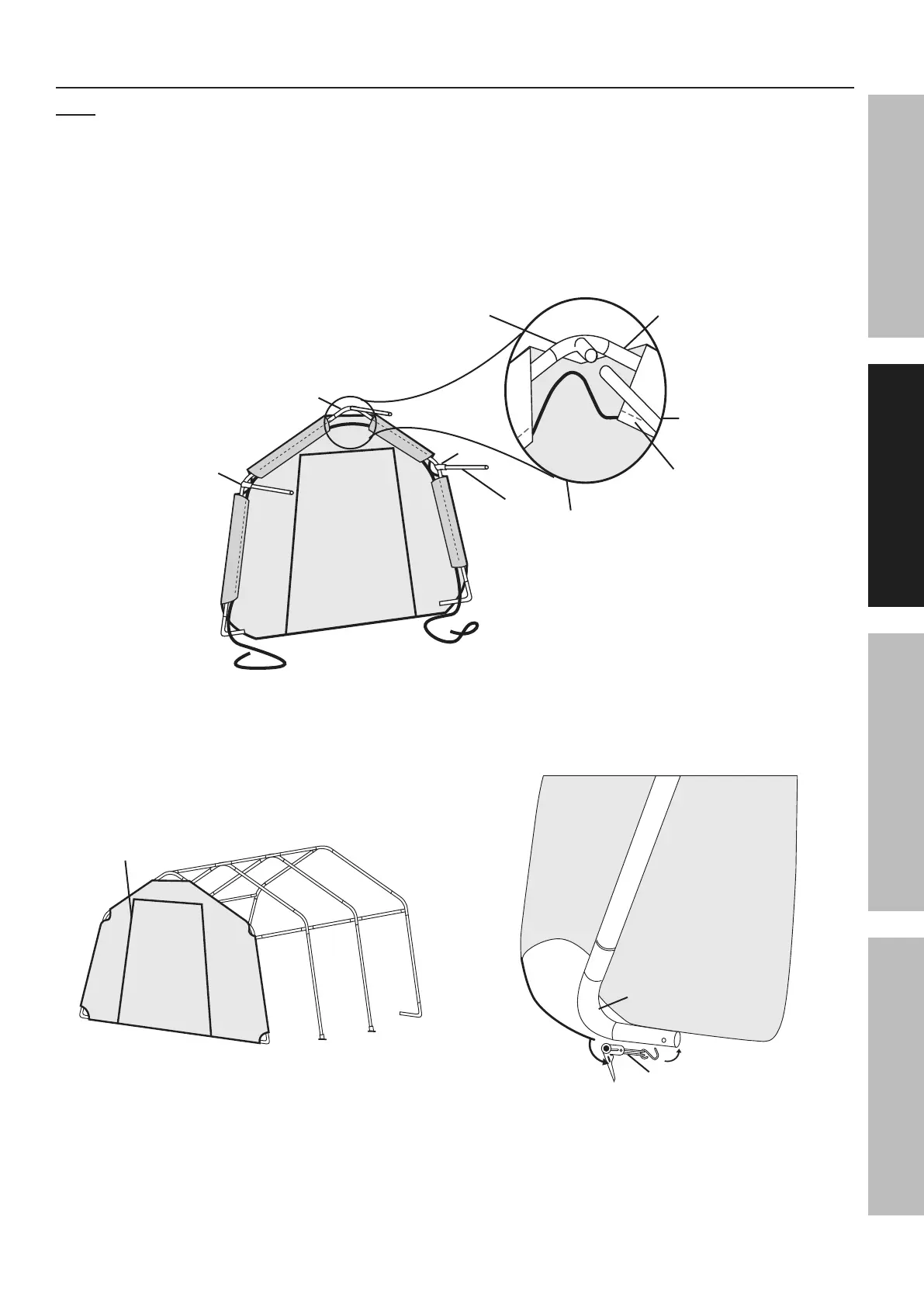

Figure O: Door Cover Installation
3. Reconnect the Rail securely to the
3‑Way Ridge Connector.
4. Repeat step #2 for the
3‑Way Side Connectors A/B (A1, A2)
so that the Door Cover looks as shown
in Figure O and Figure P.
Zipper
Figure P: Wrap Around Side Connectors
5. Use two Ratchet Tie‑Downs (8) to attach the
Door Cover to the Corner Legs (6); see Securing
Ratchet Tie‑Downs on page 10 and Figure Q.
8
6
Figure Q: Securing Door Cover
6. Repeat steps #1 – 5 above to install the Back
Cover (17) to the other end of the Portable Garage.
