Wheel alignment system SetupWizzard 39

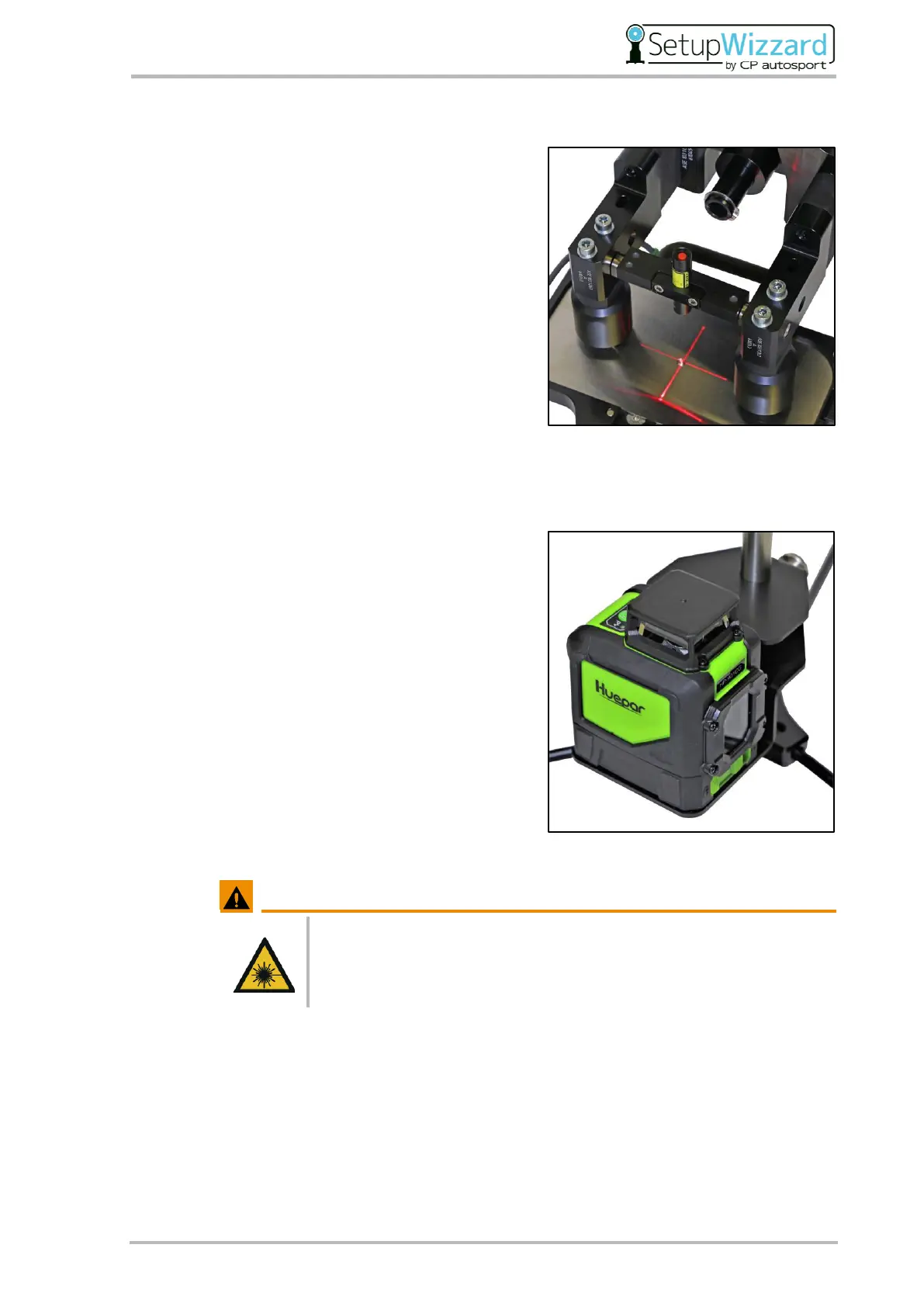

8.2.2.1 Using the positioning laser (optional)
The positioning laser is installed in a magnetic
holder. Place the holder with the laser (laser
optics pointing downward) on the centering
pins provided at the stand of the setup wheel.
The centering pin and laser holder must be
clean and free of chips in order to ensure
optimum measurement results. Switch on the
laser and position the measuring platform
centrally under the laser cross. Switch off the
laser and repeat the process with the
remaining three platforms.
8.2.3 Leveling the measuring platforms
Before the vehicle can be lowered onto the
measuring platforms, the platforms must form
a horizontal, level surface. The leveling laser
is used to display this surface. Use the stand
to position it centrally between the four
measuring platforms on a solid and level
surface. Do not move the laser when aligning
the measuring platforms! The leveling laser is
operated via a one-button control. However,
before you switch on the laser, unlock it. To do
this, slide the locking mechanism under the
vertical optics into the freely moving position.
Then briefly press the Power button once each
time to switch on, toggle cross lines, vertical
line or horizontal line, switch off. When
operating the laser, make sure that the laser pendulum does not touch the stop.
Injury hazard due to laser beams
Laser beams can cause eye injury.
• Do not stare directly into the laser beam.
