Power Panel

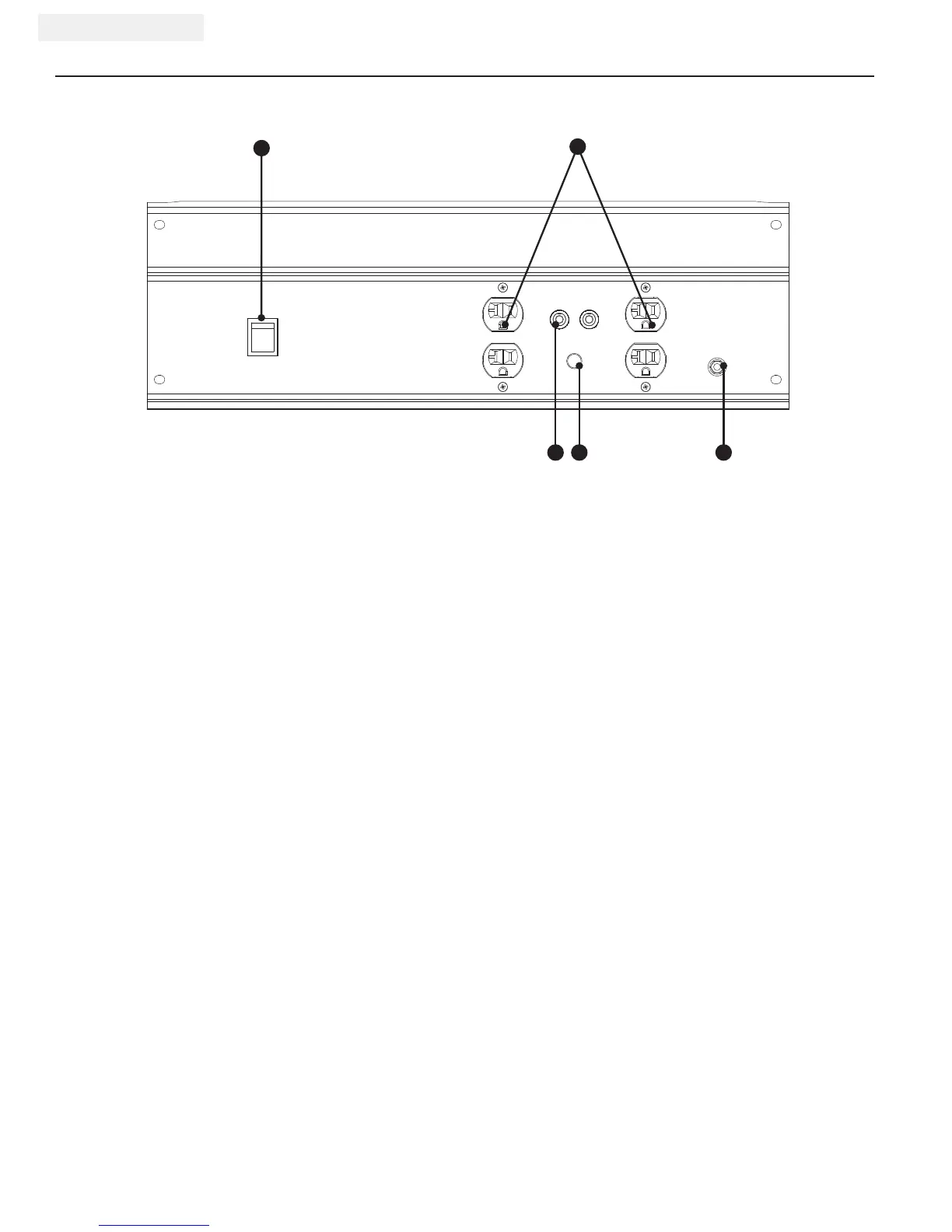

CONTROLS AND FEATURES
(1) Engine Switch – Used to start or stop the
generator.
(2) 120 Volt AC, 20 Amp Duplex (2)
(NEMA 5-20R) – May be used to supply electrical
power for the operation of 120 Volt AC, 20 Amp,
single phase 60 Hz electrical loads.
(3) Circuit Breakers – Protects the generator against
electrical overloads. Press button reset.
(4) AC Output Indicator – Indicates when power is
being delivered to receptacle.
(5) Ground Terminal – Consult an electrician for local
grounding regulations.
2
1
3 54
