Vehicle Installation Guide / COR IBR9x0, IBR11x0, IBR1700
IBR900
IBR1700
IBR1100
Antennas

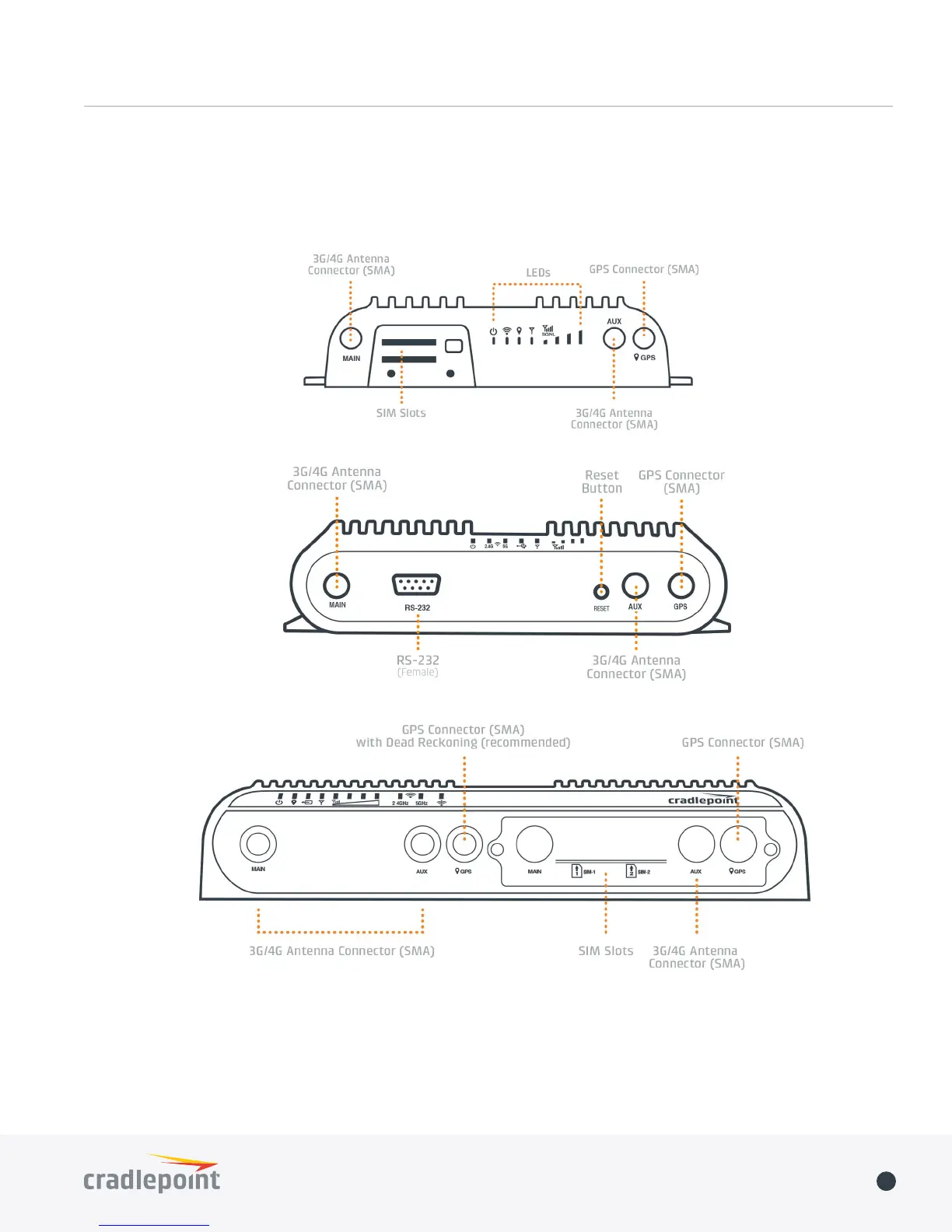

Antennas are not included in the product package because of the diverse needs of customers. The COR Series mobile
routers have two connectors for 3G/4G modem antennas (SMA) and one connector for GPS (SMA):
Addtionally, the COR IBR900 and IBR1100 has two connectors for dual-band dual-concurrent 2.4/5 GHz WiFi (RSMA).
The IBR1700 has six RSMA connectors supporting a mix of dual-band and simultaneous tri-band WiFi.
See the Cradlepoint antenna accessories page for recommended options for antennas. Also see the Antenna Ordering
and Installation Guide, available as a PDF from the antenna and router product pages.
