16
Once there is approximately 1/2" deflection
in the belts when applying moderate
pressure using your finger, re-tighten the
hex nuts.

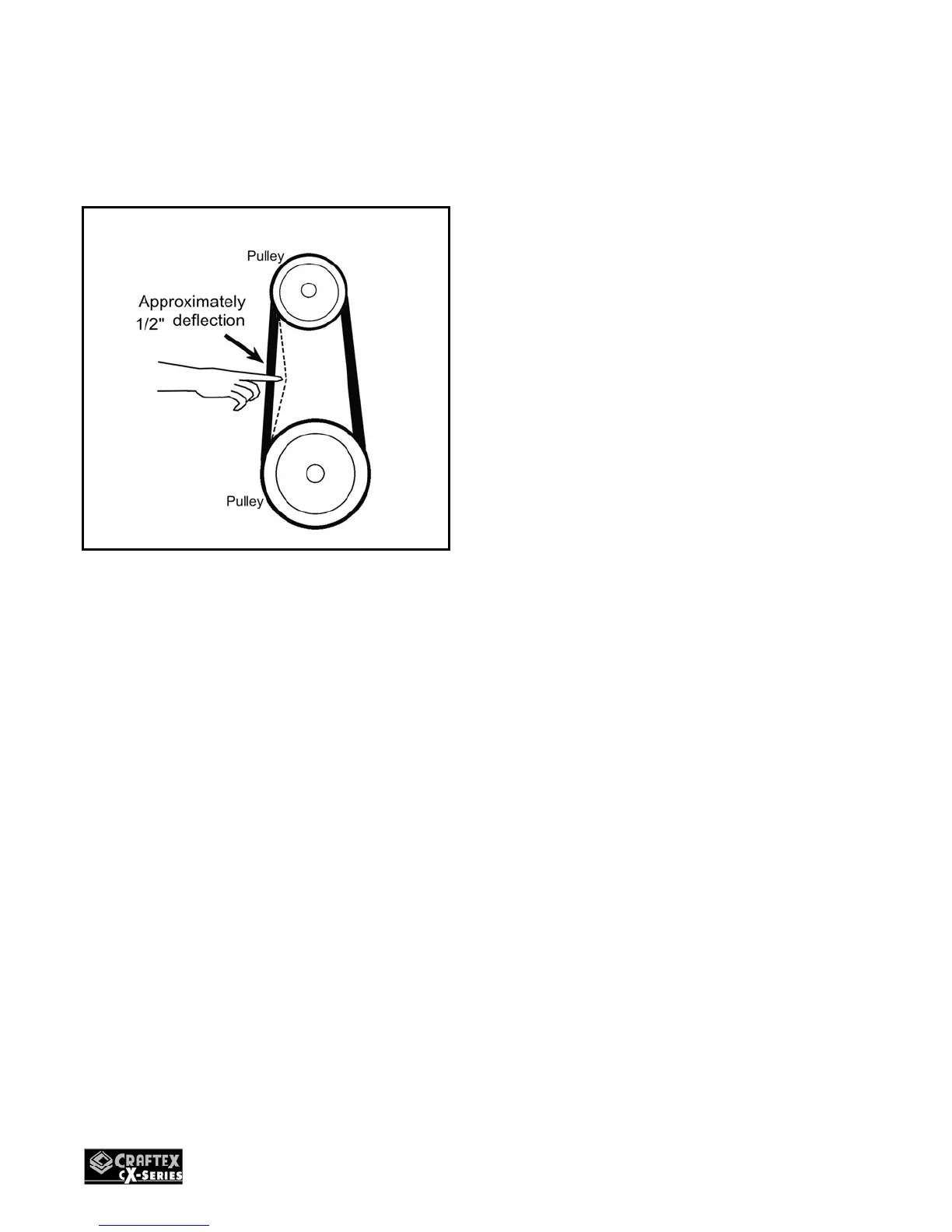

Figure-20 Correct tension on the V-belt
REPLACING THE V-BELT
Turn the table saw switch “OFF” and
remove the cord from the power source.
Remove the motor cover from the side of
the machine.
Set the blade to 0° on tilt scale and raise
the blade around 2" above the table.
Loosen the hex bolt shown in figure-19 and
remove belt.
Install the new belt onto the pulleys.
Lower the motor until it begins to pull the
belt down with it.
When the belt is correctly tensioned, tighten
the hex nut and close the motor cover.
