page 6
Note: Only remote controls approved for DAMP locations can
be used with this fan.
6. Wiring.
WARNING: Turn off circuit breakers to current fixture
from breaker panel and be sure switch is turned to the
OFF position.
CAUTION: Be sure outlet box is properly grounded and that
a ground wire (GREEN or Bare) is present.
Make sure all electrical connections comply with Local
Codes or Ordinances and the National Electrical Code. If
you are unfamiliar with electrical wiring or if the
house/building wires are different colors than those
referred to in the diagram to the right, please use a
qualified electrician.
Note: Excess lead wire length from the fan can be cut to the
desired length and then stripped.

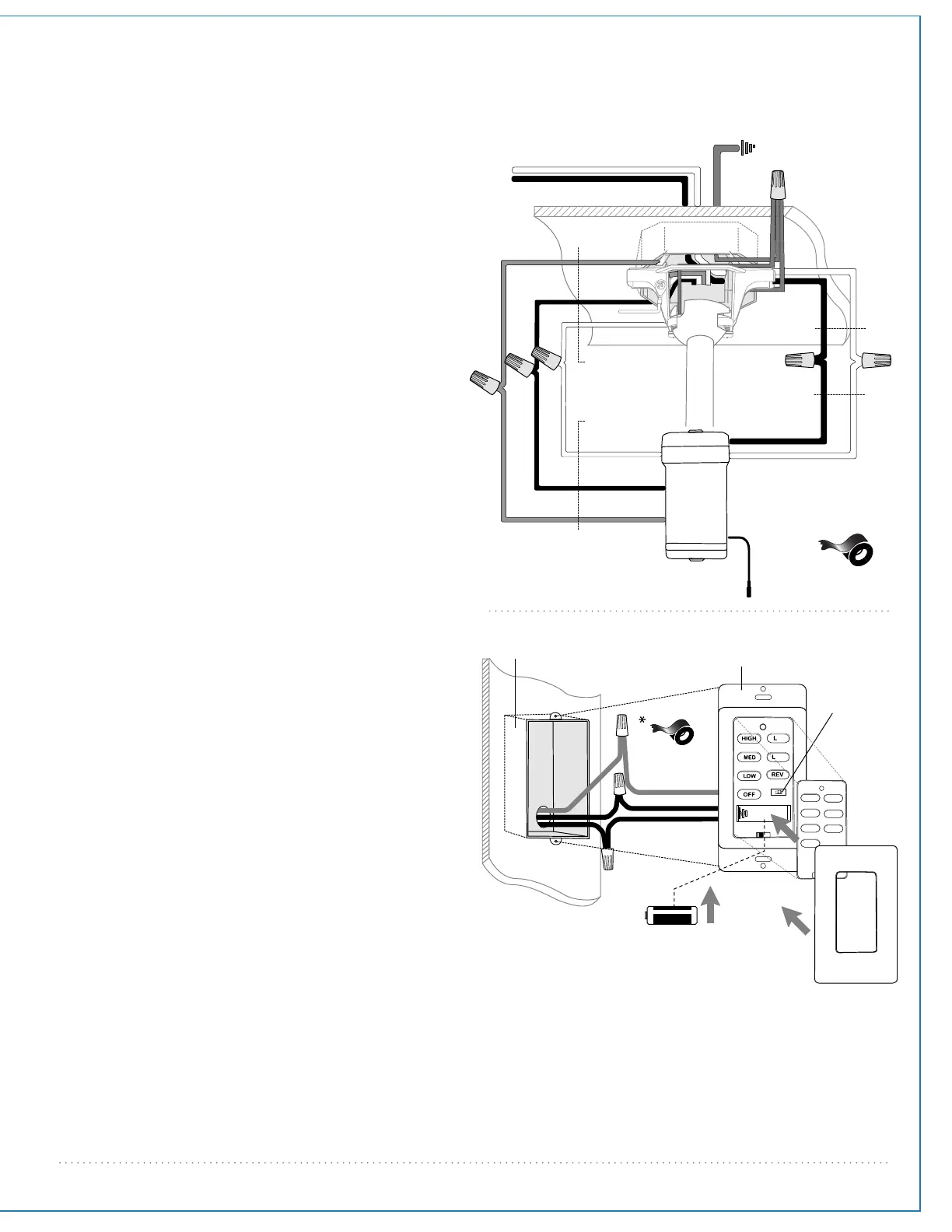

When downrod is secured in place on the hanging
bracket, WIRE THE RECEIVER with wire connectors
provided as shown in diagram at right.
Tip: While you are wiring, keep in mind that wires must
not obstruct receiver from sliding into hanging bracket.
* Wrap each wire connector separately with electrical
tape as an extra safety measure.
Gently insert receiver (flat side up) into hanging bracket
and carefully push taped wire connectors into outlet
box. Let antenna rest outside of hanging bracket.
[PLEASE NOTE: Wall and/or handheld remote control
must be used for fan to operate. If you do not wish to use
the wall control, please proceed to Section 7 to continue
with fan installation.]
To install wall control, remove existing wall switch. Wire
one of the wall controls with wire connectors provided
as shown in diagram at right.
*Wrap each wire connector separately with electrical
tape as an extra safety measure. Gently push wires and
taped wire connectors into outlet box.
Install one 12-volt battery (included) in wall control.
IMPORTANT: Wall control will not function unless
battery is installed.
Since this fan comes with a LED light kit, the dimmer
switch (labeled DIM and ON) has been pre-set to the
"ON" position (DIM). If you do not wish to have
dimming capability, please move the switch to the
"OFF" position (ON).
Select a faceplate (almond or white) and press firmly
onto front of wall control. Attach wall control to outlet
box and secure with screws from original wall switch.
Attach plate (included) to wall control using 2 screws
provided with the wall control.
(wiring for wall control)
black (OUT to fan)
green
black
(AC IN from
breaker box)
black
(TO POWER supply)
black
green/
bare
ground
green/
bare
ground
outlet box
wall
control
face-
plate
12V battery
dimmer
switch
plate
11
-
DIM ON
22
-
(wiring for receiver)
ground (green
or bare)
white supply wire
black supply wire
black
black
white
blue
blue
white
from receiver
black
AC IN L
AC IN N
white
white
ground (green
or bare)
from fan
from receiver
antenna
from ceiling
receiver
black
*
