Craftmade Teana - Canopy Assembly; Blade Assembly; Light Kit Assembly

page 8

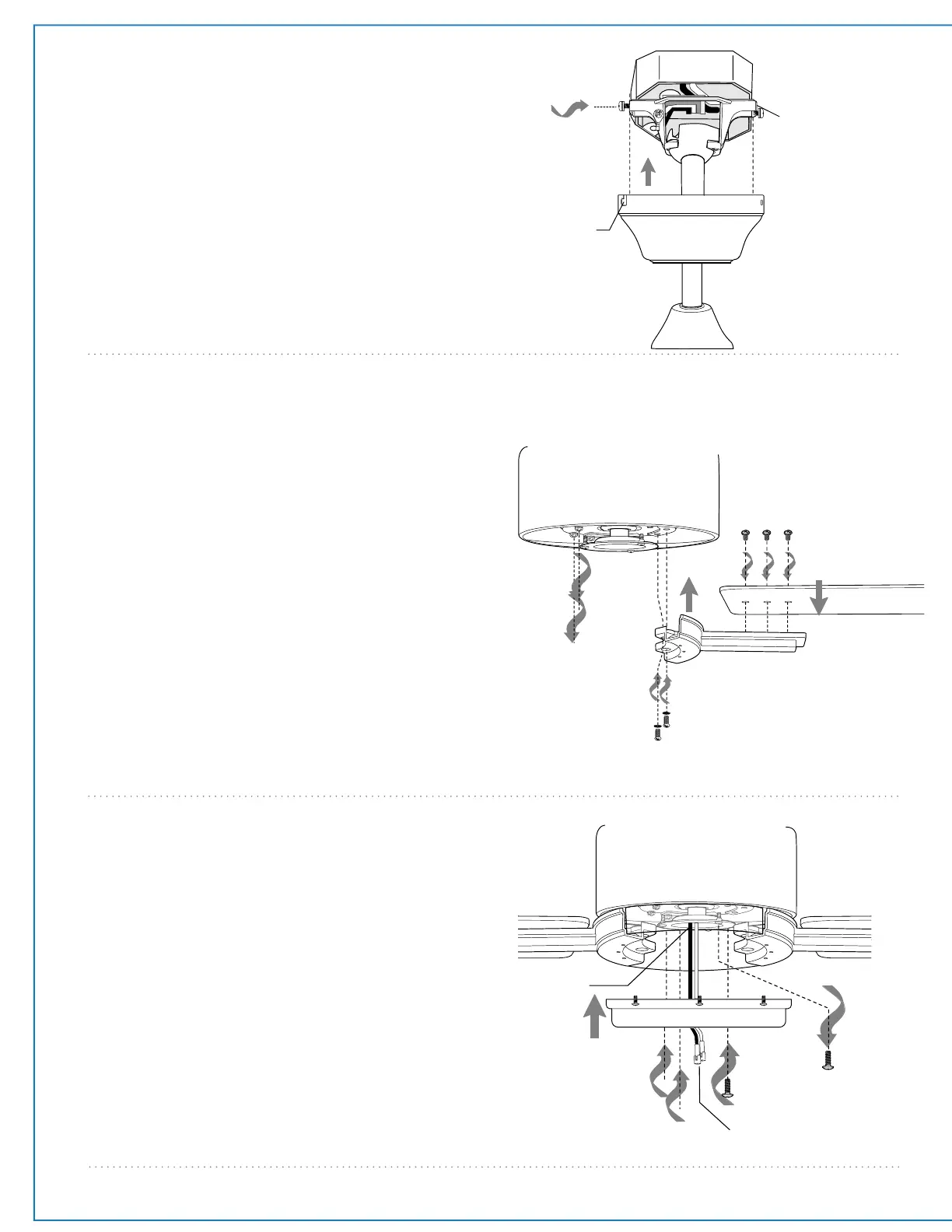

10. Blade Assembly.
9. Canopy Assembly.
11. Light Kit Assembly.
Remove 1 screw from motor plate on
underside of motor housing and partially
loosen the other 2 screws.
Align slotted holes in fitter plate with
loosened screws in motor plate, allowing
molex connectors to come through center
hole in fitter plate. Twist fitter plate to lock.
Re-insert screw that was previously removed
and securely tighten all 3 screws with a
Phillips screwdriver.
fitter plate
molex
connections
motor plate
motor
housing
Temporarily raise canopy to hanging bracket to
determine which 2 screws in hanging bracket align
with slotted holes in canopy, and then lower
canopy and partially loosen these 2 screws. Remove
the other 2 screws/lock washers and set aside.
Now, lift canopy to hanging bracket again, aligning
slotted holes in the canopy with loosened screws in
hanging bracket. Twist canopy to lock. Re-insert the
other 2 screws/washers and secure all screws with
a Phillips screwdriver.
canopy
hanging bracket
slotted
hole
motor housing
blade arm
blade
blade attachment
screws and washers
WARNING: To reduce the risk of serious bodily
injury, DO NOT use power tools to assemble the
blades. If overtightened, blades may crack and
break.
Time Saver: Washers for blade screws can be set
on each blade screw prior to installing blades.
Locate 12 blade attachment screws and washers
in hardware pack. Hold blade arm up to blade and
align holes. Insert 3 blade attachment screws
(along with washers) with fingers first and then
tighten screws securely with a Phillips screwdriver.
Repeat procedure for the remaining blades.
Remove blade arm screws and lock washers from
underside of motor. Align blade arm holes with
motor screw holes and attach blade arm with lock
washers and blade arm screws. Before securing
screws permanently, repeat this procedure with
remaining blade arms. Secure all screws.
Note: Tighten blade arm screws twice a year.
blade arm screws/
lock washers
