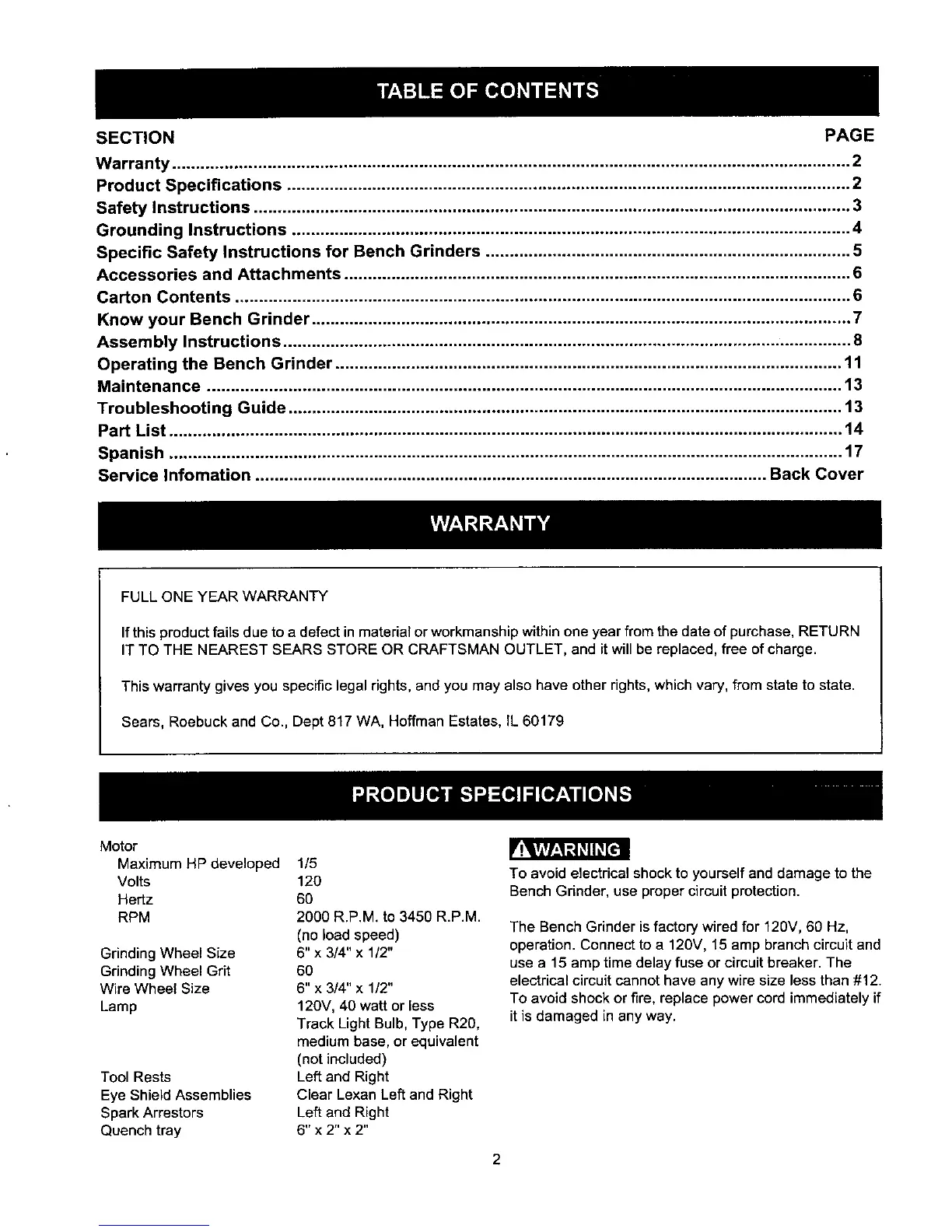

SECTION PAGE
Warranty ............................................................................................................................................... 2
Product Specifications ....................................................................................................................... 2
Safety Instructions .............................................................................................................................. 3
Grounding Instructions ...................................................................................................................... 4
Specific Safety Instructions for Bench Grinders ............................................................................. 5
Accessories and Attachments ........................................................................................................... 6
Carton Contents .................................................................................................................................. 6
Know your Bench Grinder .................................................................................................................. 7
Assembly Instructions ........................................................................................................................ 8
Operating the Bench Grinder ........................................................................................................... 11
Maintenance ...................................................................................................................................... 13
Troubleshooting Guide ..................................................................................................................... 13
Part List .............................................................................................................................................. 14
Spanish .............................................................................................................................................. 17
Service Infomation ............................................................................................................ Back Cover
FULL ONE YEAR WARRANTY
If this product fails due to a defect in material or workmanship within one year from the date of purchase, RETURN
IT TO THE NEAREST SEARS STORE OR CRAFTSMAN OUTLET, and it will be replaced, free of charge.
This warranty gives you specific legal rights, and you may also have other rights, which vary, from state to state.
Sears, Roebuck and Co., Dept 817 WA, Hoffman Estates, IL 60179
Motor
Maximum HP developed
Volts
Hertz
RPM
Grinding Wheel Size
Grinding Wheel Grit
Wire Wheel Size
Lamp
Tool Rests
Eye Shield Assemblies
Spark Arrestors
Quench tray
1/5
120
60
2000 R.P.M. to 3450 R.P.M.
(no load speed)
6" x 3/4" x 1/2"
60
6"x 3/4" x 1/2"
120V, 40 watt or less
Track Light Bulb, Type R20,
medium base, or equivalent
(not included)
Left and Right
Clear Lexan Left and Right
Left and Right
6"x 2" x2"
To avoid electrical shock to yourself and damage to the
Bench Grinder, use proper circuit protection.
The Bench Grinder is factory wired for 120V, 60 Hz,
operation. Connect to a 120V, 15 amp branch circuit and
use a 15 amp time delay fuse or circuit breaker. The
electrical circuit cannot have any wire size less than #12.
To avoid shock or fire, replace power cord immediately if
it is damaged in any way.
