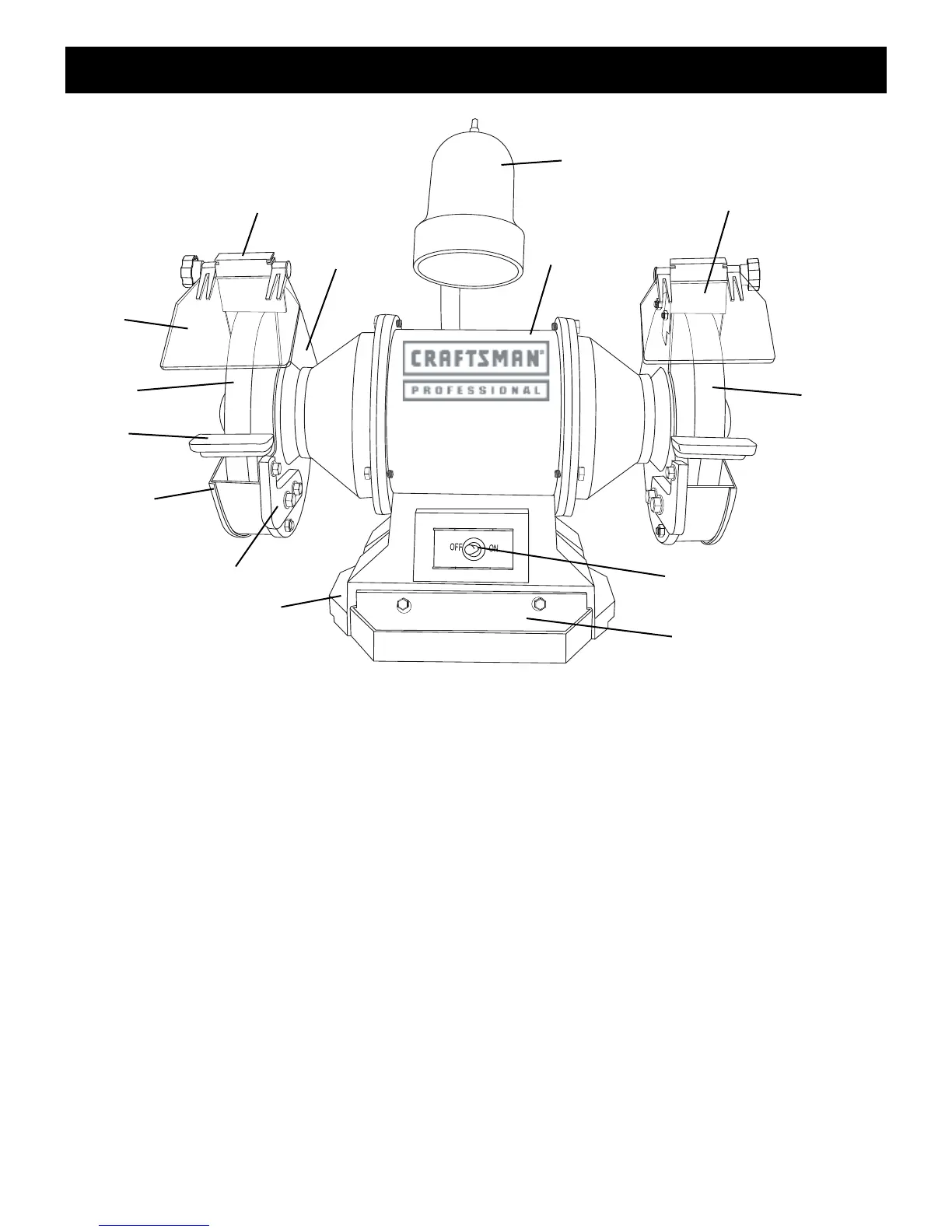

KNOW YOUR BENCH GRINDER
1. WHEEL GUARD - Covers the grinding wheels and
protects against accidental contact.
2. WHEEL COVER - Covers the grinding wheels and
provides access for routine maintenance.
3. MOTOR HOUSING - Contains the electrical motor.
4. EYESHIELD MOUNTS - Supports the eyeshields.
5. EYESHIELDS - Protective Lexan see-thru shields
to prevent any loose debris from contacting the
operator
.
6. FLEXIBLE
WORK
LIGHT
- Provides assistance to
the operator for grinding operations.
7. SP
ARK
ARREST
ORS
-
Prevents hot sparks and
debris from contacting the operator.
8. TOOL REST ADJUSTABLE SUPPORTS - Lets the
operator position the tool rest closer to the wheel as
the wheel decreases in diameter due to wear
.
9. T
OOL
RESTS
-
Used to support the workpiece
that is being ground. Adjustable to provide angled
surfaces.
10. A) GRINDING
WHEEL
120 GRIT
- Used to remove
light material from workpiece.
10. B) GRINDING WHEEL 60 GRIT - Used to remove
heavy material from workpiece.
11. ON / OFF SWITCH - Used to turn “ON” and turn
“OFF” the grinder.
12. WHEEL DRESSER - Used to clean and smooth
surface of the 8" Grinding Wheel (not shown).
13. QUENCH TRAY - Used to cool workpiece after
grinding.
14. MOUNTING
P
AD
- Used to secure the grinder to a
workbench or suitable work surface.
15. GRINDING WHEEL IDENTIFICATION LABEL -
Provides information on wheel size, grit and maxi-
mum RPM. Must be left on to distribute the load of
tightening the Lock Nuts (not shown).
16. ARBOR BUSHING - Used when wheels have an
oversized wheel bore (not shown).
17. FLANGES - Used to secure the grinding wheels to
the grinder and distribute the load of the Lock Nuts
(not shown).
18. LOCK
NUT
- Used to secure the grinding wheels to
the grinder (not shown).
8
5
10B
9
2
14
4
1
11
13
10A
7
3
6
