ASSEMBLY OF THE FRONT STOP BLOCKS TO
THE DOVETAIL BASE
1 Assemble the front stop blocks to the front of the dove-
tail base, at each end, using #10-32 x 5/8" long flathead
machine screws, 13/64" I D x 9/16" O D washers, and
#!0-32 hex nuts, as shown in Figure 15
2 Make sure that the open rib portion fits into the slot in
the front of the base The stop block will fit into the slot in
one position only
3 Tighten the screw securely onto the nut
4 Assemble the other front stop block to opposite end of
the dovetail base in the same manner

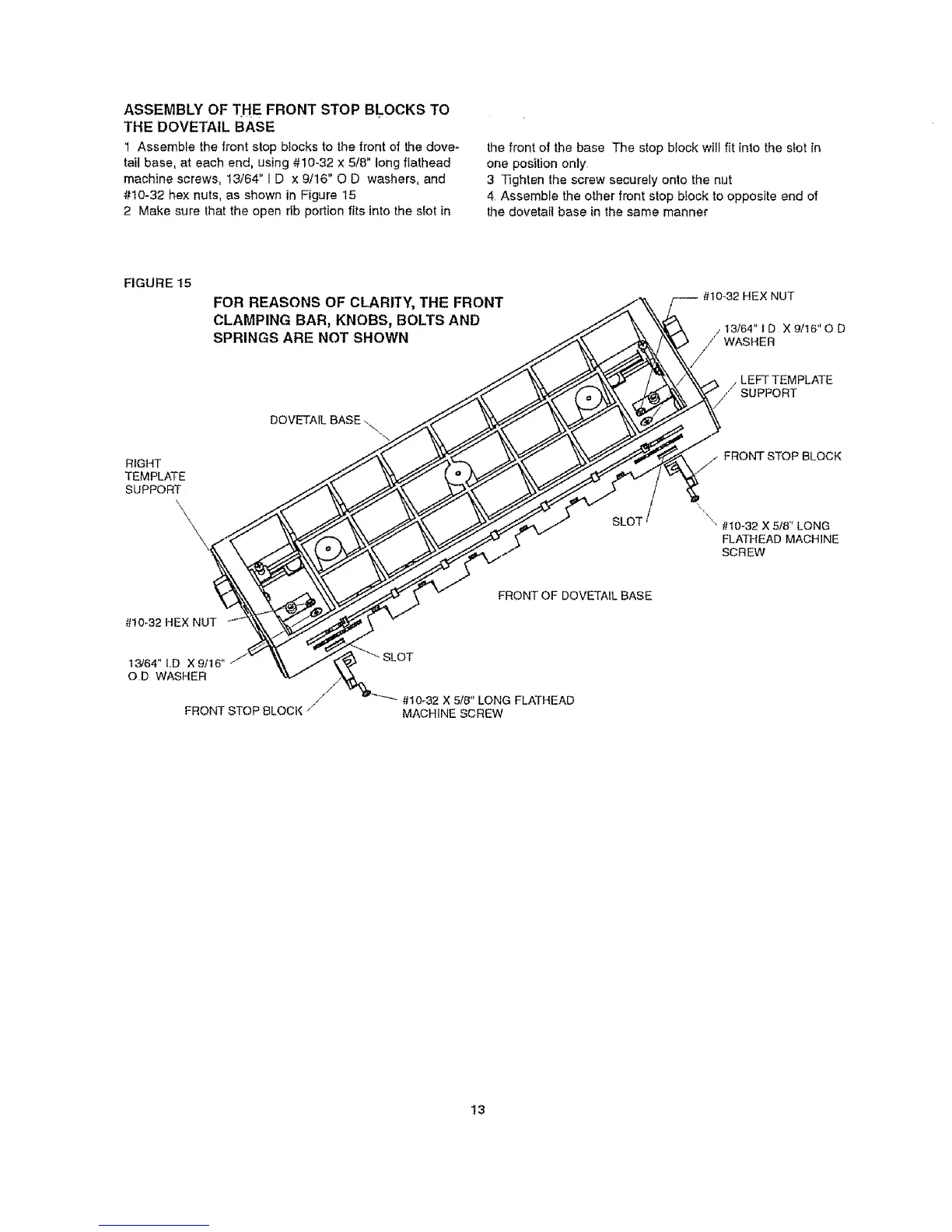

FIGURE 15
FOR REASONS OF CLARITY, THE FRONT
CLAMPING BAR, KNOBS, BOLTS AND
SPRINGS ARE NOT SHOWN
DOVETAIL BASE
RIGHT _
TEMPLATE ../.,.._ \'_ 7
SUPPORT _____/_\ _ "_
\\
OD WASHER V /i,'_&.
FRONT STOP BLOCK /
,,o 32HExNUT
/L%;f PLATE
_T_// FRONT STOP BLOCK
" #10-32 X 5/8" LONG
FLATHEAD MACHINE
SCREW
FRONT OF DOVETAIL BASE
#t0-,32 X 5/8" LONG FLATHEAD
MACHINE SCREW
t3
