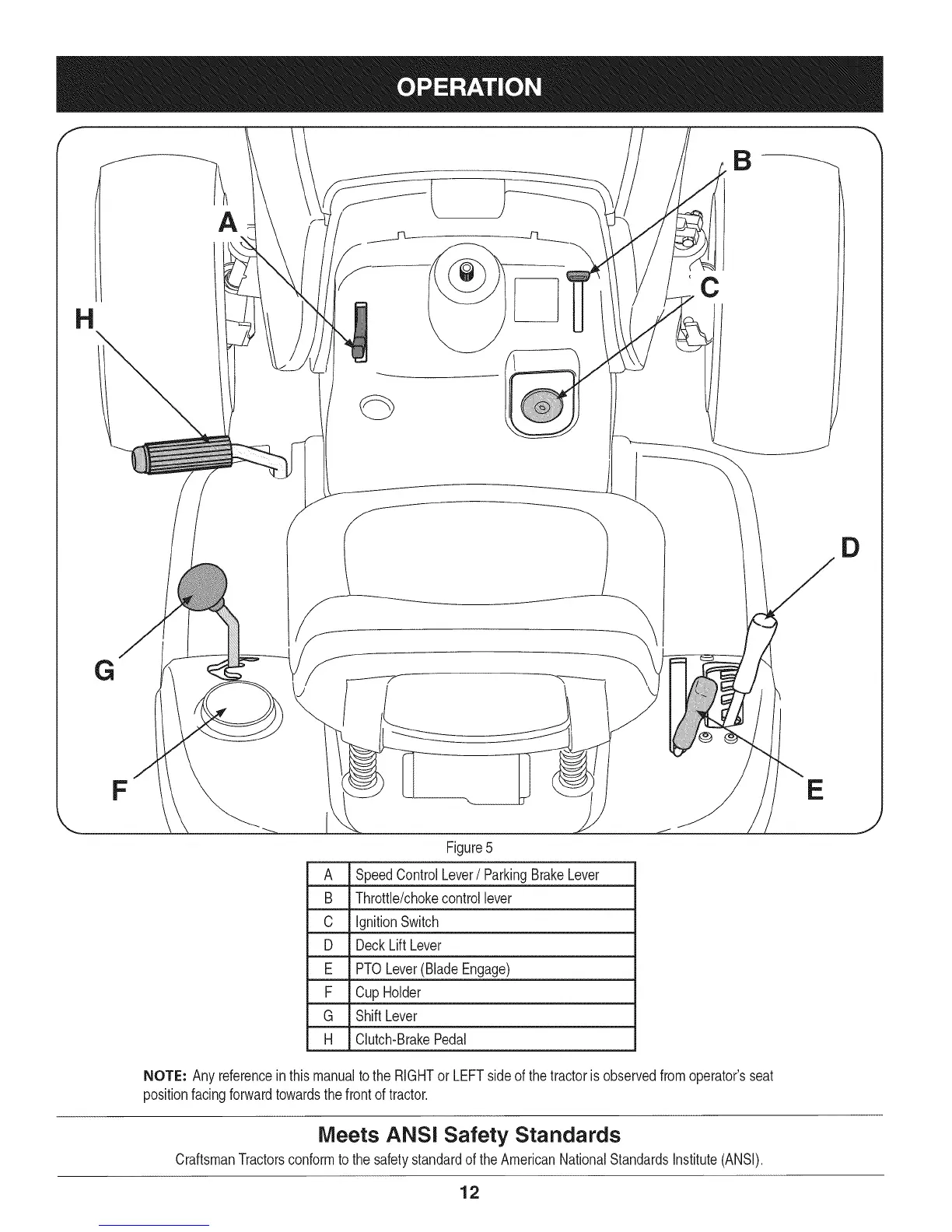

Figure5
A SpeedControlLever/ ParkingBrakeLever
B Throttle/chokecontrollever
C IgnitionSwitch
D Deck LiftLever
E PTO Lever(BladeEngage)
F Cup Holder
G ShiftLever
H Clutch-BrakePedal
NOTE: Any referencein thismanualto theRIGHTor LEFTsideof thetractoris observedfromoperator'sseat
positionfacingforwardtowardsthe frontof tractor.
Meets ANSi Safety Standards
CraftsmanTractorsconformto thesafetystandardof theAmericanNationalStandardsInstitute(ANSI).
