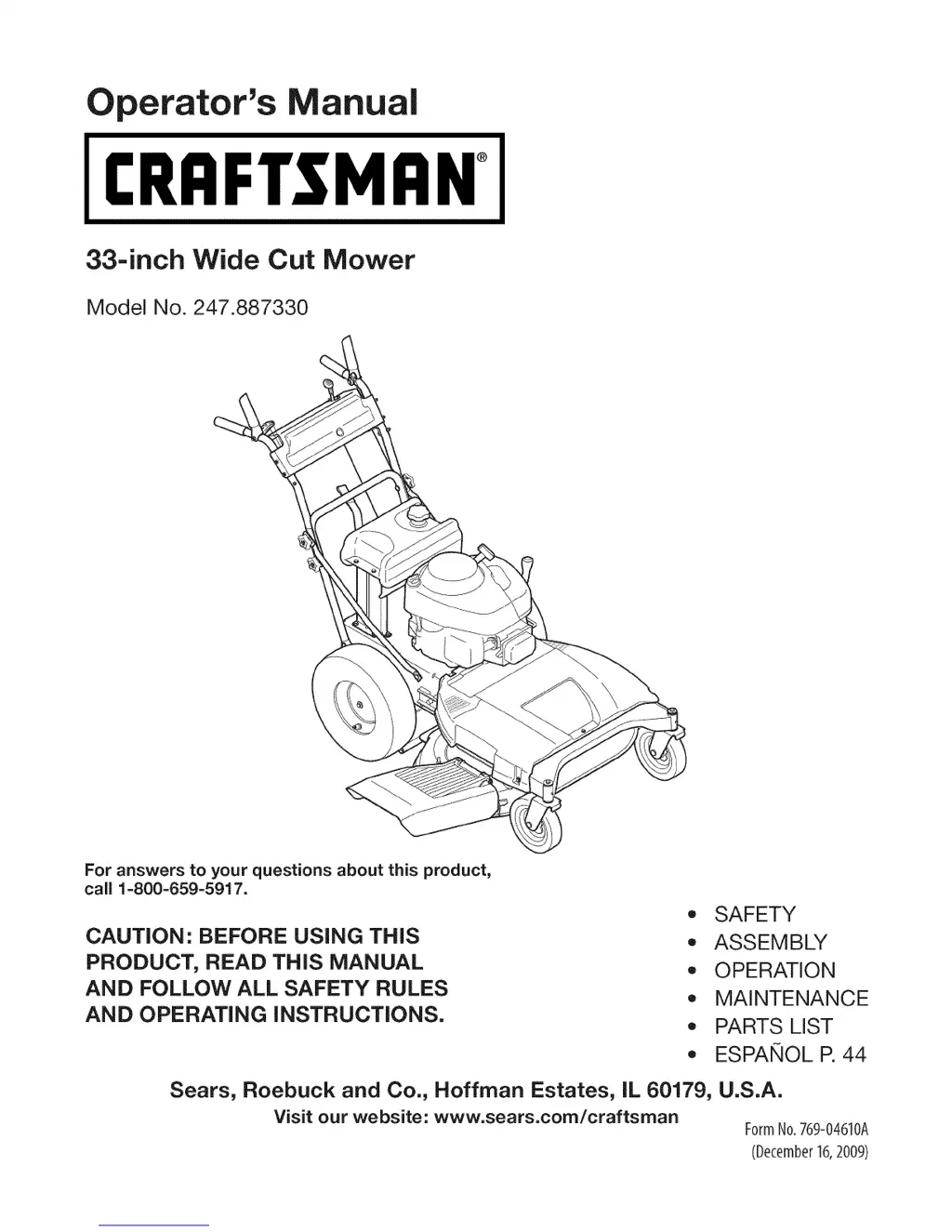

perator's Manual
£RnFrSMRN°
33-inch Wide Cut Mower
Model No. 247.887330
For answers to your questions about this product,
call 1-800-659-5917.
CAUTION: BEFORE USING THiS
PRODUCT, READ THiS MANUAL
AND FOLLOW ALL SAFETY RULES
AND OPERATING iNSTRUCTiONS.
,, SAFETY
,, ASSEMBLY
,, OPERATION
,, MAINTENANCE
,, PARTS LIST
,, ESPAIf,IOL R 44
Sears, Roebuck and Co., Hoffman Estates, IL 60179, U.S.A.
Visit our website: www.sears.com/craftsman
FormNo.769-04610A
(December16,2009)

Table of Contents

Questions and Answers

  • G
    gregory95Aug 13, 2025
    Why won't my Craftsman 247.887330 start?
    • M
      Melanie HodgesAug 13, 2025
      If your Craftsman Lawn Mower engine won't start, several factors could be the cause. First, ensure the choke is activated by placing the throttle/choke control lever into the choke position and that the throttle/choke lever is in the fast position. Check that the spark plug wire is connected to the spark plug. The spark plug could be faulty, so clean, adjust the gap, or replace it. The fuel tank might be empty or contain stale fuel, so fill it with clean, fresh gasoline. Finally, a blocked fuel line could be the issue, in which case you should have the fuel line cleaned by a Sears service dealer.
  • M
    Mario NunezAug 16, 2025
    Why is my Craftsman Lawn Mower engine overheating?
    • D
      David SantosAug 16, 2025
      If your Craftsman Lawn Mower engine is overheating, it could be due to a low engine oil level. Fill the engine with the proper amount and type of oil. Another cause could be restricted airflow. Clean any grass clippings and debris from around the engine’s cooling fins and blower housing.
  • G
    gina45Aug 21, 2025
    What to do if my Craftsman 247.887330 Lawn Mower engine idles poorly?
    • A
      Adrian NelsonAug 21, 2025
      If your Craftsman Lawn Mower engine idles poorly, a fouled spark plug could be the cause. Replace the spark plug and adjust the gap. Alternatively, a dirty air cleaner might be the issue, so replace the air cleaner cartridge.
  • C
    carlosjonesAug 25, 2025
    What to do if my Craftsman 247.887330 fails to propel itself?
    • C
      chadlangAug 25, 2025
      If your Craftsman Lawn Mower fails to propel itself, the drive belt may be loose or damaged. Replace the drive belt.
  • A
    Andrea BrownAug 28, 2025
    What to do if my Craftsman 247.887330 Lawn Mower engine runs erratically?
    • J
      jamesphamAug 28, 2025
      If your Craftsman Lawn Mower engine runs erratically, there are several possible causes. Make sure the unit is not running with the choke applied; if it is, move the throttle/choke lever out of the choke position. Check the spark plug wire to ensure it is connected and tight. Stale fuel can also cause this issue, so fill the tank with fresh gasoline. Additionally, water or dirt in the fuel system could be the problem; drain the fuel and refill with fresh fuel. Lastly, a dirty air cleaner can cause the engine to run erratically, so replace the air cleaner cartridge.
  • C
    Christina BradleyAug 31, 2025
    How to reduce excessive vibration in my Craftsman Lawn Mower?
    • E
      Emma MorganSep 1, 2025
      Excessive vibration in your Craftsman Lawn Mower can stem from a few issues. Start by checking the cutting blades to ensure they are tightened and balanced. If they are loose, tighten the blade and spindle; if unbalanced, balance the blade. A damaged, dull, or bent cutting blade can also cause vibration, so replace the blade if necessary. Lastly, loose hardware can contribute to vibration, so tighten all nuts and bolts.
  • K
    Kevin FernandezSep 4, 2025
    What causes poor mowing performance in my Craftsman 247.887330?
    • D
      dennis83Sep 4, 2025
      Poor mowing performance in your Craftsman Lawn Mower can be attributed to several factors. Dull blades are a common cause, so sharpen or replace them. Broken, loose, or worn belts can also lead to poor performance, so replace the belts. Additionally, if the blades are out of balance, balance or replace them.
  • M
    Michael MckeeSep 8, 2025
    Why does my Craftsman Lawn Mower engine hesitate at high RPMs?
    • S
      stevenpierceSep 8, 2025
      If your Craftsman Lawn Mower engine hesitates at high RPMs, it could be due to the spark plug gap being set too close. Remove the spark plug and adjust the gap.

Summary

Warranty Statement

Craftsman Full Warranty

Details the terms and conditions of the Craftsman Full Warranty for the mower.

Safety Instructions

Children Safety

Safety precautions for children around the mower and by young operators.

General Operation Safety

Essential safety rules for general mower operation.

Slope Operation

Guidelines for safe operation on slopes, including limitations and techniques.

Safety Labels

Explains the meaning and importance of various safety labels on the mower.

Assembly

Removing Unit from Crate

Steps to safely remove the mower from its shipping crate.

Assembling the Handle

Instructions for attaching and securing the mower's handle.

Removing the Chute Holder

Procedure for removing the discharge chute holder before operation.

Installing the Gear Shift Lever

Steps to install the gear shift lever mechanism.

Operation

Know Your Mower Controls

Identifies and explains the function of the mower's controls.

Gas and Oil Fill-Up

Instructions for safely filling the fuel tank and checking engine oil.

Starting the Mower

Step-by-step guide on how to start the mower engine.

Using the Mower

How to operate the mower, including controls and mowing techniques.

Stopping the Mower

Procedures for safely stopping the mower engine and blades.

Mulching or Side-Discharge Mowing

Instructions for switching between mulching and side-discharge modes.

Service and Maintenance

Engine Maintenance

Procedures for maintaining the engine, including spark plug checks.

Air Cleaner Service

Steps for cleaning or replacing the air cleaner cartridge.

Changing the Engine Oil

Detailed instructions for changing the engine oil.

Lubrication

Lubrication points and schedule for mower components.

Cleaning the Engine and Deck

Procedures for cleaning the mower's engine and cutting deck.

Rear Tire Pressure

Information on recommended rear tire pressure.

Replacing the Trailing Shield

Instructions for replacing the trailing shield.

Servicing the Cutting Blades

Instructions for blade removal, sharpening, and installation.

Blade Sharpening

Detailed instructions on how to sharpen the mower blades.

Belt Replacement

Guide for replacing drive, deck engagement, and blade timing belts.

Maintenance Schedule

Recommended maintenance tasks and intervals for the mower.

Off-Season Storage

Guidelines for preparing and storing the mower during off-season.

Accessories and Attachments

Information on available accessories and attachments for the mower.

Troubleshooting

Engine Fails to Start

Common causes and remedies for engine starting issues.

Engine Runs Erratically

Troubleshooting steps for an engine that runs unevenly.

Engine Overheats

Reasons and solutions for engine overheating.

Excessive Vibration

Troubleshooting steps for excessive vibration during operation.

Poor Mowing Performance

Diagnosing and fixing issues related to mowing quality.

Parts List

Mower Parts Identification

Illustrated diagram and list of mower assembly parts.

Engine Parts Identification

Illustrated diagram and list of Briggs & Stratton engine parts.

Emission Control Warranty

Emission Warranty Rights and Obligations

Explains the owner's responsibilities and manufacturer's coverage for emission parts.

Warranted Emission Parts

Lists the specific emission-related parts covered under the warranty.

Craftsman 247.887330 Specifications

General IconGeneral
BrandCraftsman
Model247.887330
CategoryLawn Mower
LanguageEnglish
