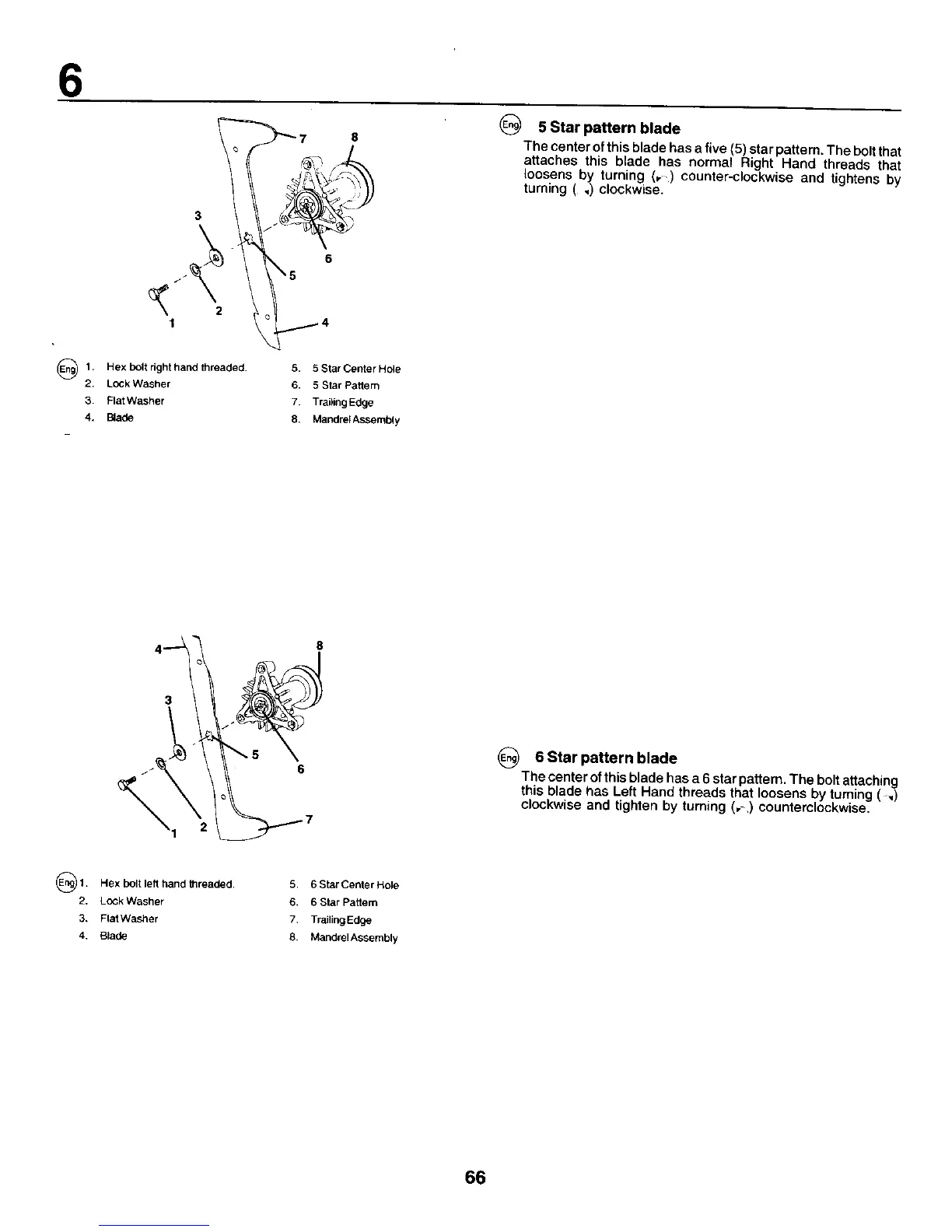

Craftsman 25912 - Blade Identification and Installation

6
1
_) 1. Hex bolt dght hand threaded.
2. Lock WaSher
3. Flat Washer
4. Blade
6
5. 5 Star Center Ho4e
6. 5 Star Psttem
7. Trailing Edge
8. Mandrel Assembly
(_ 5 Star pattern blade
The center of this blade has a five (5) star pattern. The bolt that
attaches this blade has normal Right Hand threads that
loosens by turning (,) counter-clockwise and tightens by
turning (_) clockwise.
%
3
6
6 Star pattern blade
The center of this blade has a 6 star pattem, The boltattaching
this blade has Left Hand threads that loosens by turning (-_)
clockwise and tighten by turning (_-,) counterclockwise.
(_1, Hex boltleft hand threaded.
2. LOCk Washer
3, Flat Washer
4, Blade
5. 6 Star Center _ole
6. 6 Star pattern
7. 3"railing Edge
8. MandrelAssembly
