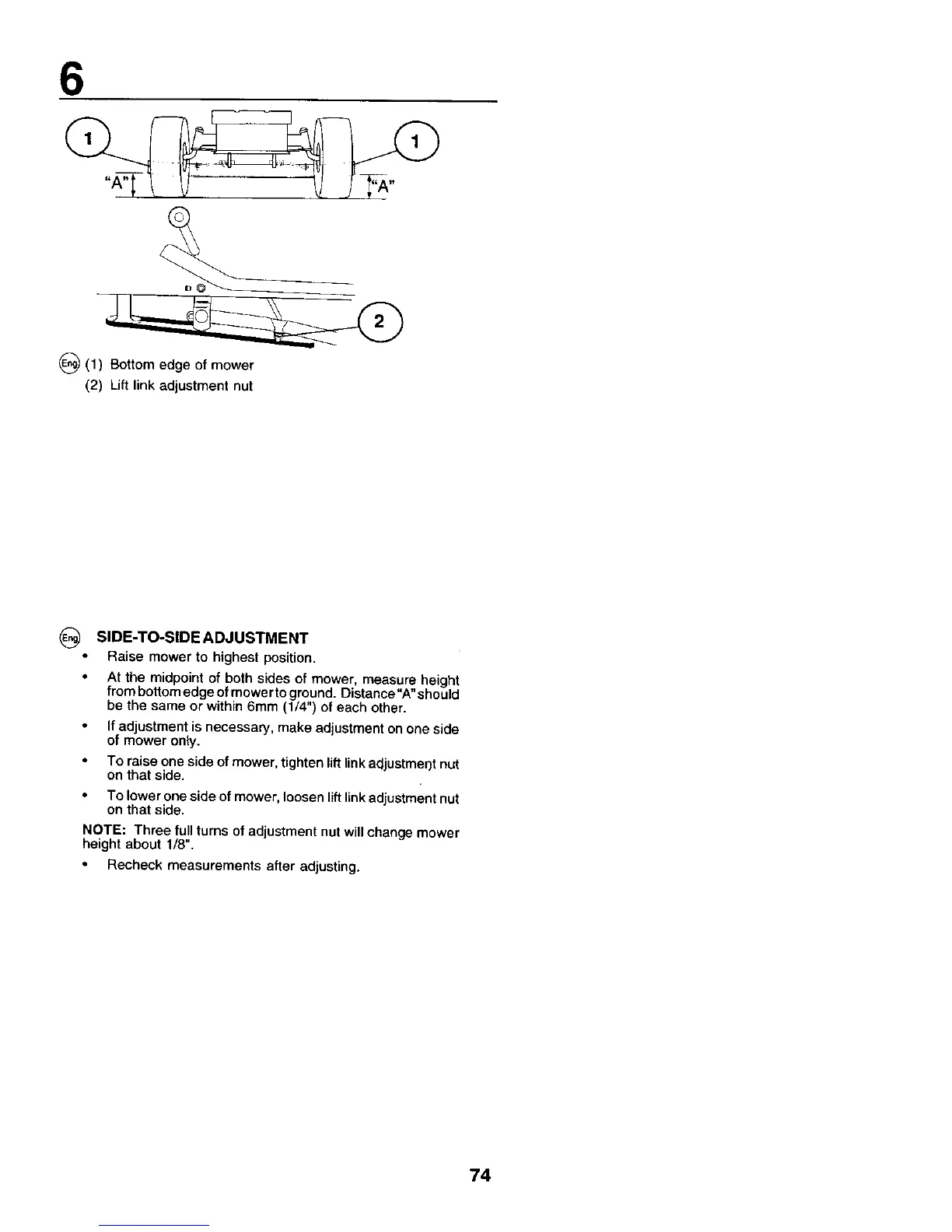

_) (1) Bottom edge of mower
(2) Lift link adjustment nut
SIDE-TO-SIDE ADJUSTMENT
• Raise mower to highest position.
• At the midpoint of both sides of mower, measure height
from bottom edge of mower to ground. Distance"A" should
be the same or within 6mm (1/4) of each other.
If adjustment is necessary, make adjustment on one side
of mower onty.
To raise one side of mower, tighten lift linkadjustmeqt nut
on that side.
To lower one side of mower, loosen liftlink adjustment nut
on that side.
NOTE: Three full turns of adjustment nut will change mower
height about 1/8".
Recheck measurements after adjusting.
