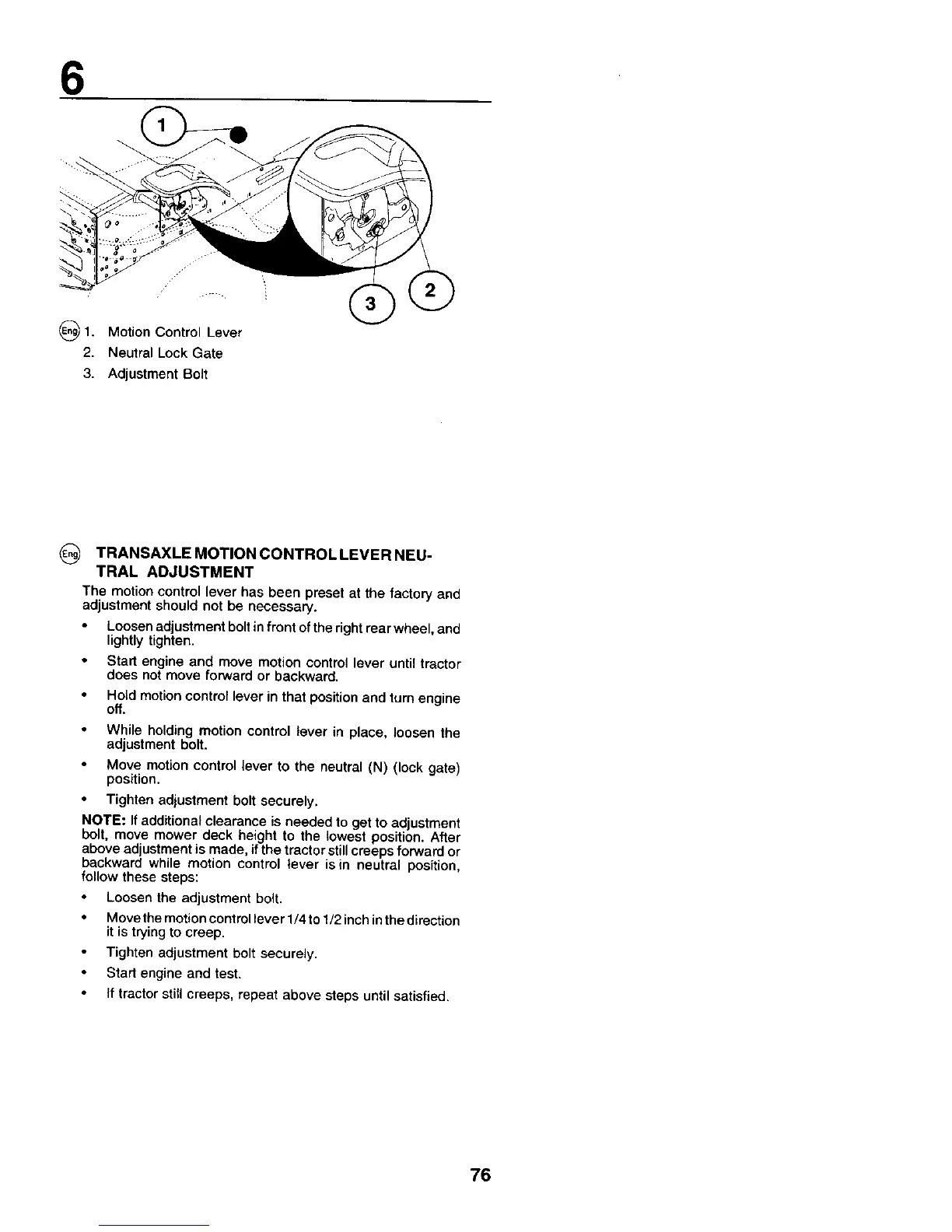

(_1. Control Lever
Motion
2. Neutral Lock Gate
3. Adjustment Bolt
TRANSAXLE MOTION CONTROL LEVER NEU-
TRAL ADJUSTMENT
The motion control lever has been preset at the factory and
adjustment should not be necessary.
Loosen adjustment bolt in front of the right rear wheel, and
tightly tighten.
Start engine and move motion control lever until tractor
does not move forward or backward.
Hold motion control lever in that position and turn engine
off.
While holding motion control lever in place, loosen the
adjustment bolt,
Move motion control lever to the neutral (N) (lock gate)
position.
Tighten adjustment bolt securely.
NOTE: If additional clearance is needed to get to adjustment
bolt, move mower deck height to the lowest position. After
above adjustment is made, if the tractor still creeps forward or
backward while motion control lever is in neutral position,
follow these steps:
Loosen the adjustment bolt.
Move the motioncontrol lever 1/4 to 1/2 inch inthe direction
it is trying to creep.
Tighten adjustment bolt securely.
Start engine and test.
If tractor still creeps, repeat above steps until satisfied.
