Craftsman 25912 - Steering Wheel Assembly

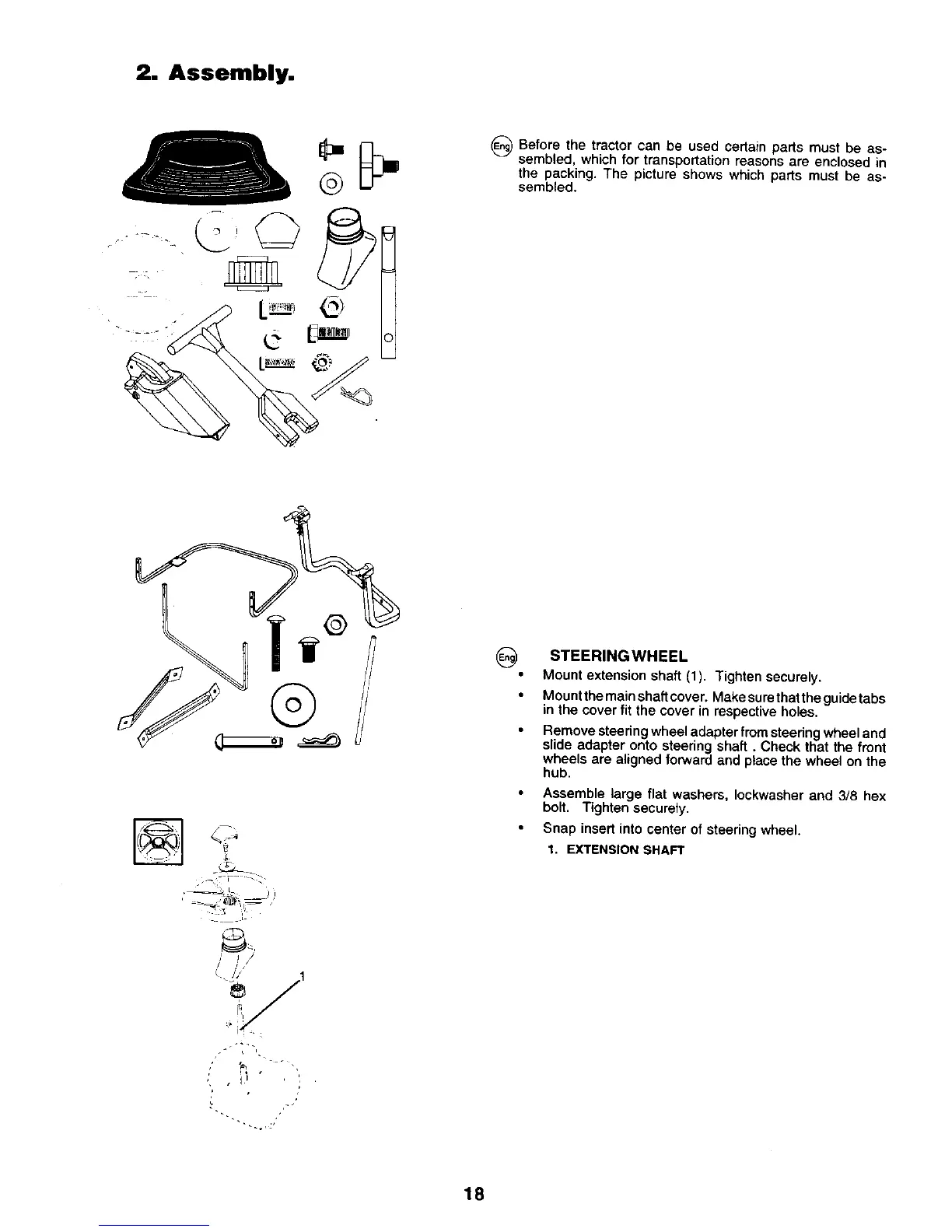

2. Assembly.
@
(_) Before can certain parts must be as-
the
tractor be used
sembled, which for transportation reasons are enclosed in
the packing. The picture shows which paris must be as-
sembled.
@
STEERING WHEEL
Mount extension shaft (1). Tighten securely.
Mount the mainshaft cover. Make surethatthe guide tabs
in the cover fit the cover in respective holes.
Remove steering wheel adapter from steering wheel and
slide adapter onto steering shaft. Check that the front
wheels are aligned forward and place the wheel on the
hub.
Assemble large flat washers, Iockwasher and 3/8 hex
bolt. Tighten securely.
Snap insert into center of steering wheel.
1. EXTENSION SHAFT
.. _ ,
18
