2
1

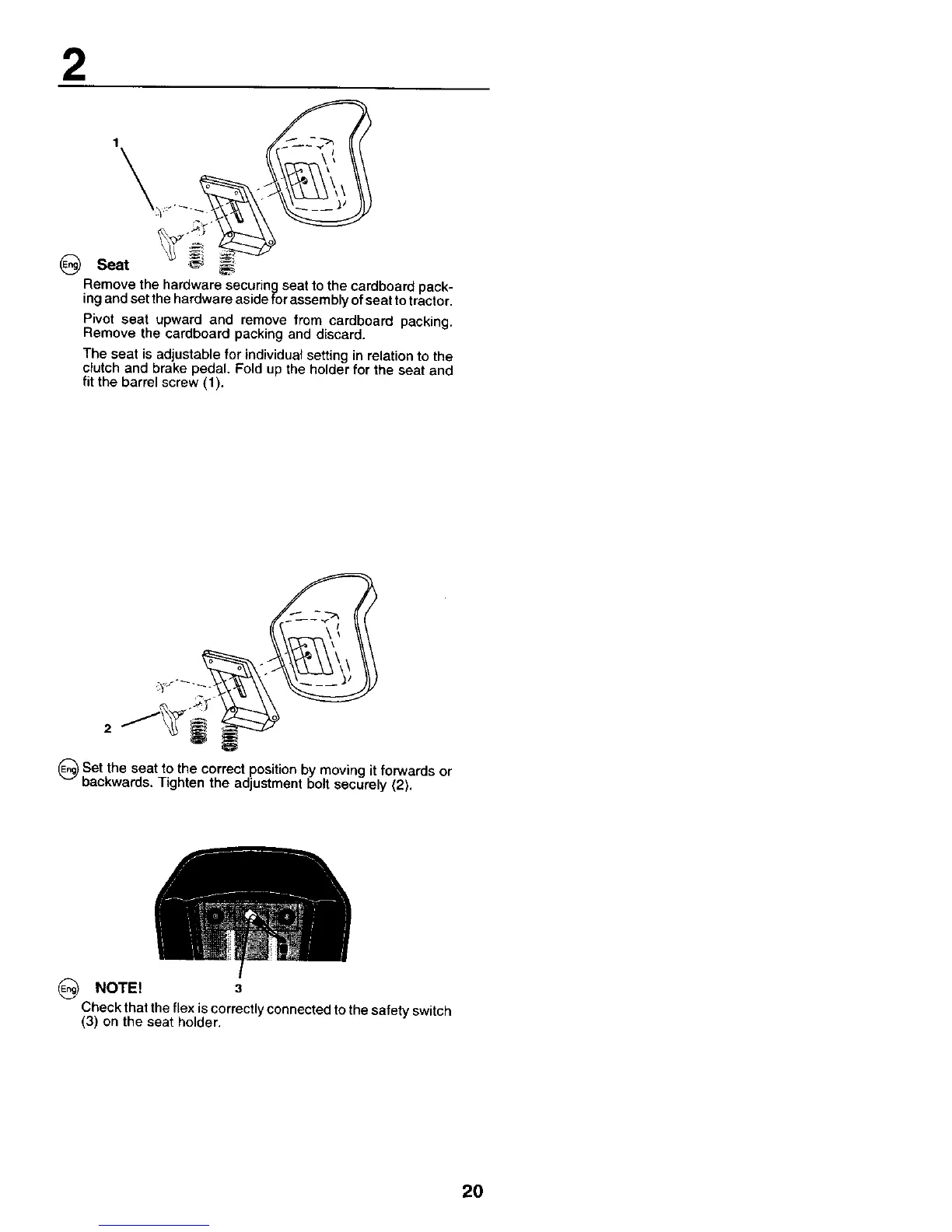

_) Seat _.
Remove the hardware securing seat to the cardboard pack-
ing and set the hardware aside for assembly of seat to tractor.
Pivot seat upward and remove from cardboard packing.
Remove the cardboard packing and discard.
The seat is adjustable for individual setting in relation to the
clutch and brake pedal, Fold up the holder for the seat and
fit the barrel screw (1).
_-_. __
(_Set the seat to the correct position by moving it forwards or
backwards. Tighten the adjustment bolt securely (2).
(_ NOTE! 3
Check that the flex is correctly connected to the sa|ely switch
(3) on the seat holder.
2O
