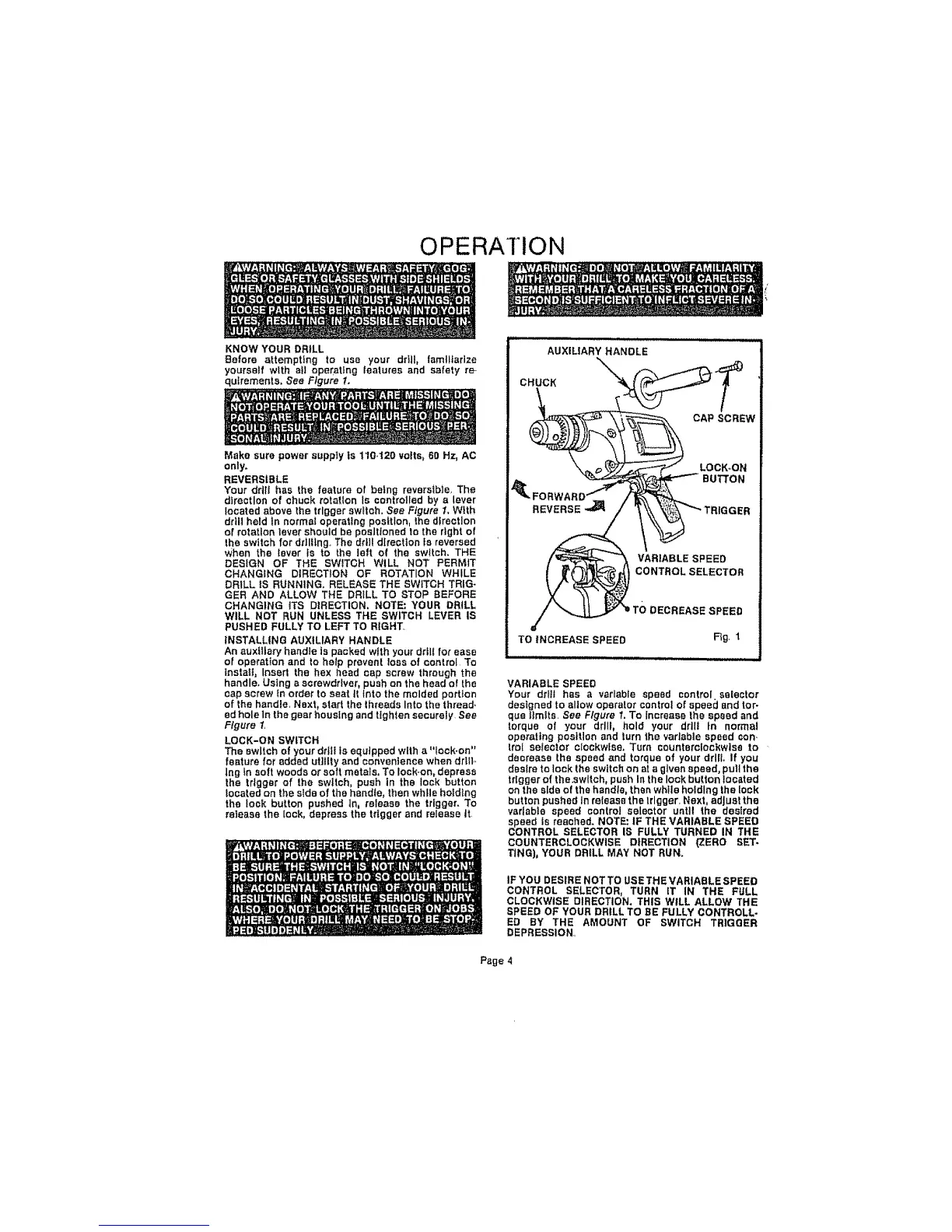

KNOW YOUR DRILL
OPERATION
Before attempting to use your drill, familiarize
yourself with all operat ng leatures and safety re
quirements. See Figure 1.
Make sure power supply is t10o120 veils, 60 Hz, AC
only.
REVERSIBLE
Your ddit has the feature of being reversible, The
direction of chuck rotafion Is controlled by a lever
located above the trigger sw_loh, See Figure 1. With
drill held In normal operating position, the direction
of rotatton lever should be positioned to the right of
the switch for drilling The dd}l direction fe reversed
When the iever ts to the left of the switch, THE
DESIGN OF THE SWITCH WILL NOT PERMIT
CHANGING DIRECTION OF ROTATION WHILE
DRILL IS RUNNING. RELEASE THE SWITCH TRIG-
GER AND ALLOW THE DRILL TO STOP BEFORE
CHANGING iTS DIRECTION, NOTE: YOUR DRILL
WILL NOT RUN UNLESS THE SWITCH LEVER IS
PUSHED FULLY TO LEFT TO RIGHT.
INSTALLING AUXIUARY HANDLE
An auxtUary handle is packed with your drill for ease
of operation and to help prevent loss of control To
Instal_, Insert the hex head cap screw through the
handle, Using a screwdriver, push on the head of the
cap screw in order to seat tt Into the molded portion
of the handie. Next, start the threads Into the thread..
ed hole In the gear housing and tighten securely See
Figure I,
LOCK-ON SWITCH
The switch of your drUl is equipped w_th a "lock.on"
feature for added ut]ltty and convenience when drill,,
lng In soft woods or soft metaSs, To lock-on, depress
the trigger of the switch, push in the lock button
located on the side of the hendte, then while h01dlng
the look button pushed in, release the trigger. To
release the took, depress the tdgger and release tt
AUXILIARY HANDLE
CHUCK "XX"x4
CAP SCREW
LOCK-ON
VARIABLE SPEED
CONTROL SELECTOR
TO INCREASE SPEED
DECREASE SPEED
Fig. 1
VARIABLE SPEED
Your drill has a variable speed control, selector
deslgned to allow operator central of speed and tor-
que tlmits See Figure 1, To Increase the speed and
torque of your drift, hold your dill! tn normal
operating position and turn the variable speed conh
trol seteotor clockwfee. Turn counterclockwise to
decrease the speed and torque of your drill If you
desire to lock the switch on at a given speed, pull the
trigger of the.switch, push In the lock button located
on the side of the handle, then while holding the Iock
button pushed In release the Irlgger, Next, adjust the
varlabte speed control selector until the desired
speed is reached. NOTE: IF THE VARIABLE SPEED
CONTROL SELECTOR IS FULLY TURNED IN THE
COUNTERCLOCKWISE DIRECTION {ZERO SET.
TTNG), YOUR DRILL MAY NOT RUN.
IF YOU DESIRE NOT TO USE THE VARIABLE SPEED
CONTROL SELECTOR, TURN IT IN THE FULL
CLOCKWISE DIRECTION, THIS WILL ALLOW THE
SPEED OF YOUR DRtLL TO BE FULLY CONTROLL.
ED BY THE AMOUNT OF SWITCH TRIGGER
DEPRESSION=
Page 4
