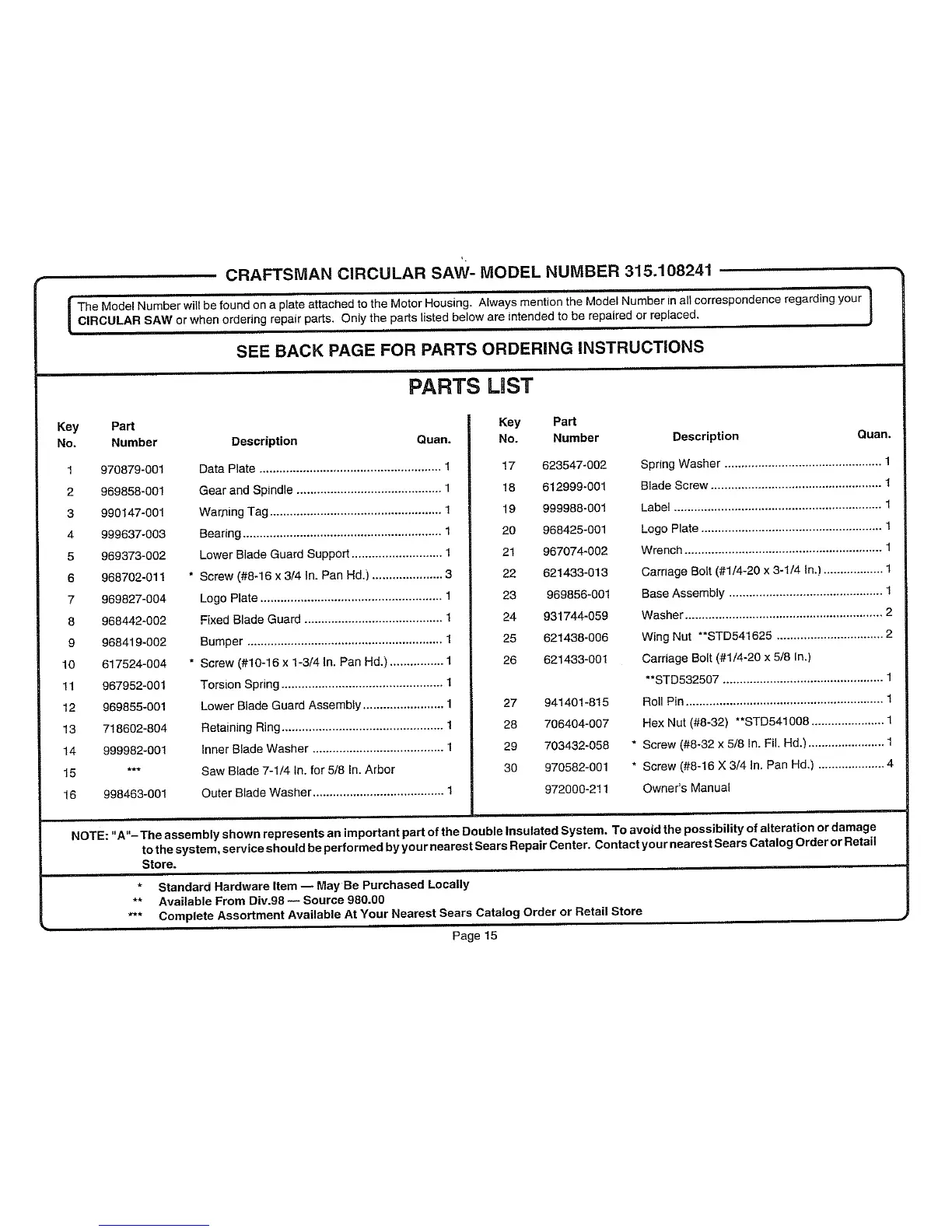

CRAFTSMAN CIRCULAR SAW- MODEL NUMBER 315.108241
The Model Number wilt be found on a plate attached to the Motor Housing. Always mention the Model Number in all correspondence regarding your
CIRCULAR SAW or when ordering repafr parts. Only the parts listed below are intended to be repaired or replaced.
SEE BACK PAGE FOR PARTS ORDERING INSTRUCTIONS
Key Part
No. Number
1 970879-001
2 969858-001
3 990147-001
4 999637-003
5 969373-002
6 968702-011
7 969827-004
8 968442-002
9 968419-002
10 617524-004
11 967952-001
12 969855-001
13 718602-804
14 999982-001
15 ***
16 998463-001
PARTS UST
Description Quart.
Data Plate ...................................................... 1
Gear and Spindle ........................................... 1
Warning Tag ................................................... 1
Bearing ........................................................... 1
Lower Blade Guard Support ........................... 1
Screw (#8-16 x 3/4 In. Pan Hd.) ..................... 3
Logo Plate ...................................................... 1
Fixed Blade Guard ......................................... 1
Bumper .......................................................... 1
Screw (#10-16 x 1-3/4 In. Pan Hd.) ................ 1
Torsion Spring ................................................ 1
Lower Blade Guard Assembly ........................ 1
Retaining Ring ................................................ 1
Inner Blade Washer ....................................... 1
Saw Blade 7-1/4 In. for 5/8 In. Arbor
Outer Blade Washer ....................................... 1
Key Part
No. Number
17 623547-002
18 612999-001
19 999988-001
20 968425-001
21 967074-002
22 621433-013
23 969856-001
24 931744-059
25 621438-006
26 621433-001
27 941401-815
28 706404-007
29 703432-058
30 970582-001
972000-2!1
}
Description Quart.
Spring Washer ............................................... 1
Blade Screw ................................................... 1
Label .............................................................. 1
Logo Plate ...................................................... 1
Wrench ........................................................... 1
Carriage Bolt (#1/4-20 x 3-1/4 In.) .................. 1
Base Assembly .............................................. 1
Washer ........................................................... 2
Wing Nut **STD541625 ................................ 2
Carriage Bolt (#1/4-20 x 5/8 In,)
**STD532507 ................................................ 1
Roll Pin ........................................................... 1
Hex Nut (#8-32) **STD541008 ...................... 1
Screw (#8-32 x 5/8 In. Fil. Hd.} ....................... 1
Screw (#8-16 X 3/4 In. Pan Hd.} .................... 4
Owner's Manual
NOTE: "A"- The assembly shown represents an important part of the Double Insulated System, To avoid the possibility of alteration or damage
to the system, service should be performed by your nearest Sears Repair Center. Contact your nearest Sears Catalog Order or Retail
Store.
* Standard Hardware Item -- May Be Purchased Locally
** Available From Div.98-- Source 980.00
_** Complete Assortment Available At Your Nearest Sears Catalog Order or Retail Store
Page 15

Craftsman 315.108241 Specifications

General

Model Number	315.108241
Type	Circular Saw
No Load Speed	5000 RPM
Blade Diameter	7-1/4 inches
Depth of Cut at 45 degrees	1-3/4 inch
