PRODUCTSPECIFICATIONS
DepthofCut............................................................1-1/2in.
DepthofPlunge.............................................................2in.
Collet..........................................................................1/4in.
Horsepower......................................................................2
NoLoadSpeed...............................................25,000/rain.
Input................................120V,60Hz,AConly9.5Amps
NetWeight.............................................................5.06Ibs.
SPINDLELOCK
BUTTON
MOTOR
HOUSING
TOGGLE
SWITCH

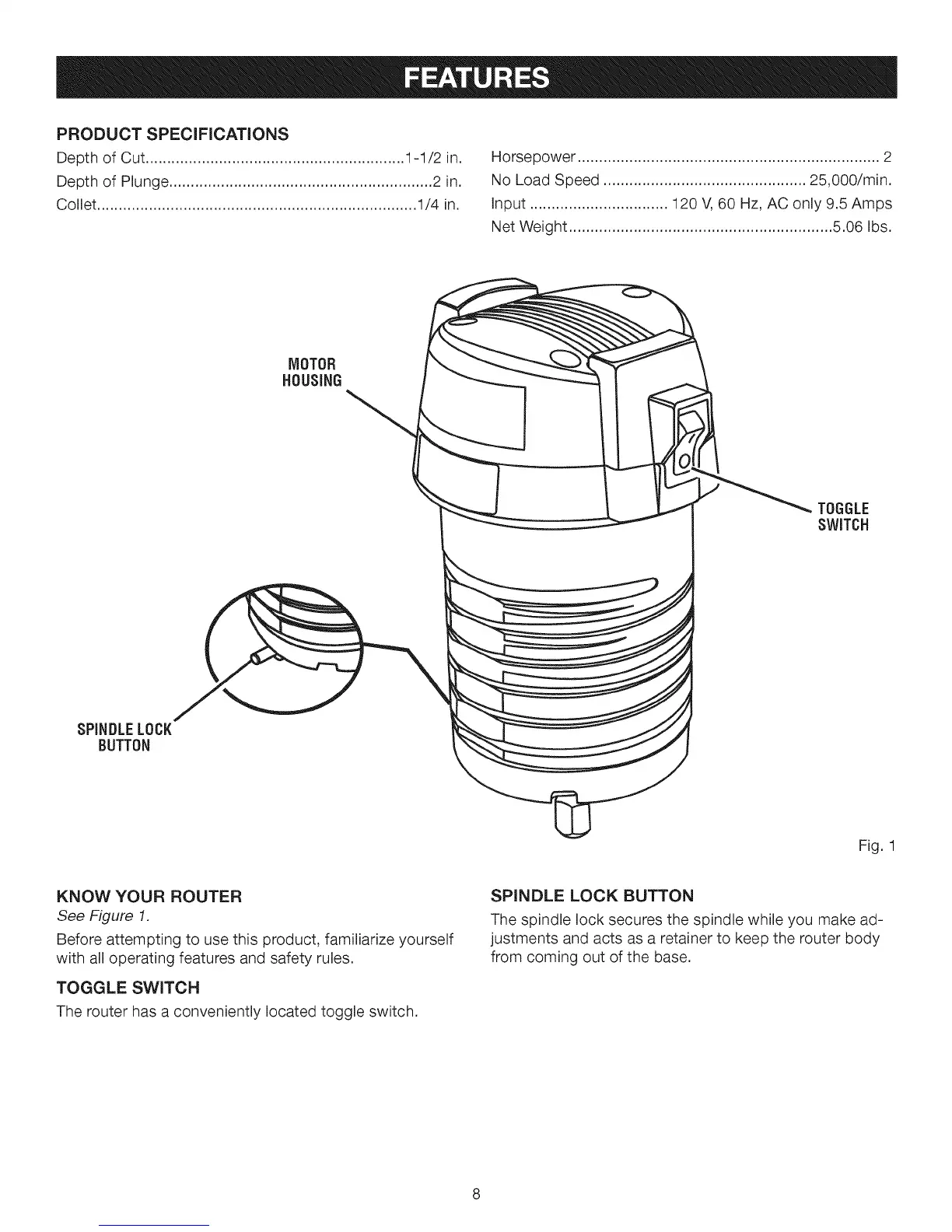

Fig. 1
KNOW YOUR ROUTER
See Figure 1,
Before attempting to use this product, familiarize yourself
with all operating features and safety rules.
TOGGLE SWITCH
The router has a conveniently located toggle switch.
SPINDLE LOCK BUTTON
The spindle lock secures the spindle while you make ad-
justments and acts as a retainer to keep the router body
from coming out of the base.
