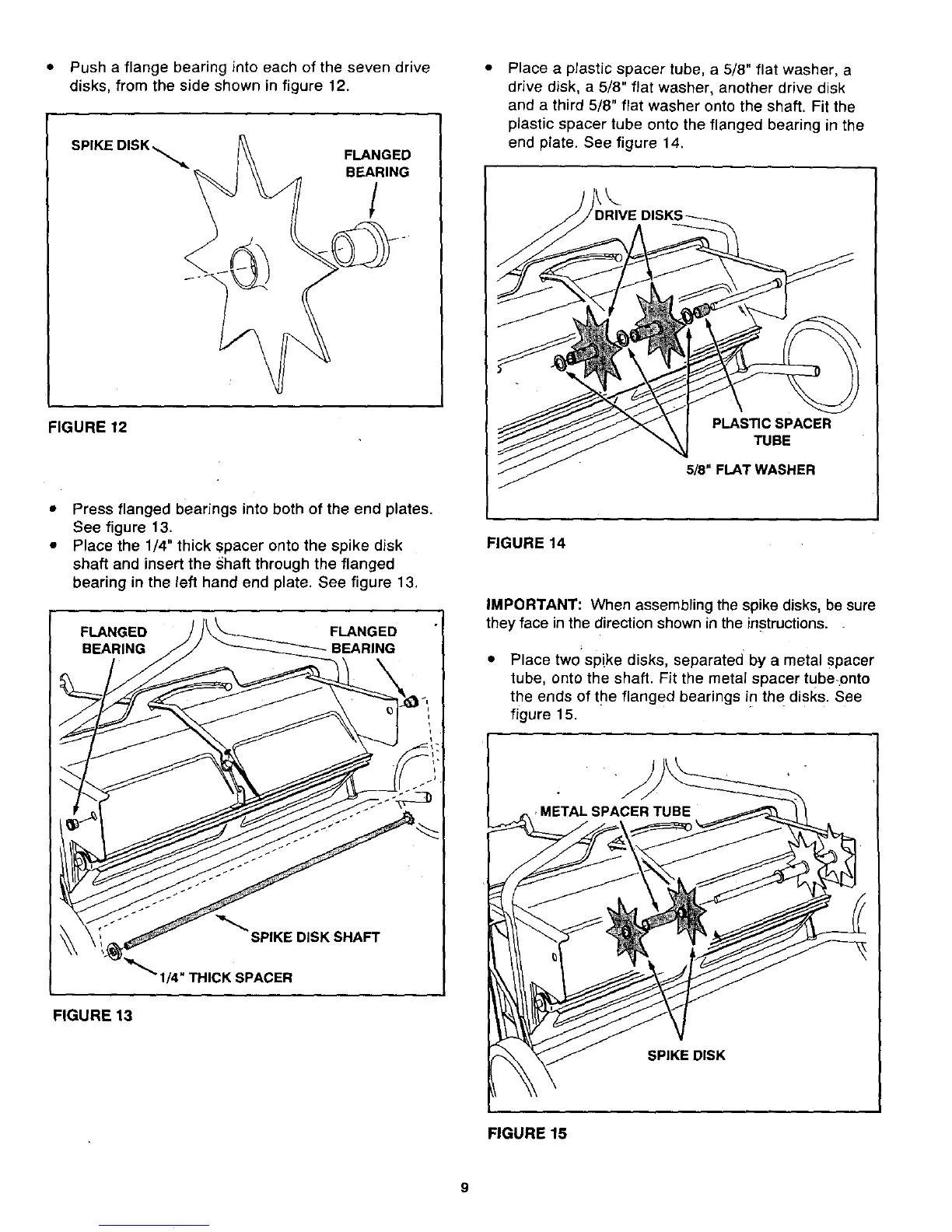

• Push a flange bearing into each of the seven drive •
disks, from the side shown in figure 12.
SPIKE DISK
FLANGED
BEARING
/
FIGURE 12
Press flanged bearings into both of the end plates.
See figure 13.
Place the 1/4" thick Spacer onto the spike disk
shaft and insert the shaft through the flanged
bearing in the left hand end plate. See figure 13,
FLANGED FLANGED
BEARING BEARING
SPIKE DISK SHAFT
_1/4" THICK SPACER
FIGURE 13
Place a plastic spacer tube, a 5/8" flat washer, a
drive disk, a 5/8" flat washer, another drive disk
and a third 5/8" flat washer onto the shaft. Fit the
plastic spacer tube onto the flanged bearing in the
end plate. See figure 14.
PLASTIC SPACER
TUBE
5/8" FLAT WASHER
FIGURE 14
IMPORTANT: When assembling the spike disks, be sure
they face in the direction shown in the instructions.
Place two'spike disks, separated by a metal spacer
tube, onto the shaft. Fit the metal spacer tube.onto
the ends of the flanged bearings in the disks. See
figure 15.
SPIKE DISK
FIGURE 15
9
