Craftsman 486.24331 - Compression Spring

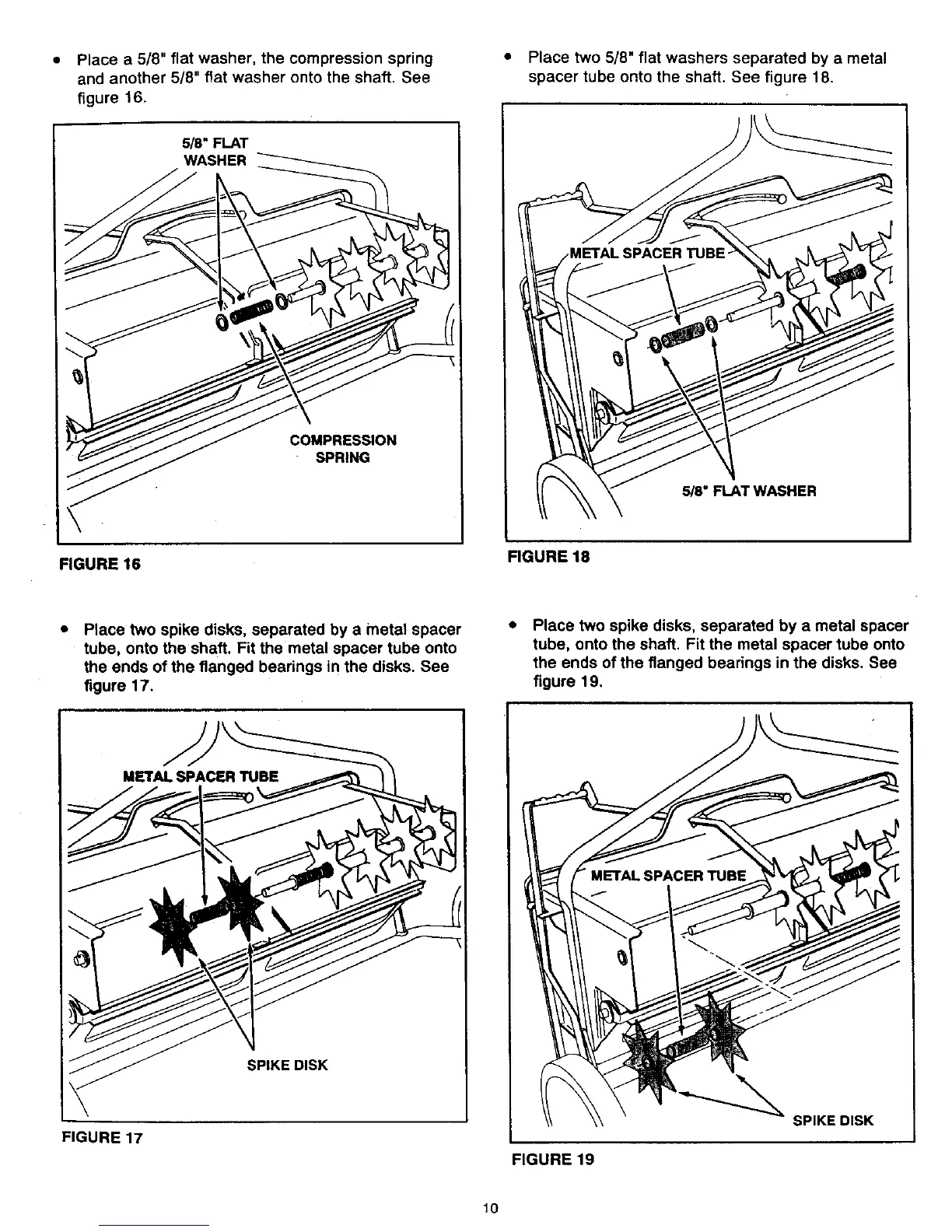

• Place a 5/8" flat washer, the compression spring
and another 5/8" flat washer onto the shaft. See
figure 16.
• Place two 5/8" flat washers separated by a metal
spacer tube onto the shaft. See figure 18.
FIGURE 16
5/8" FLAT
WASHER
COMPRESSION
SPRING
FIGURE 18
5/8" FLAT WASHER
Place two spike disks, separated by a metal spacer
tube, onto the shaft. Fit the metal spacer tube onto
the ends of the flanged bearings in the disks. See
figure 17,
Place two spike disks, separated by a metal spacer
tube, onto the shaft. Fit the metal spacer tube onto
the ends of the flanged bearings in the disks. See
figure 19.
FIGURE 17
SPIKE DISK
SPIKE DISK
FIGURE 19
10
