REF.
NO.
1
2
3
4
5
6
7
8
9
!0
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
4O
41
42
43
44
45
46
47
48
49
50
51
52
53
54

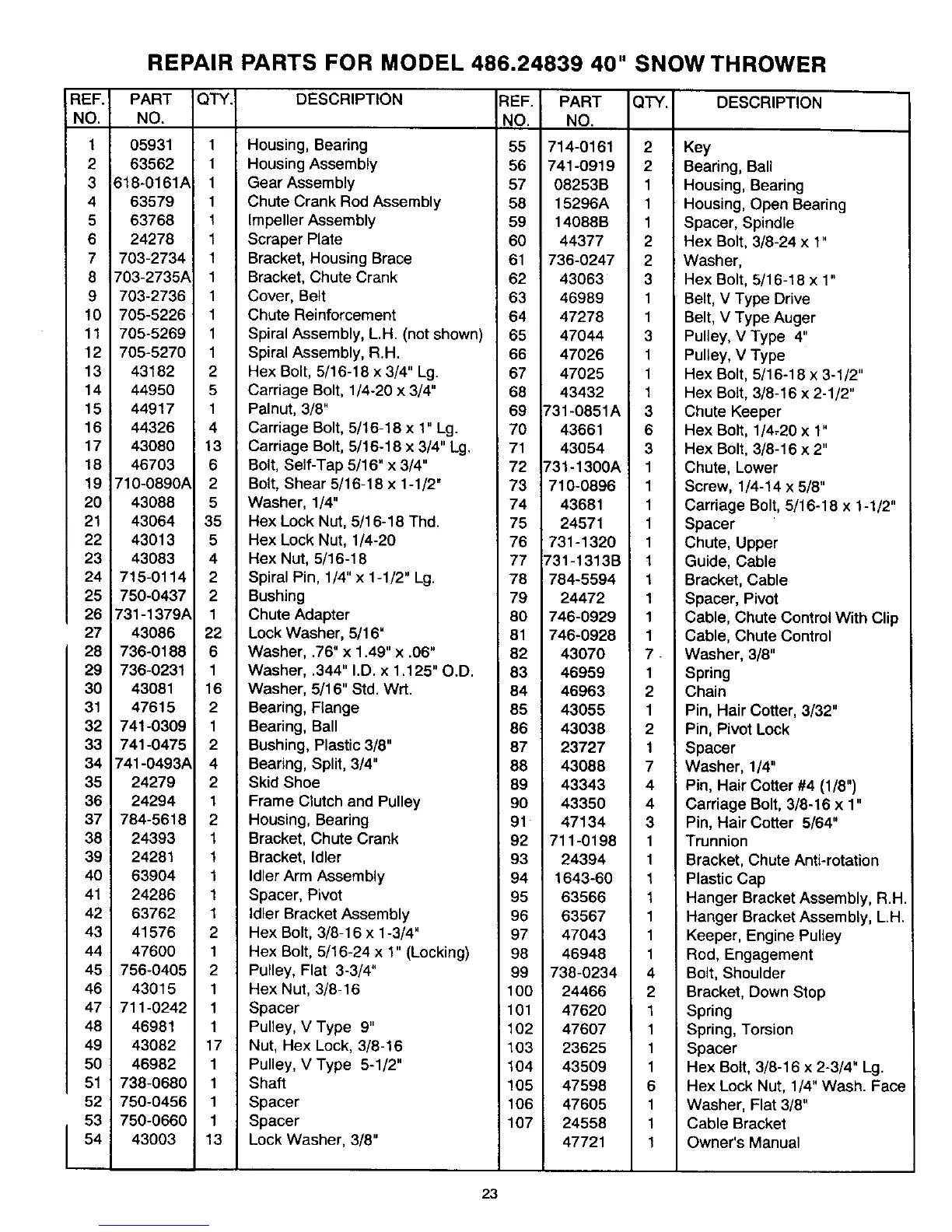

REPAIR PARTS FOR MODEL 486.24839 40" SNOW THROWER
PART
NO.
05931
63562
618-0161A
63579
63768
24278
703-2734
703-2735A
703-2736
705-5226
705-5269
705-5270
43182
44950
44917
44326
43080
46703
710-0890A
43088
43064
43013
43083
715-0114
750-0437
731-1379A
43086
736-0188
736-0231
43081
47615
741-0309
741-0475
741-0493A
24279
24294
784-5618
24393
24281
63904
24286
63762
41576
47600
756-0405
43015
711-0242
46981
43082
46982
738-0680
750-0456
750-0660
43003
QTY._ DESCRIPTION REF.
NO.
1 Housing, Bearing 55
1 Housing Assembly 56
1 Gear Assembly 57
1 Chute Crank Rod Assembly 58
1 Impeller Assembly 59
1 Scraper Plate 60
1 Bracket, Housing Brace 61
1 Bracket, Chute Crank 62
1 Cover, Belt 63
1 Chute Reinforcement 64
1 Spiral Assembly, L.H. (not shown) 65
1 Spiral Assembly, R.H. 66
2 Hex Bolt, 5/16-18 x 3/4" Lg. 67
5 Carriage Bolt, 1/4-20 x 3/4" 68
1 Palnut, 3/8" 69
4 Carriage Bolt, 5/16-18 x 1" Lg. 70
13 Carriage Bolt, 5/16-18 x 3/4" Lg. 71
6 Bolt, Self-Tap 5/16" x 3/4" 72
2 Bolt, Shear 5/16-18 x 1-1/2" 73
5 Washer, 1/4" 74
35 Hex Lock Nut, 5/16-18 Thd. 75
5 Hex Lock Nut, 1/4-20 76
4 Hex Nut, 5/16-18 77
2 Spiral Pin, 1/4" x 1-1/2" Lg. 78
2 Bushing 79
1 Chute Adapter 80
22 Lock Washer, 5/16" 81
6 Washer, .76" x 1.49" x .06" 82
1 Washer, .344" I.D. x 1.125" O.D. 83
16 Washer, 5/16" Std. WrL 84
2 Bearing, Flange 85
1 Bearing, Ball 86
2 Bushing, Plastic 3/8" 87
4 Bearing, Split, 3/4" 88
2 Skid Shoe 89
1 Frame Clutch and Pulley 90
2 Housing, Bearing 91
1 Bracket, Chute Crank 92
1 Bracket, Idler 93
1 Idler Arm Assembly 94
1 Spacer, Pivot 95
1 Idler Bracket Assembly 96
2 Hex Bolt, 3/8-16 x 1-3/4" 97
1 Hex Bolt, 5/16-24 x 1" (Locking) 98
2 Pulley, Flat 3-3/4" 99
1 Hex Nut, 3/8-16 100
1 Spacer 101
1 Pulley, V Type 9" 102
17 Nut, Hex Lock, 3/8-16 103
1 Pulley, V Type 5-1/2" 104
1 Shaft 105
1 Spacer 106
1 Spacer 107
13 Lock Washer, 3/8"
PART QTY. DESCRIPTION
NO.
714-0161 2 Key
741-0919 2 Bearing, Ball
08253B 1 Housing, Bearing
15296A 1 Housing, Open Bearing
14088B 1 Spacer, Spindle
44377 2 Hex Bolt, 3/8-24 x 1"
736-0247 2 Washer,
43063 3 Hex Bolt, 5/16-18 x 1"
46989 1 Belt, V Type Drive
47278 1 Belt, V Type Auger
47044 3 Pulley, V Type 4"
47026 1 Pulley, V Type
47025 1 Hex Bolt, 5/16-18 x 3-1/2"
43432 1 Hex Bolt, 3/8-16 x 2-1/2"
731-0851A 3 Chute Keeper
43661 6 Hex Bolt, 1/4,20 x 1"
43054 3 Hex Bolt, 3/8-16 x 2"
731-1300A 1 Chute, Lower
710-0896 1 Screw, 1/4-14 x 5/8"
43681 1 Carriage Bolt, 5/16-18 x 1-1/2"
24571 1 Spacer
731-1320 1 Chute, Upper
731-1313B t Guide, Cable
784-5594 1 Bracket, Cable
24472 1 Spacer, Pivot
746-0929 1 Cable, Chute Control With Clip
746-0928 1 Cable, Chute Control
43070 7. Washer, 3/8"
46959 1 Spring
46963 2 Chain
43055 1 Pin, Hair Cotter, 3/32"
43038 2 Pin, Pivot Lock
23727 1 Spacer
43088 7 Washer, 1/4"
43343 4 Pin, Hair Cotter #4 (1/8")
43350 4 Carriage Bolt, 3/8-16 x 1"
47134 3 Pin, Hair Cotter 5/64"
711-0198 1 Trunnion
24394 1 Bracket, Chute Anti-rotation
1643-60 1 Plastic Cap
63566 1 Hanger Bracket Assembly, R.H.
63567 1 Hanger Bracket Assembly, L.H.
47043 1 Keeper, Engine Pulley
46948 1 Rod, Engagement
738-0234 4 Bolt, Shoulder
24466 2 Bracket, Down Stop
47620 1 Spring
47607 1 Spring, Torsion
23625 1 Spacer
43509 1 Hex Bolt, 3/8-16 x 2-3/4" Lg.
47598 6 Hex Lock Nut, 1/4" Wash. Face
47605 1 Washer, Flat 3/8"
24558 1 Cable Bracket
47721 1 Owner's Manual
23
