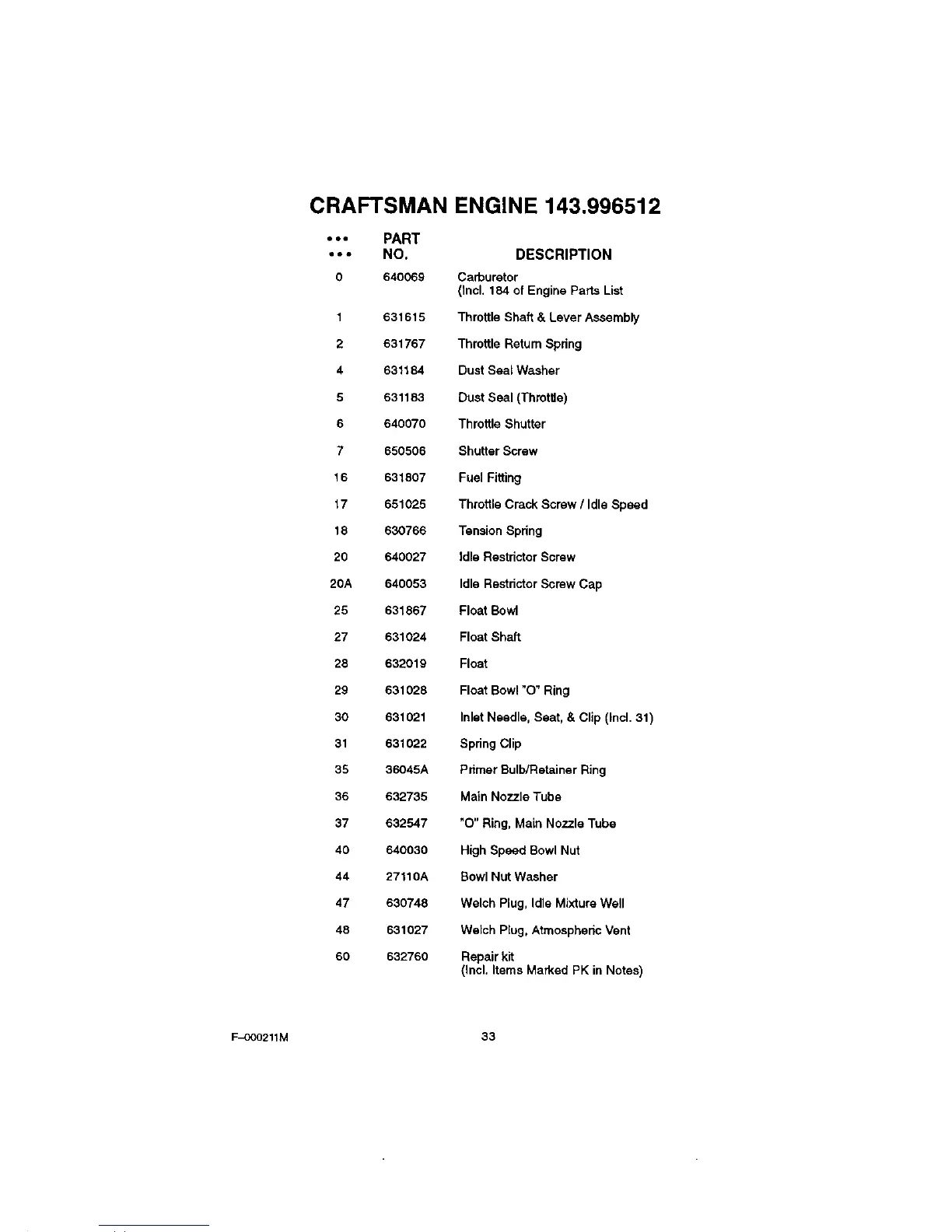

CRAFTSMAN ENGINE 143.996512
• ,. PART
• • • NO. DESCRIPTION
0 640069 Carburetor
(tncl, 184 of Engine Parts List
1 631615 Throttle Shaft & Lever Assembly
2 631767 Throttle Return Spring
4 631184 Dust Seel Washer
6 631183 Dust Seal (Throttle)
6 640070 Throttle Shutter
7 650506 Shutter Screw
16 631807 Fuel Fitting
17 651025 Throttle Crack Screw / Idle Speed
18 630766 Tension Spring
20 640027 Idle Restrictor Screw
20A 640053 Idle Restrictor Screw Cap
25 631867 Float Bowl
27 631024 Float Shaft
28 632019 Float
29 631028 Float Bowl "0" Ring
30 631021 Inlet Needle, Seat, & Clip (Incl. 31)
31 631022 Spring Clip
35 36045% Pnmer Bulb/Retainer Ring
36 632735 Main Nozzle Tube
37 632547 "0" Ring, Main Nozzle Tube
40 640030 High Speed Bowl Nut
44 27110A Bowl Nut Washer
47 630748 Welch Plug, Idle Mixture Well
48 631027 Welch Plug, Atmospheric Vent
60 632760 Repair kit
(Incl. Items Marked PK in Notes)
F-OOO211M 33
