Craftsman 580.762012 - Cylinder Barrel

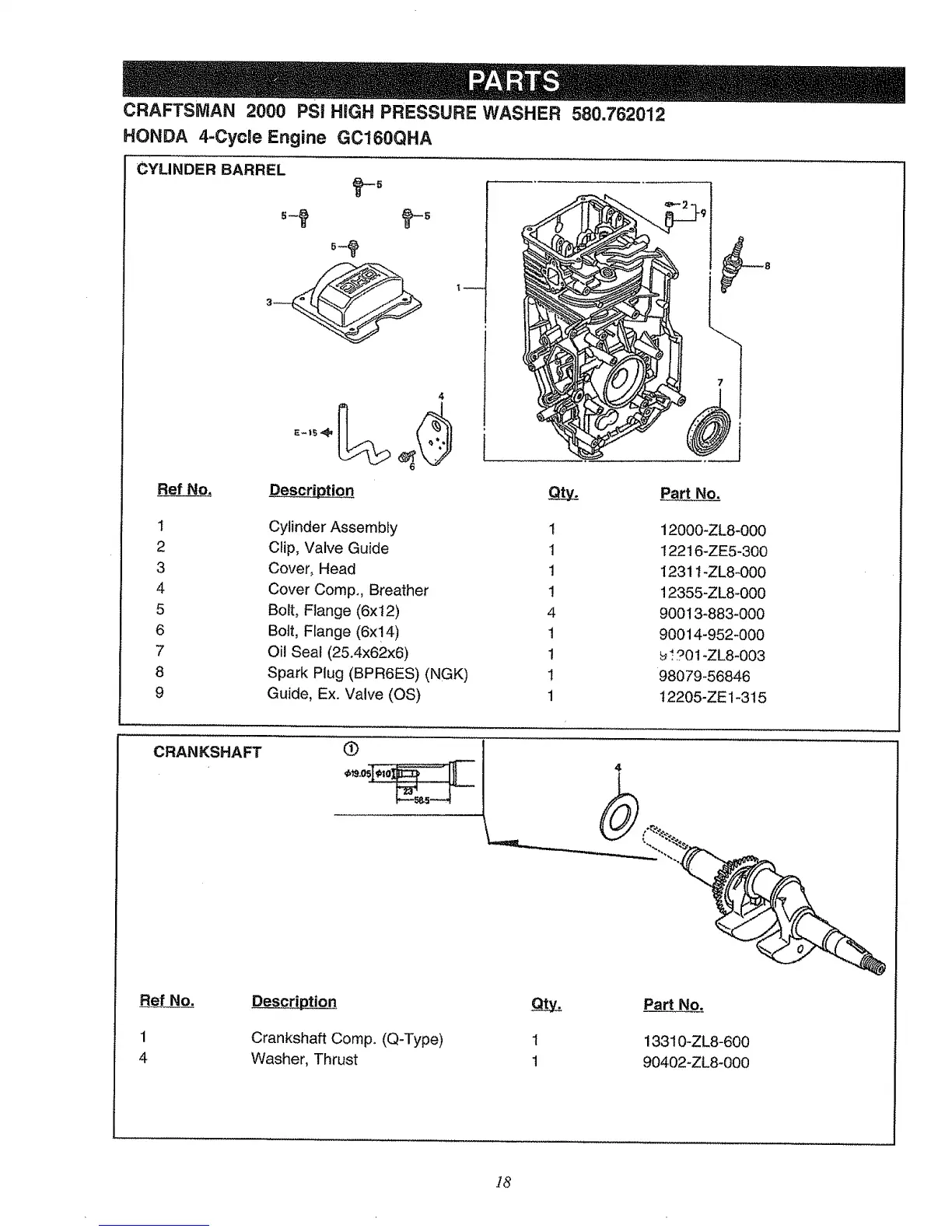

CRAFTSMAN 2000 PSi HIGH PRESSURE WASHER 580.762012
HONDA 4-Cycle Engine GC160QHA
CYLINDER BARREL
Ref No,
4
Part No.
i
1
2
3
4
5
6
7
8
9
Cylinder Assembly
Clip, Valve Guide
Cover, Head
Cover Comp., Breather
Bolt, Flange (6x12)
Bolt, Flange (6x!4)
OIl Seal (25.4x62x6)
Spark Plug (BPR6ES) (NGK)
Guide, Ex. Valve (OS)
1
1
1
!
4
1
1
1
1
12000-ZL8-000
12216-ZE5-300
1231t-ZL8_000
12355-ZL8-000
90013-883-000
90014-952-000
_!90!-ZL8-003
98079-56846
12205-ZE1-315
CRANKSHAFT
Ref No.
1
4
Crankshaft Comp. (Q-Type)
Washer, Thrust
1
1
Part No.
13310-ZL8-600
90402-ZL8-000
18
