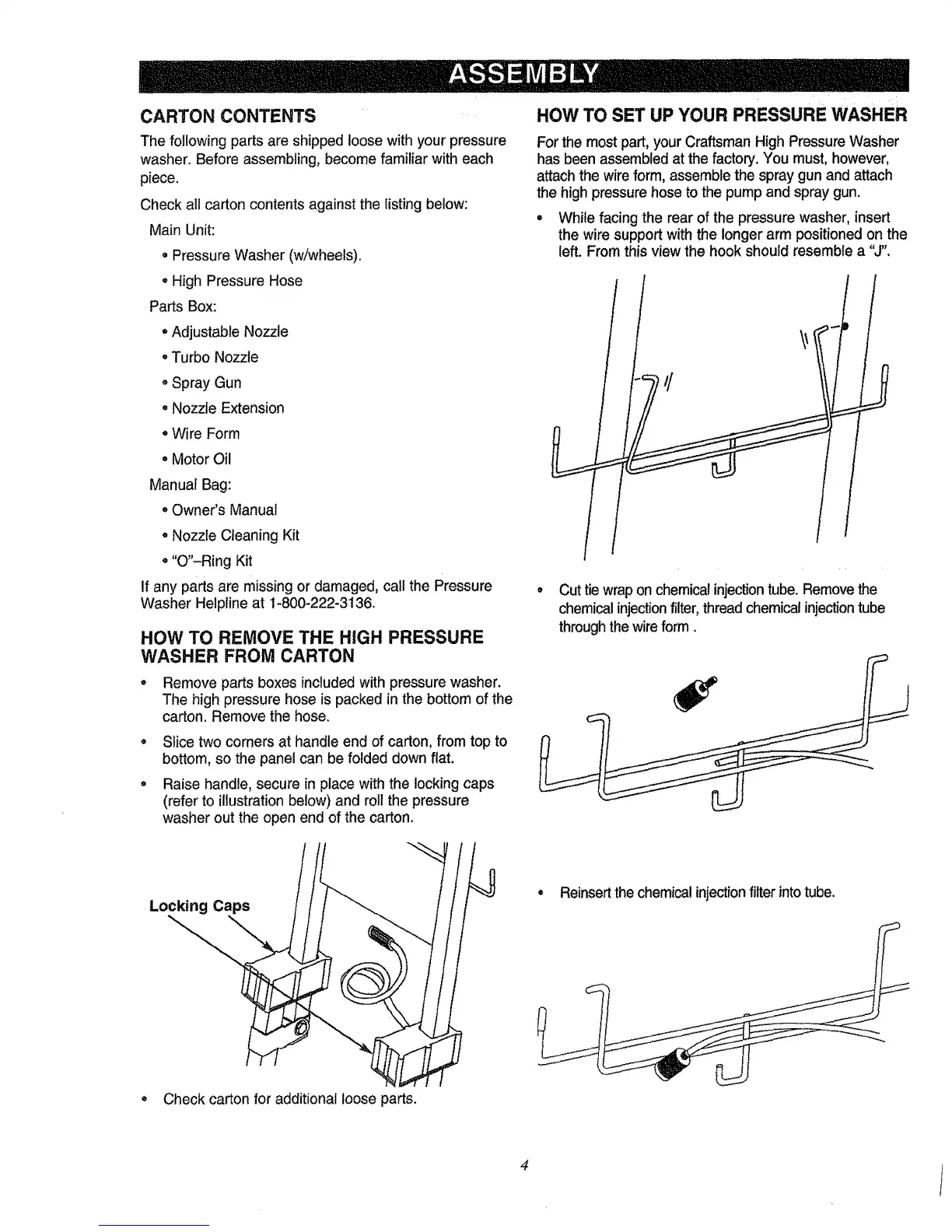

CARTON CONTENTS
The following parts are shipped loose with your pressure
washer. Before assembling, become familiar with each
piece.
Check all carton contents against the listing below:
Main Unit:
° Pressure Washer (w/wheels).
• High Pressure Hose
Parts Box:
oAdjustable Nozzle
° Turbo Nozzle
• Spray Gun
° Nozzle Extension
° Wire Form
° Motor Oil
Manual Bag:
• Owner's Manual
• Nozzle Cleaning Kit
° "O"-Ring Kit
If any parts are missing or damaged, call the Pressure
Washer Helpline at t-800-222-3136.
HOW TO REMOVE THE HIGH PRESSURE
WASHER FROM CARTON
° Remove parts boxes includedwith pressurewasher.
The high pressure hose is packed in the bottom of the
carton. Remove the hose.
Slice two corners at handle end of carton, from top to
bottom, so the panel can be folded down flat.
Raise handle, secure in place with the locking caps
(refer to illustration below) and roll the pressure
washer out the open end of the carton.
HOW TO SET UP YOUR PRESSURE WASHER
Forthe most part, your Craftsman High Pressure Washer
has been assembledat the factory. You must,however,
attachthe wireform, assemblethe spray gun and attach
the highpressurehoseto the pump and spray gun.
• While facing the rear of the pressure washer, insert
the wire support with the longer arm positioned on the
left. From this view the hook should resemble a "J".
• Cut tie wrapon chemical injection tube.Remove the
chemical injectionfilter, thread chemical injection tube
through the wire form.
Locking Caps
Check carton for additional loose parts.
• Reinsert the chemical injectionfilter intotube.
4
i
