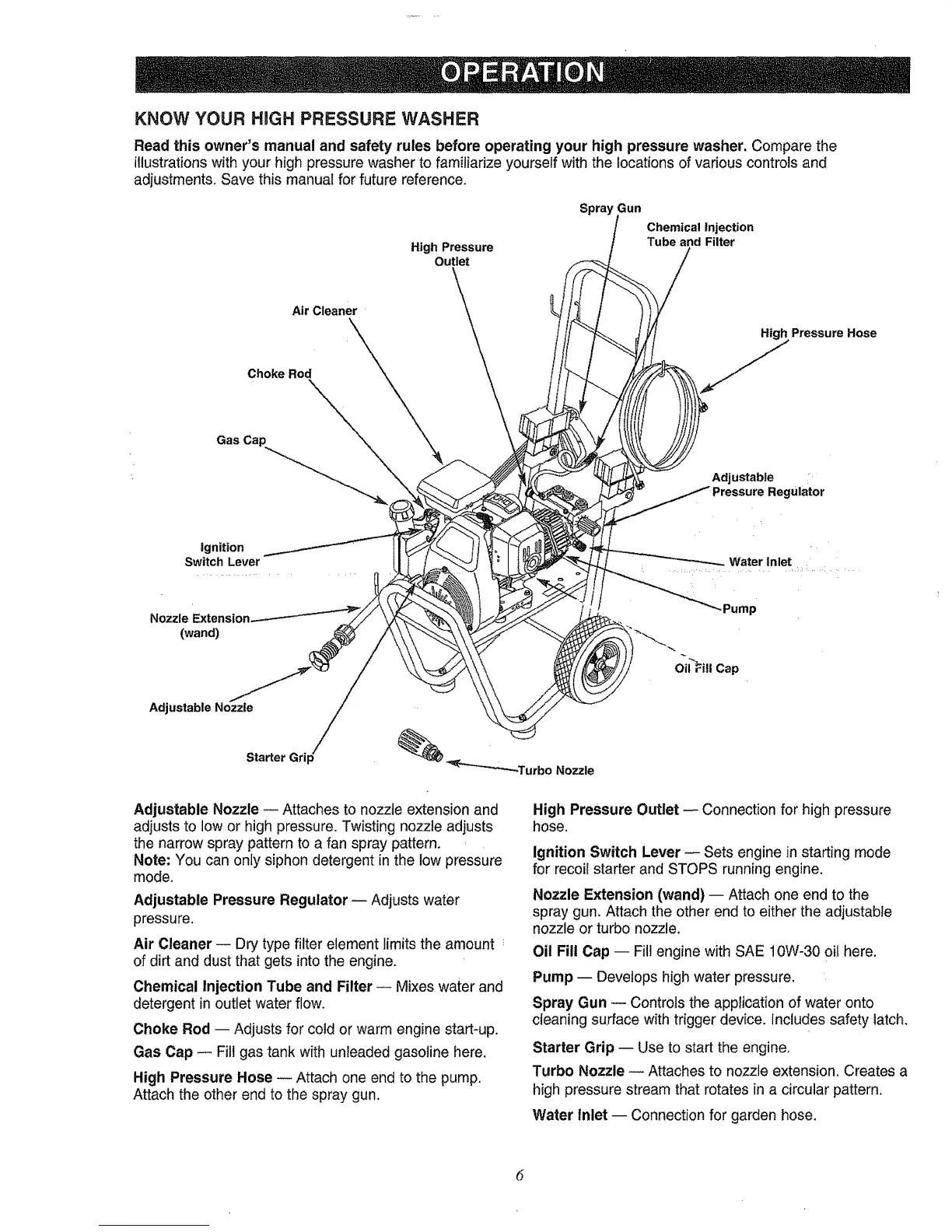

KNOW YOUR HnGH PRESSURE WASHER
Read this owner's manual and safety rules before operating your high pressure washer. Compare the
illustrations with your high pressure washer to familiarize yourself with the locations of various controls and
adjustments. Save this manual for future reference.
High Pressure
Outlet
Spray Gun
Chemical Injection
Tube and Filter
Air Cleaner
Pressure Hose
Choke Rod
Adjustable '
Regulator
ignition
Switch Lever Water Inlet
Nozzle Exte=
(wand)
_Turbo Nozzle
Adjustable Nozzle /
Starter Grip
_Pump
Oil FillCap
Adjustable Nozzle -- Attaches to nozzle extension and
adjusts to low or high pressure. Twisting nozzle adjusts
the narrow spray pattern to a fan spray pattern,
Note: You can only siphon detergent in the low pressure
mode.
Adjustable Pressure Regulator -- Adjusts water
pressure,
Air Cleaner -- Dry type filter element limits the amount
of dirt and dust that gets intothe engine.
Chemical Injection Tube and Filter -- Mixes water and
detergent in outlet water flow.
Choke Rod -- Adjusts for cold or warm engine start-up.
Gas Cap -- Fill gas tank with unleaded gasoline here,
High Pressure Hose -- Attach one end to the pump.
Attach the other end to the spray gun.
High Pressure Outlet -- Connection for high pressure
hose.
Ignition Switch Lever -- Sets engine in starting mode
for recoil starter and STOPS running engine.
Nozzle Extension (wand) -- Attach one end to the
spray gun. Attach the other end to either the adjustable
nozzle or turbo nozzle.
Oil Fill Cap -- Fill engine with SAE 10W-30 oit here.
Pump -- Devetops high water pressure.
Spray Gun -- Controls the application of water onto
cieaning surface with trigger device. Includes safety latch,
Starter Grip -- Use to start the engine,
Turbo Nozzle -- Attaches to nozzle extension. Creates a
high pressure stream that rotates in a circular pattern,
Water Inlet -- Connection for garden hose.
