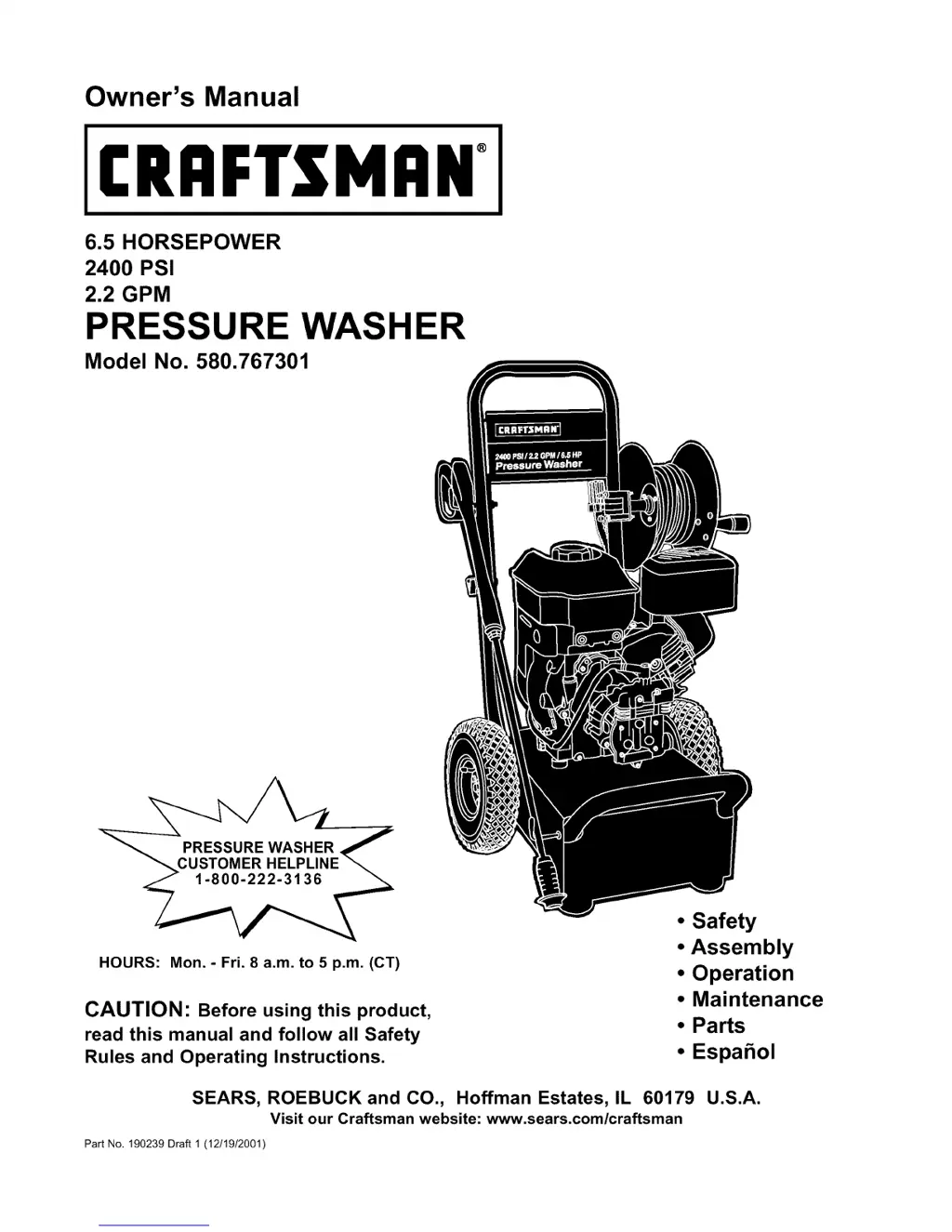

Owner's Manual
CRRFTSMRN°
6.5 HORSEPOWER
2400 PSI
2.2 GPM
PRESSUR WASHER
Model No. 580.767301
HOURS: Mon.- Fri. 8 a.m. to 5 p.m. (CT)
CAUTION" Before using this product,
read this manual and follow all Safety
Rules and Operating Instructions.
• Safety
• Assembly
• Operation
• Maintenance
• Parts
• Espahol
SEARS, ROEBUCK and CO., Hoffman Estates, IL 60179 U.S.A.
Visit our Craftsman website: www.sears.com/craftsman
Part No. 190239 Draft 1 (12/19/2001)

Table of Contents

Questions and Answers

  • J
    jenkinsjoAug 3, 2025
    Why does my Craftsman 580.767301 engine will not start or runs rough?
    • E
      Ebony CarrAug 3, 2025
      Your Craftsman Pressure Washer might not start or run roughly due to several reasons: * The air cleaner might be dirty, so you should clean or replace it. * The gasoline tank may be empty, so you should fill it. * The gasoline may be stale, so you should drain the tank and fill it with fresh fuel. * The spark plug wire may not be connected, so you should connect it. * The spark plug may be bad, so you should replace it. * There may be water in the gasoline, so you should drain the tank and fill it with fresh fuel. * It may be overchoking, so you should open the choke fully and crank the engine.
  • A
    Alexandra FreemanAug 8, 2025
    What to do if my Craftsman 580.767301 Pressure Washer pump fails to produce pressure?
    • K
      Karen HerringAug 8, 2025
      If your Craftsman Pressure Washer pump fails to produce pressure, produces erratic pressure, chatters, loses pressure, or has low water volume, consider the following: * Ensure the nozzle is not in low pressure mode by pulling the nozzle backward for high pressure mode. * Check for and clear any blockage in the water inlet. * Ensure an adequate water supply. * Straighten any kinks or patch any leaks in the inlet hose. * Check and clean the inlet hose strainer. * Ensure the water supply is not over 100°F; provide a cooler water supply. * Clear any blockages or leaks in the high pressure hose. * Clean the nozzle if obstructed. * Replace the gun if it leaks.
  • S
    Shannon SandersAug 11, 2025
    What to do if Craftsman Pressure Washer engine shuts down during operation?
    • A
      Anthony RossAug 11, 2025
      If your Craftsman Pressure Washer engine shuts down during operation, the most likely cause is that the fuel tank is empty. Refill the fuel tank.
  • E
    Erica ScottAug 16, 2025
    Why is my Craftsman 580.767301 Pressure Washer engine lacking power?
    • M
      Michael HopkinsAug 16, 2025
      If your Craftsman Pressure Washer engine lacks power, the air filter is likely dirty. Replace the air filter.
  • A
    April MccarthyAug 20, 2025
    Why is detergent not mixing with spray in my Craftsman 580.767301?
    • B
      brianhawkinsAug 21, 2025
      If detergent fails to mix with the spray in your Craftsman Pressure Washer, consider the following: * Ensure the detergent siphoning tube is submerged in the detergent. * Clean or replace the chemical filter/detergent siphoning tube if it is clogged. * Ensure the nozzle is in low pressure mode by pushing the nozzle forward.
  • J
    James SmithAug 25, 2025
    What to do if Craftsman 580.767301 engine runs good at no-load but bogs when load is added?
    • J
      John WhiteheadAug 25, 2025
      If your Craftsman Pressure Washer engine runs well without a load but bogs down when a load is added, it may be due to slow engine speed. Move the throttle control to the FAST position.
  • J
    jenniferdyerAug 29, 2025
    Why does my Craftsman 580.767301 Pressure Washer engine hunts or falters?
    • E
      Erin StanleyAug 29, 2025
      If your Craftsman Pressure Washer engine hunts or falters, it may be because the choke is opened too soon. Move the choke to the halfway position until the engine runs smoothly.
