38

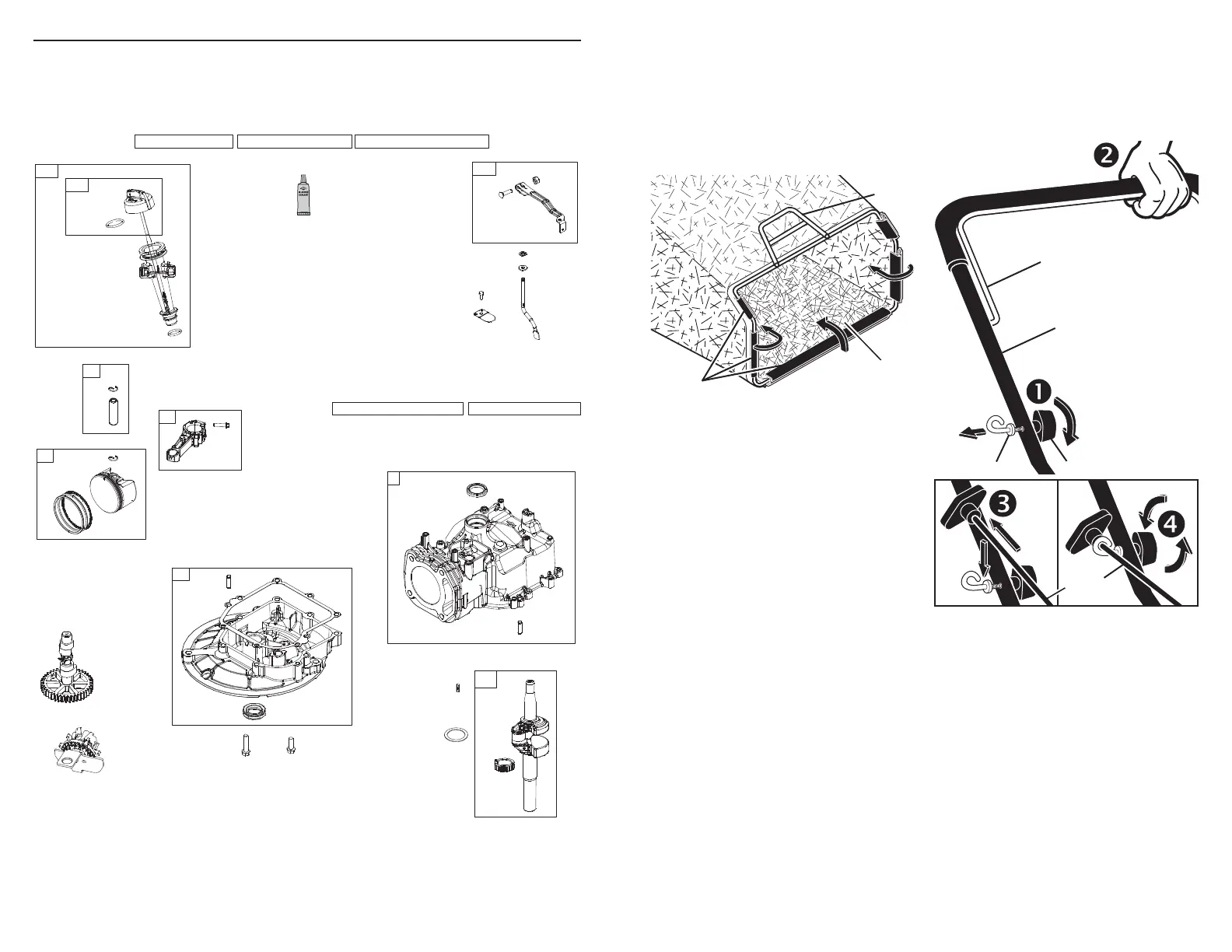

MODEL NUMBER 104M02-0001-F1BRIGGS & STRATTON 4-CYCLE ENGINE
24
26
718
27
1
3
25
28
46
16
20
12
4
1264
505
616
562
615
227
1263
22
404
718
22A
741
32
29
27
43
524
847
523
842
598
48
13301329
10581036
850
7
TO ASSEMBLE GRASS CATCH ER
1. Put grass catcher frame into grass bag
with rigid part of bag on the bottom.
Make sure the frame handle is outside
of the bag top.
2. Slip vinyl bindings over frame.
NOTE: If vinyl bindings are too stiff, hold
them in warm water for a few minutes. If
bag gets wet, let it dry before using.
TO INSTALL ATTACHMENTS
Your lawn mower was shipped ready to be
used as a mulcher. To convert to bagging or
discharging, see “TO CON VERT MOWER” in
the Operation section of this manual.
Frame
handle
Frame
opening
Vinyl
bindings
INSTALL STARTER ROPE
1. Loosen T-knob.
2. Hold control bar against upper handle.
3. Slowly pull engine starter rope out until
rope will slip into loop of rope guide.
4. Tighten T-knob.
Upper handle
Control bar
Engine
starter rope
Rope guide
T-Knob
To Next Page
