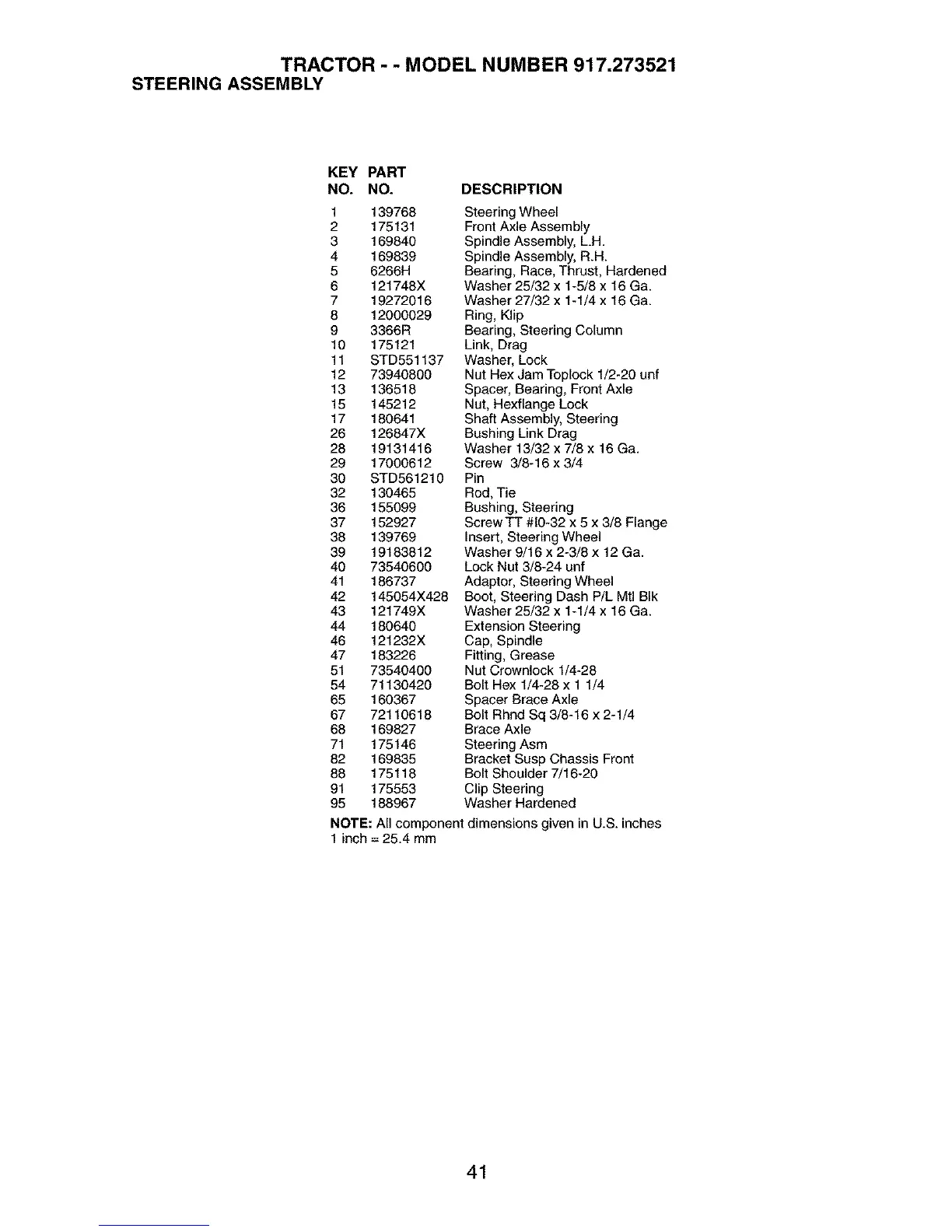

Craftsman 917.273521 - Page 41

TRACTOR - - MODEL NUMBER 917.273521
STEERINGASSEMBLY
KEY PART
NO. NO. DESCRIPTION
1 139768 Steering Wheel
2 175131 Front Axle Assembly
3 169840 Spindle Assembly, L.H.
4 169839 Spindle Assembly, R.H.
5 6266H Bearing, Race, Thrust, Hardened
6 121748X Washer 25/32 x 1-5/8 x 16 Ga.
7 19272016 Washer 27/32 x 1-1/4 x 16 Ga.
8 12000029 Ring, Klip
9 3366R Bearing, Steering Column
10 175121 Link, Drag
11 STD551137 Washer, Lock
12 73940800 Nut Hex Jam Teplock 1/2-20 unf
13 136518 Spacer, Bearing, Front Axle
15 145212 Nut, Hexflange Lock
17 180641 Shaft Assembly, Steering
26 126847X Bushing Link Drag
28 19131416 Washer 13/32 x 7/8 x 16 Ga.
29 17000612 Screw 3/8-16 x 3/4
30 STD561210 Pin
32 130465 Red, Tie
36 155099 Bushing, Steering
37 152927 Screw TT #t0-32 x 5 x 3/8 Flange
38 139769 Insert, Steering Wheel
39 19183812 Washer 9/16 x 2-3/8 x 12 Ga.
40 73540600 Lock Nut 3/8-24 unf
41 186737 Adaptor, Steering Wheel
42 145054X428 Boot, Steering Dash P/L Mtl BIk
43 121749X Washer 25/32 x 1-1/4 x 16 Ga.
44 180640 Extension Steering
46 121232X Cap, Spindle
47 183226 Fitting, Grease
51 73540400 Nut Crownlock 1/4-28
54 71130420 Bolt Hex 1/4-28 x 1 1/4
65 160367 Spacer Brace Axle
67 72110618 Bolt Rhnd Sq 3/8-16 x 2-1/4
68 169827 Brace Axle
71 175146 Steering Asm
82 169835 Bracket Susp Chassis Front
88 175118 Bolt Shoulder 7/16-20
91 175553 Clip Steering
95 188967 Washer Hardened
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
