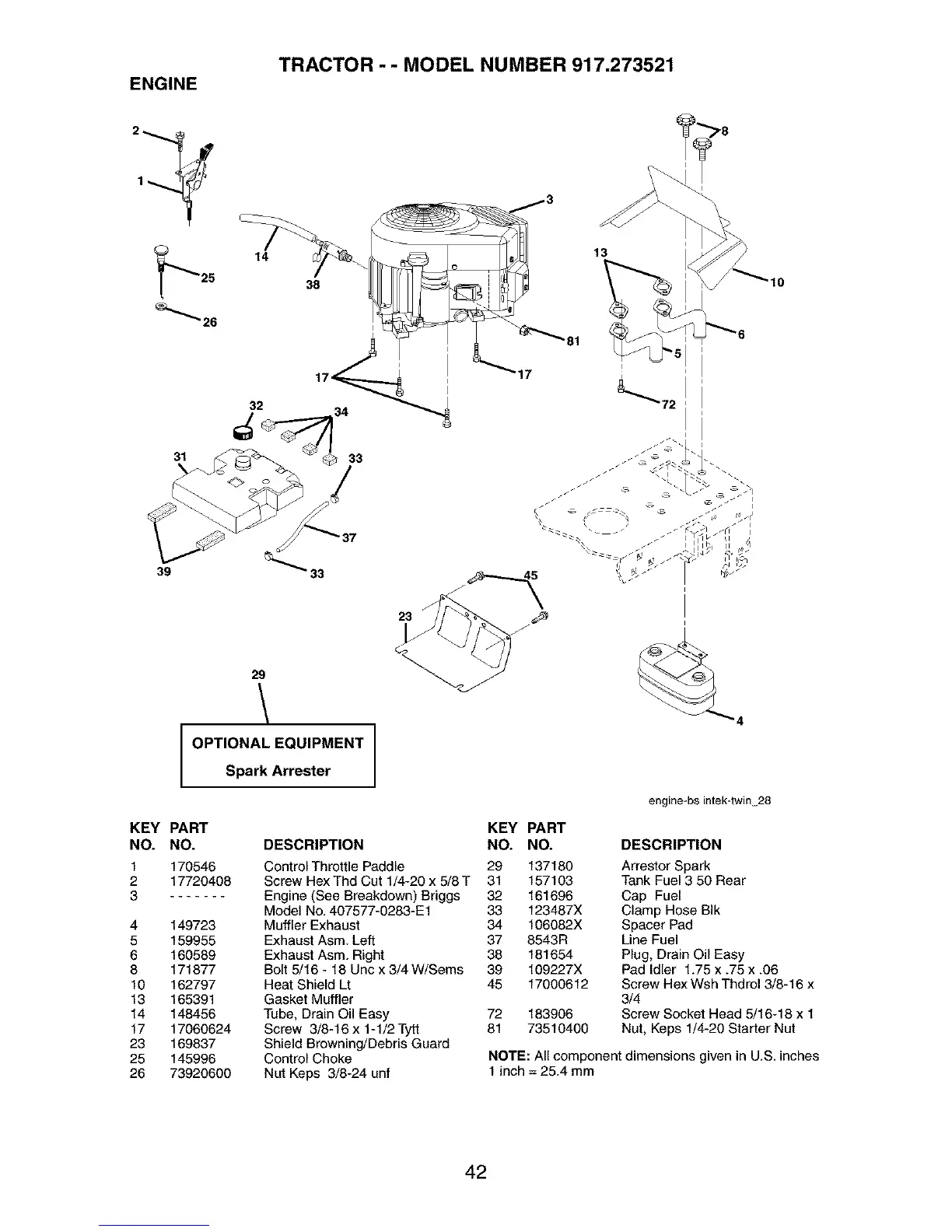

Craftsman 917.273521 - Page 42

TRACTOR - - MODEL NUMBER 917.273521
ENGINE
2 •
14
38
13
32
31 33
39
23
29
OPTIONAL EQUIPMENT
Spark Arrester
KEY PART
NO. NO.
1 170546
2 17720408
3
4 149723
5 159955
6 160589
8 171877
10 162797
13 165391
14 148456
17 17060624
23 169837
25 145996
26 73920600
DESCRIPTION
KEY PART
NO. NO.
Control Throttle Paddle 29 137180
Screw HexThd Out 1/4-20 x 5/8T 31 157103
Engine (See Breakdown) Briggs 32 161696
Model No. 407577-0283-E1 33 123487X
Muffler Exhaust 34 106082X
Exhaust Asm. Left 37 8543R
Exhaust Asm. Right 38 181654
Bolt 5/16 - 18 Unc x 3/4 W/Sems 39 109227X
Heat Shield Lt 45 17000612
Gasket Muffler
Tube, Drain Oil Easy 72 183906
Screw 3/8-16 x 1-1/2 Tytt 81 73510400
Shield Browning/Debris Guard
Control Choke
Nut Keps 3/8-24 unf
engine*bs intek*twin 28
DESCRIPTION
Arrestor Spark
Tank Fuel 3 50 Bear
Cap Fuel
Clamp Hose BIk
Spacer Pad
Line Fuel
Plug, Drain Oil Easy
Pad Idler 1.75 x .75 x .06
Screw Hex Wsh Thdrol 3/8-16 x
3/4
Screw Socket Head 5/16-18 x 1
Nut, Keps 1/4-20 Starter Nut
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
42
