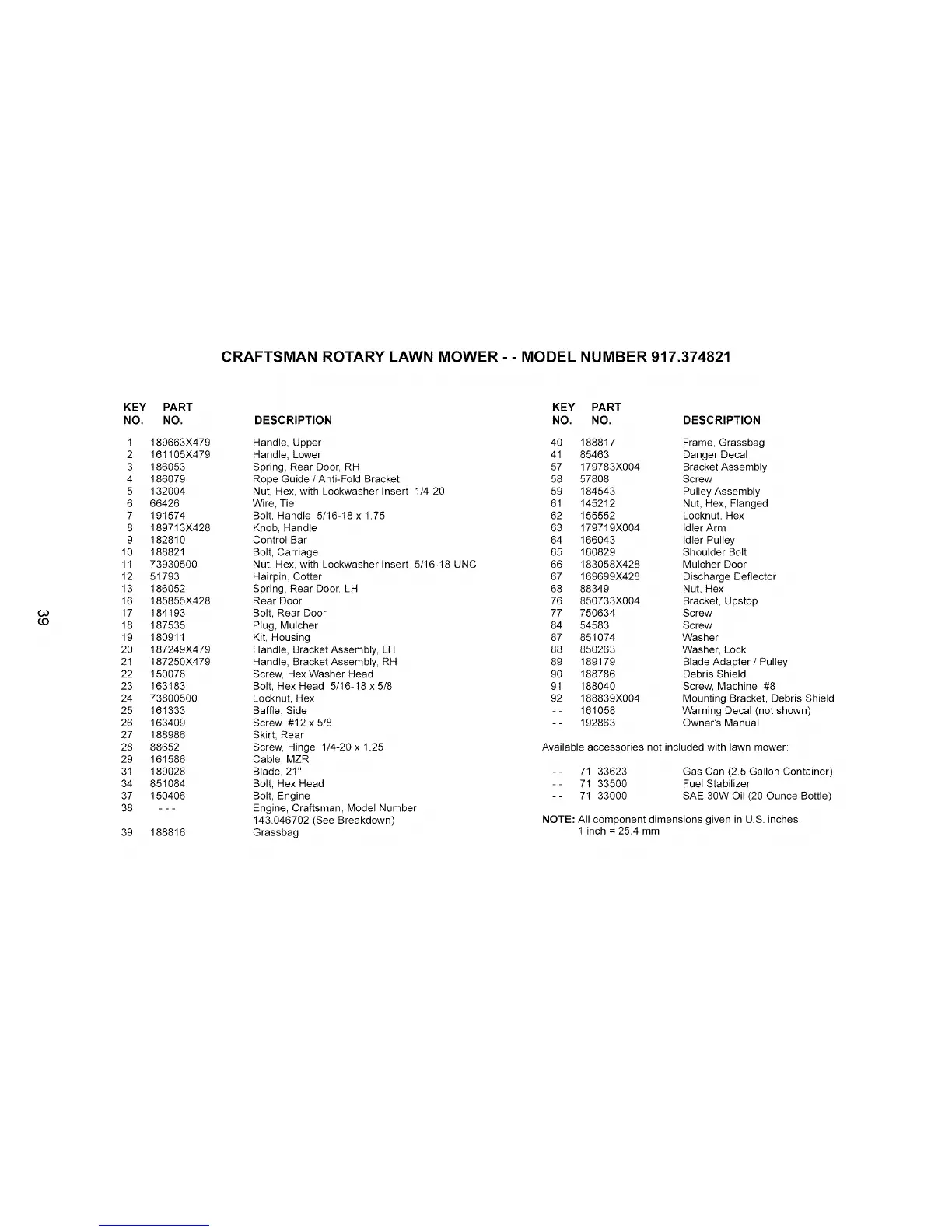

CRAFTSMAN ROTARY LAWN MOWER - - MODEL NUMBER 917.374821
Go
(.O
KEY
NO.
1
2
3
4
5
6
7
8
9
lO
11
12
13
16
17
18
19
2o
21
22
23
24
25
26
27
28
29
31
34
37
38
39
PART
NO,
189663X479
161105X479
186053
186079
132004
66426
191574
189713X428
182810
188821
73930500
51793
186052
185855X428
184193
187535
180911
187249X479
187250X479
150078
163183
73800500
161333
163409
188986
88652
161586
189028
851084
150406
188816
KEY PART
DESCRIPTION NO. NO. DESCRIPTION
Handle, Upper 40 188817 Frame, Grassbag
Handle, Lower 41 85463 Danger Decal
Spring, Rear Door, RH 57 179783X004 Bracket Assembly
Rope Guide / Anti-Fold Bracket 58 57808 Screw
Nut, Hex, with Lockwasher Insert 1/4-20 59 184543 Pulley Assembly
Wire, Tie 61 145212 Nut, Hex, Flanged
Bolt, Handle 5!16-18 x 1.75 62 155552 Locknut, Hex
Knob, Handle 63 179719X004 Idler Arm
Control Bar 64 166043 Idler Pulley
Bolt, Carriage 65 160829 Shoulder Bolt
Nut, Hex, with Lockwasher Insert 5/16-18 UNC 66 183058X428 Mulcher Door
Hairpin, Cotter 67 169699X428 Discharge Deflector
Spring, Rear Door, LH 68 88349 Nut, Hex
Rear Door 76 850733X004 Bracket, Upstop
Bolt, Rear Door 77 750634 Screw
Plug, Mulcher 84 54583 Screw
Kit, Housing 87 851074 Washer
Handle, Bracket Assembly, LH 88 850263 Washer, Lock
Handle, Bracket Assembly, RH 89 189179 Blade Adapter / Pulley
Screw, Hex Washer Head 90 188786 Debris Shield
Bolt, Hex Head 5!16-18 x 5!8 91 188040 Screw, Machine #8
Locknut, Hex 92 188839X004 Mounting Bracket, Debris Shield
Baffle, Side - - 161058 Warning Decal (not shown)
Screw #12 x 5/8 - - 192863 Owner's Manual
Skirt, Rear
Screw, Hinge 1/4-20 x 1.25 Available accessories not included with lawn mower:
Cable, MZR
Blade, 21" - - 71 33623 Gas Can (2.5 Gallon Container)
Bolt, Hex Head - - 71 33500 Fuel Stabilizer
Bolt, Engine - - 71 33000 SAE 30W Oil (20 Ounce Bottle)
Engine, Craftsman, Model Number
143.046702 (See Breakdown) NOTE: All component dimensions given in U.S. inches.
Grassbag 1 inch = 25.4 mm
