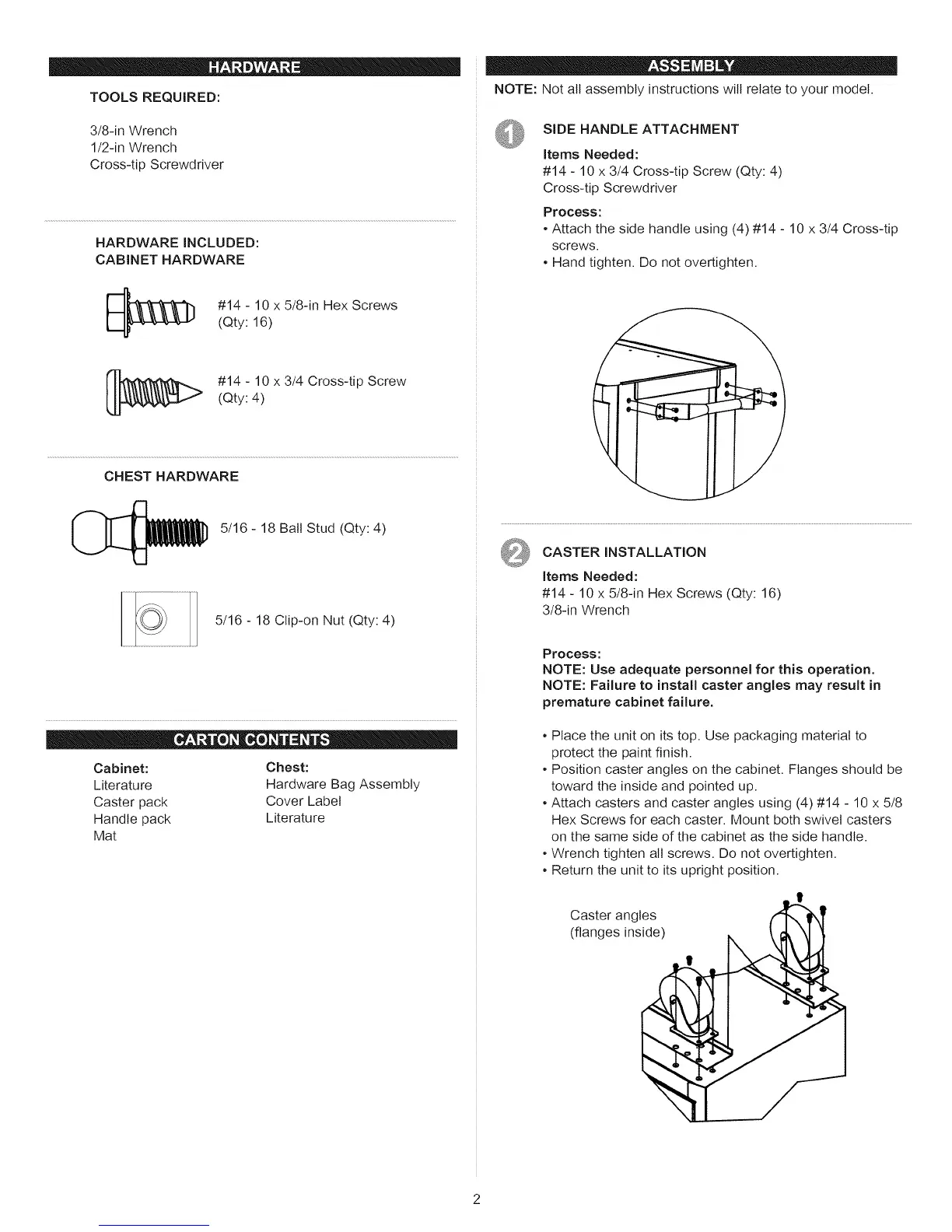

Craftsman Accessory User Manual

TOOLSREQUIRED:
3/8-inWrench
1/2-inWrench
Cross-tipScrewdriver
HARDWAREINCLUDED:
CABINETHARDWARE
#14-10x5/8-inHexScrews(Qty:16)
#14-10x3/4Cross-tipScrew
(Qty:4)
CHESTHARDWARE
5/16-18BallStud(Qty:4)
5/16-18Clip-onNut(Qty:4)
Cabinet: Chest:
Literature HardwareBagAssembly
Casterpack CoverLabel
Handlepack Literature
Mat
NOTE:Notallassemblyinstructionswillrelatetoyourmodel.
SIDE HANDLE ATTACHMENT
Items Needed:
#14 - 10 x 3/4 Cross-tip Screw (Qty: 4)
Cross-tip Screwdriver
Process:
• Attach the side handle using (4) #14 - 10 x 3/4 Cross-tip
screws.
• Hand tighten. Do not overtighten.
t
@
CASTER INSTALLATION
Items Needed:
#14 - 10 x 5/8-in Hex Screws (Qty: 16)
3/8-in Wrench
Process:
NOTE: Use adequate personnel for this operation.
NOTE: Failure to install caster angles may result in
premature cabinet failure.
• Place the unit on its top. Use packaging material to
protect the paint finish.
• Position caster angles on the cabinet. Flanges should be
toward the inside and pointed up.
• Attach casters and caster angles using (4) #14 - 10 x 5/8
Hex Screws for each caster. Mount both swivel casters
on the same side of the cabinet as the side handle.
• Wrench tighten all screws. Do not overtighten.
• Return the unit to its upright position.
Caster angles
(flanges inside)
