Craftsman C210 User Manual

7

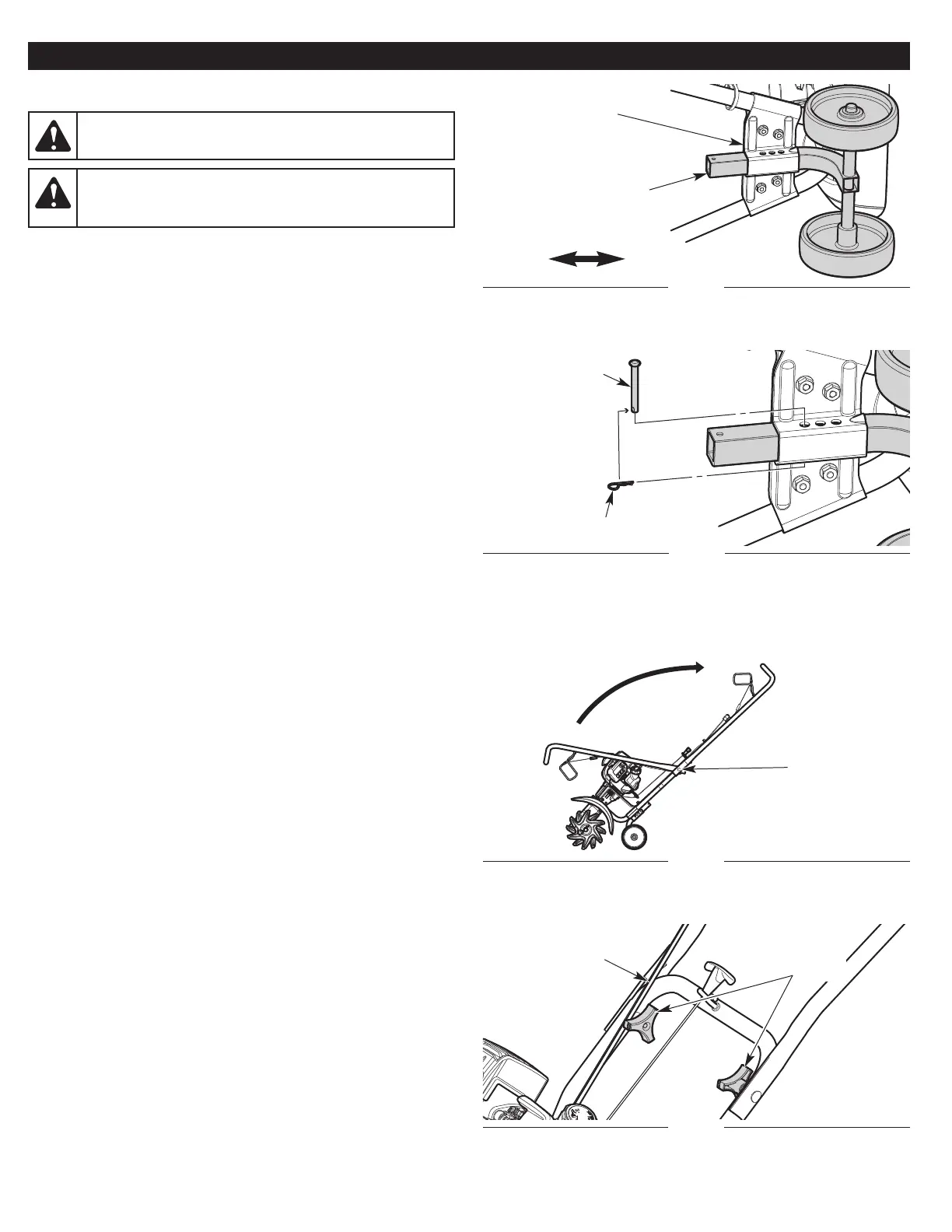

INSTALLING AND ADJUSTING THE WHEEL ASSEMBLY
Installing the Wheel Assembly
1. Set the unit on its side (Fig. 1).
2. Insert the wheel assembly into the wheel bracket (Fig. 1).
3. Insert the clevis pin through the wheel bracket and wheel
assembly and lock it in place with the cotter pin (Fig. 2).
NOTE: It may be necessary to adjust the position of the wheel
assembly before using the unit.
Adjusting the Wheel Assembly
1. Set the unit on its side (Fig. 1).
2. Remove the cotter pin and the clevis pin from the wheel bracket
and wheel assembly (Fig. 2).
3. Adjust the height by moving the wheel assembly along the wheel
bracket (Fig. 1).
4. Insert the clevis pin through the wheel bracket and assembly
and lock it in place with the cotter pin (Fig. 2).
NOTE: Moving the wheel assembly down will raise the wheel height.
Moving the wheel assembly up will lower the wheel height.
WARNING: To avoid injury from the tines, wear heavy
gloves and a long sleeve shirt when installing the wheel
assembly.
WARNING: To prevent serious personal injury, the wheel
assembly must be installed before operating the unit.
POSITIONING THE HANDLEBAR
1. Set the unit upright.
2. Loosen the knobs (Fig. 4).
3. Swing the handlebar up into the operating position (Fig. 3).
NOTE: Take care not to pinch the cables when positioning the
handlebar (Fig. 4).
4. Tighten the knobs securely.
NOTE: Do not over tighten the knobs.
5. Readjust the cables so they are smooth and tight against the
handlebar.
Fig. 3
Knobs
Fig. 4
Cables
Knobs
Fig. 1
Wheel Assembly
Wheel Bracket
Lower Raise
ASSEMBLY
Fig. 2
Clevis Pin
Cotter Pin
