ENGLISH
22

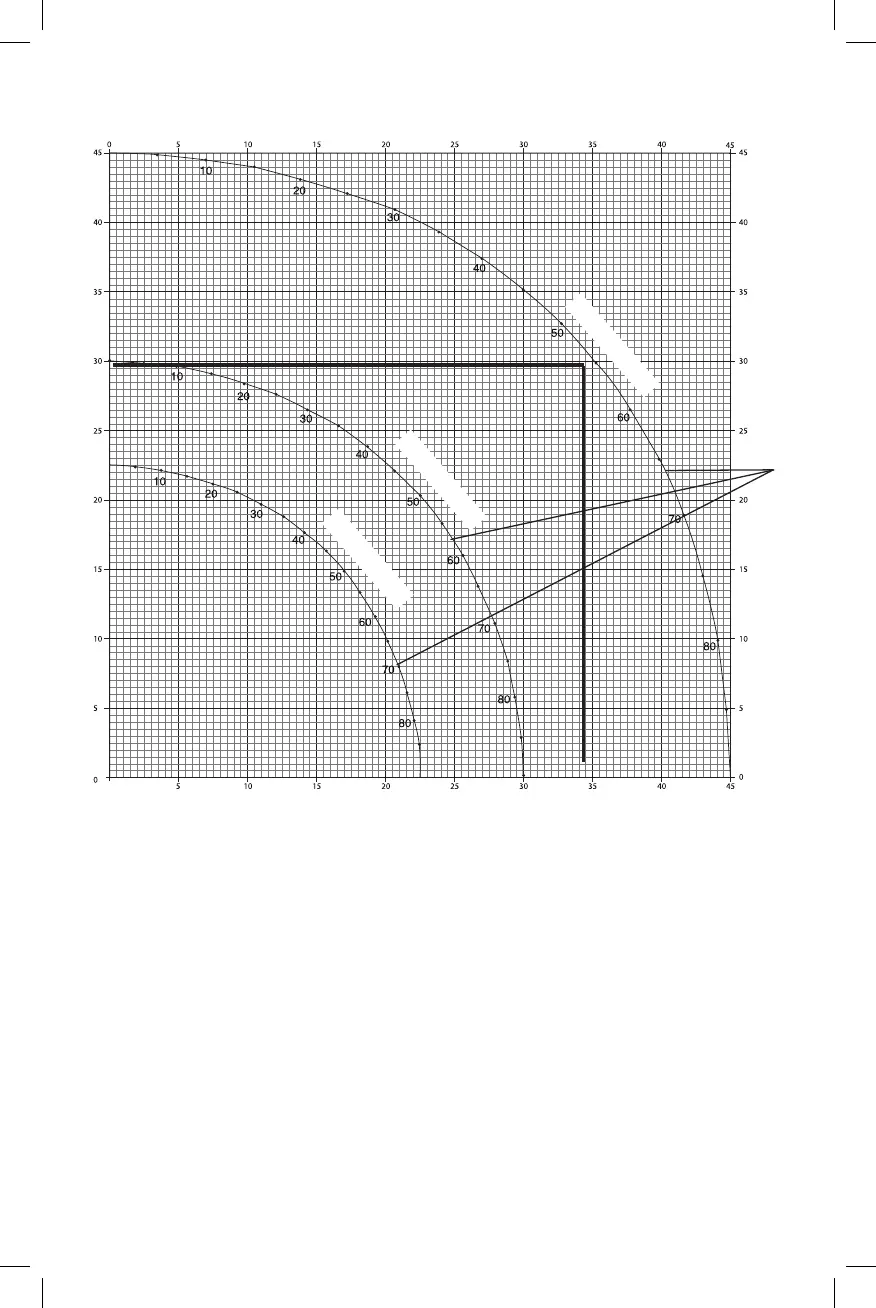

TABLE 1: COMPOUND MITER CUT
(position wood with broad flat side on the table and the narrow edge against the fence)
SET THIS MITER ANGLE ON SAW
ANGLE OF SIDE OF BOX (ANGLE A)
SQUARE BOX
6-SIDED BOX
SET THIS BEVEL ANGLE ON SAW
8-SIDED BOX
