Craftsman CMPBN18 User Manual

ENGLISH
6

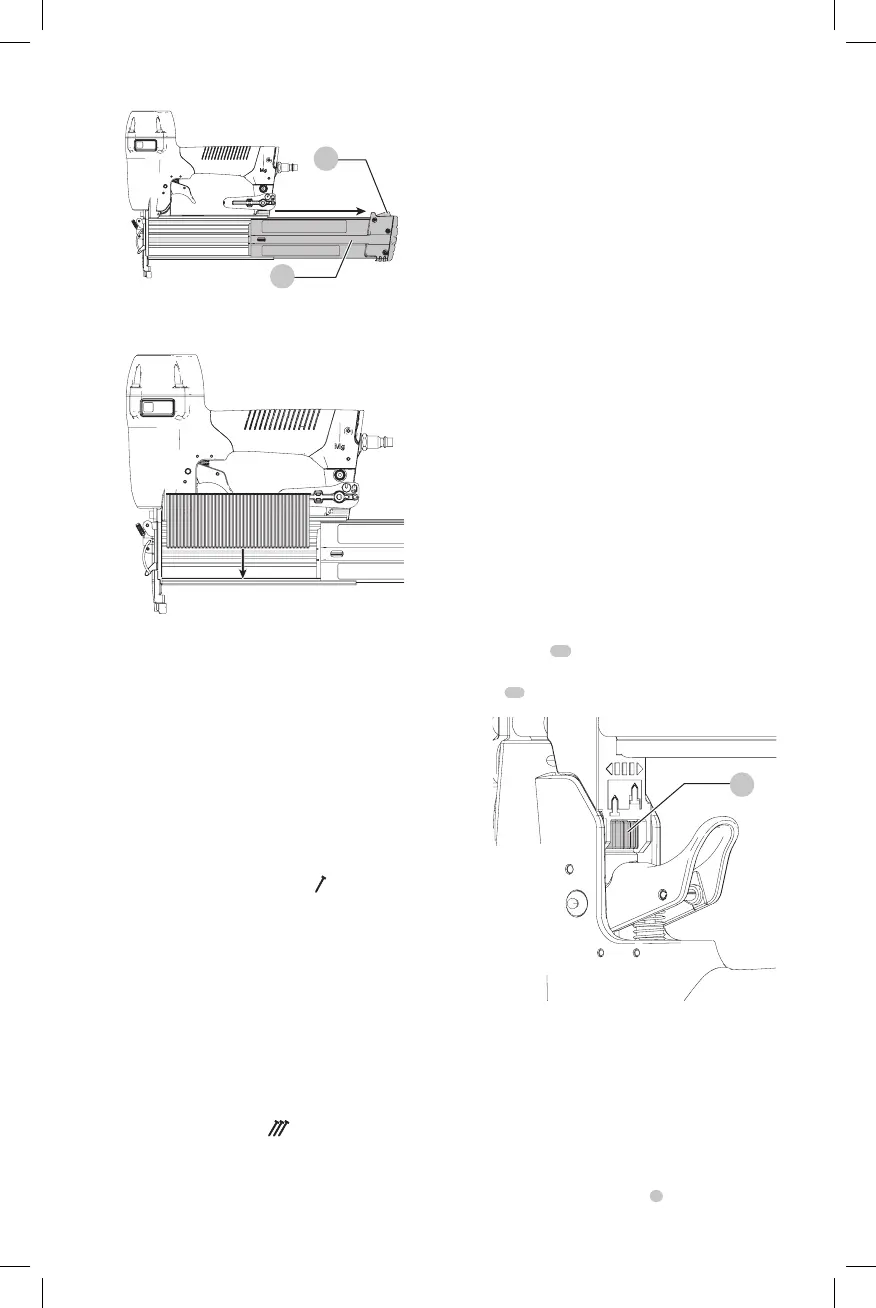

Fig. D
6
5
3. With magazine fully open insert fasteners. Points must
be against bottom of magazine.
Fig. E
4. Push magazine forward.
5. Continue pushing until magazine release lever
isengaged.
Actuating Tool

WARNING: To reduce the risk of injury, Always wear
proper eye [ANSI Z87.1 (CAN/CSA Z94.3)] and hearing
protection [ANSI S12.6 (S3.19)] when operating
thistool.
The tool can be actuated using one of two modes:
single sequential action trigger mode and bump action
triggermode.
Sequential Action Trigger - Gray
Trigger (Fig. A)
The sequential action trigger’s intended use is for
intermittent fastening where very careful and accurate
placement is desired.
To Operate the Nailer in Sequential Action Mode
1. Depress the contact trip firmly against the work surface.
2. Pull the trigger.

WARNING: A fastener will be driven each time the
trigger is pulled as long as the contact trip remains
depressed which could result in accidental driving.
Bump Action Trigger - Black Trigger
(Fig. A)
The bump action trigger’s intended use is for rapid
fastening on flat, stationary surfaces.
Using the bump action trigger, two methods are available:
place actuation and bump actuation.
To Operate the Tool Using the Place
ActuationMethod
1. Push the contact trip against the work surface.
2. Pull the trigger.
3. Release the trigger and allow the tool to recoil off
theworkpiece.
To Operate the Tool Using the Bump
ActuationMethod
1. Pull the trigger.
2. Push the contact trip against the work surface. As long
as the trigger is pulled, the tool will drive a fastener
every time the contact trip is depressed. This allows the
user to drive multiple fasteners in sequence.

WARNING: Do not keep trigger pulled when tool is
not in use.
Adjusting Depth (Fig. F)

WARNING: To reduce risk of serious injury from
accidental actuation when attempting to adjust
depth, ALWAYS:
• Disconnect the tool from the air supply.
• Avoid contact with trigger during adjustments.
The depth that the fastener is driven can be adjusted using
the depth adjustment next to the trigger of the tool.
1. To drive the fastener shallower, rotate the depth
setting wheel
11
to the right.
2. To drive a fastener deeper, rotate the depth setting
wheel
11
to the left.
Fig. F
11
Clearing a Jammed Nail (Fig. A, G, H)

WARNING: Disconnect the tool from the air supply
and remove fasteners from magazine before making
adjustments or personal injury may result.
If a nail becomes jammed in the nosepiece, keep the tool
pointed away from you and follow these instructions
toclear:
1. Disconnect the tool from the air supply lever.
2. Release magazine release lever
6
from behind nails.
