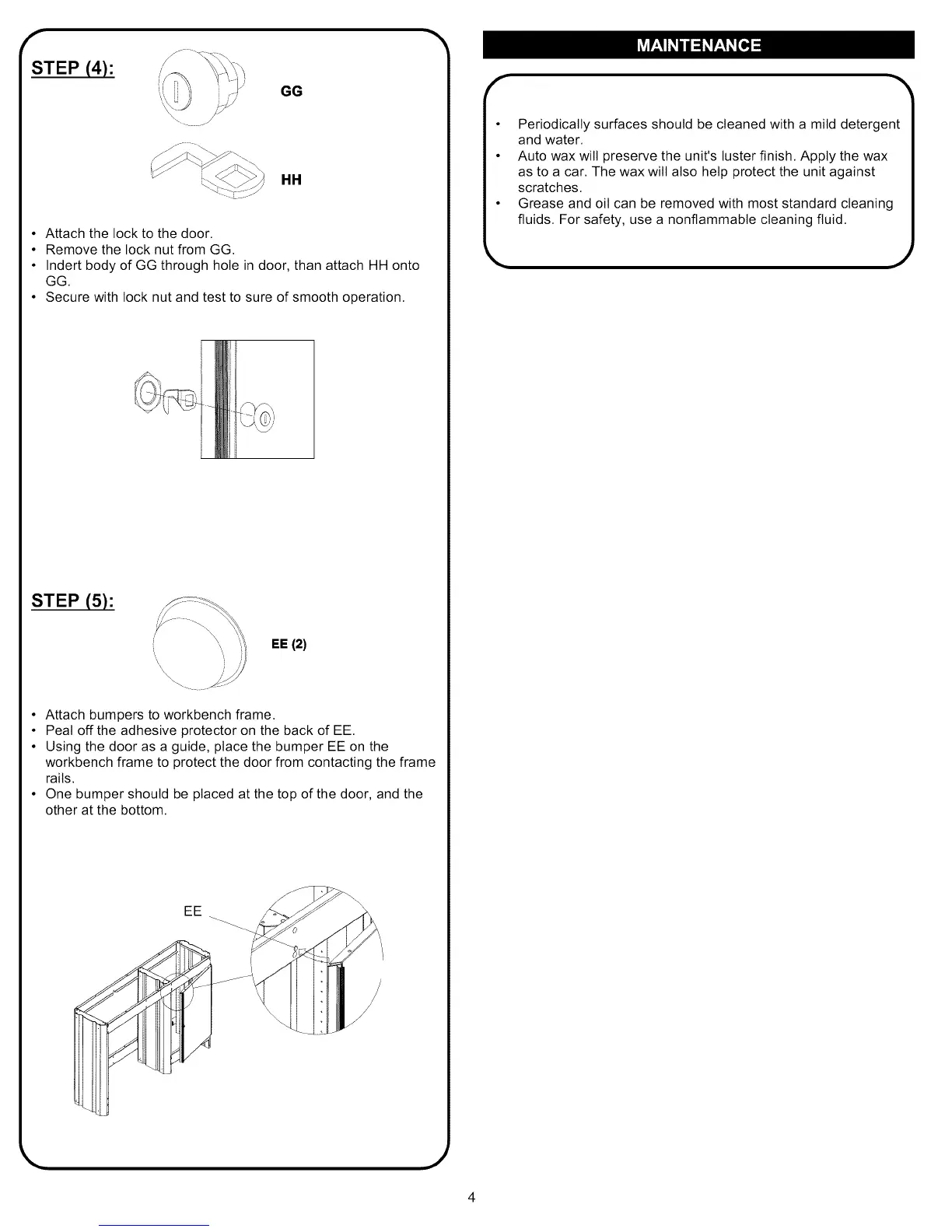

STEP (4):
GG
HH
• Attach the lock to the door
• Remove the lock nut from GG
• Indert body of GG through hole in door, than attach HH onto
GG
• Secure with lock nut and test to sure of smooth operation
STEP (5):
EE (2)
• Attach bumpers to workbench frame
• Peat off the adhesive protector on the back of EE
• Using the door as a guide, place the bumper EE on the
workbench frame to protect the door from contacting the frame
rails
• One bumper should be placed at the top of the door, and the
other at the bottom
EE
and water.
as to a car The wax wilt also help protect the unit against
scratches
fluids For safety, use a nonflammable cleaning fluid
