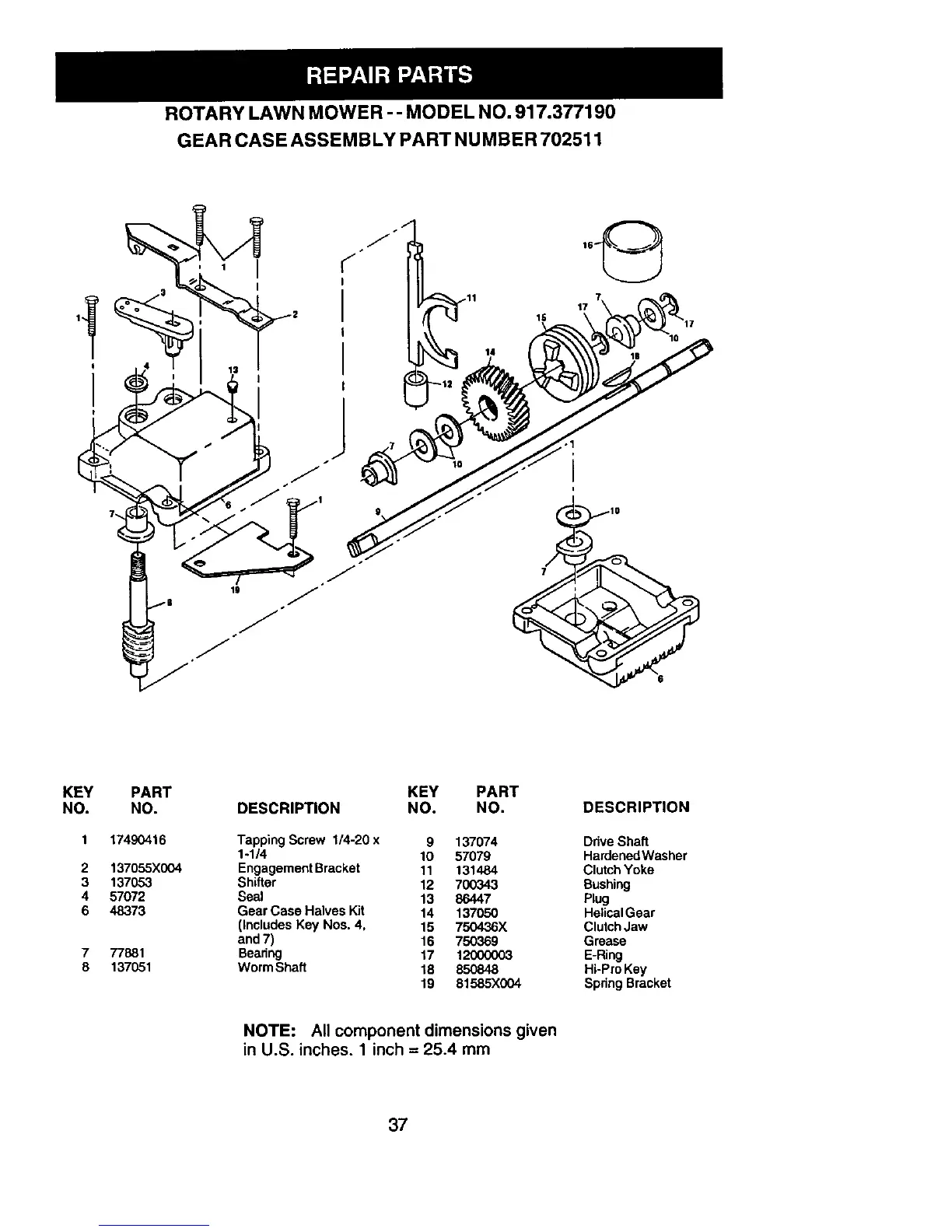

ROTARY LAWN MOWER - - MODEL NO. 917.377190
GEAR CASE ASSEMBLY PART NUMBER 702511
14
17
KEY
NO.
2
3
4
6
7
8
PART
NO.
17490416
137055X004
137053
57072
48373
77881
137051
KEY PART
DESCRIPTION NO. NO. DESCRIPTION
Tapping Screw 1/4-20 x 9 137074 Drive Shaft
1-1/4 10 57079 HardenedWasher
EngagementBracket 11 131484 ClutchYoke
Shifter 12 700343 Bushing
Seal 13 86447 Plug
Gear Case Halves Kit 14 137050 HelicalGear
(includes Key Nos. 4, 15 750436X ClutchJaw
and 7) 16 750369 Grease
Bearing 17 12000003 E-Ring
Worm Shaft 18 850848 Hi-Pro Key
19 81585X004 Spring Bracket
NOTE: All component dimensions given
in U.S. inches. 1 inch = 25.4 mm
37
