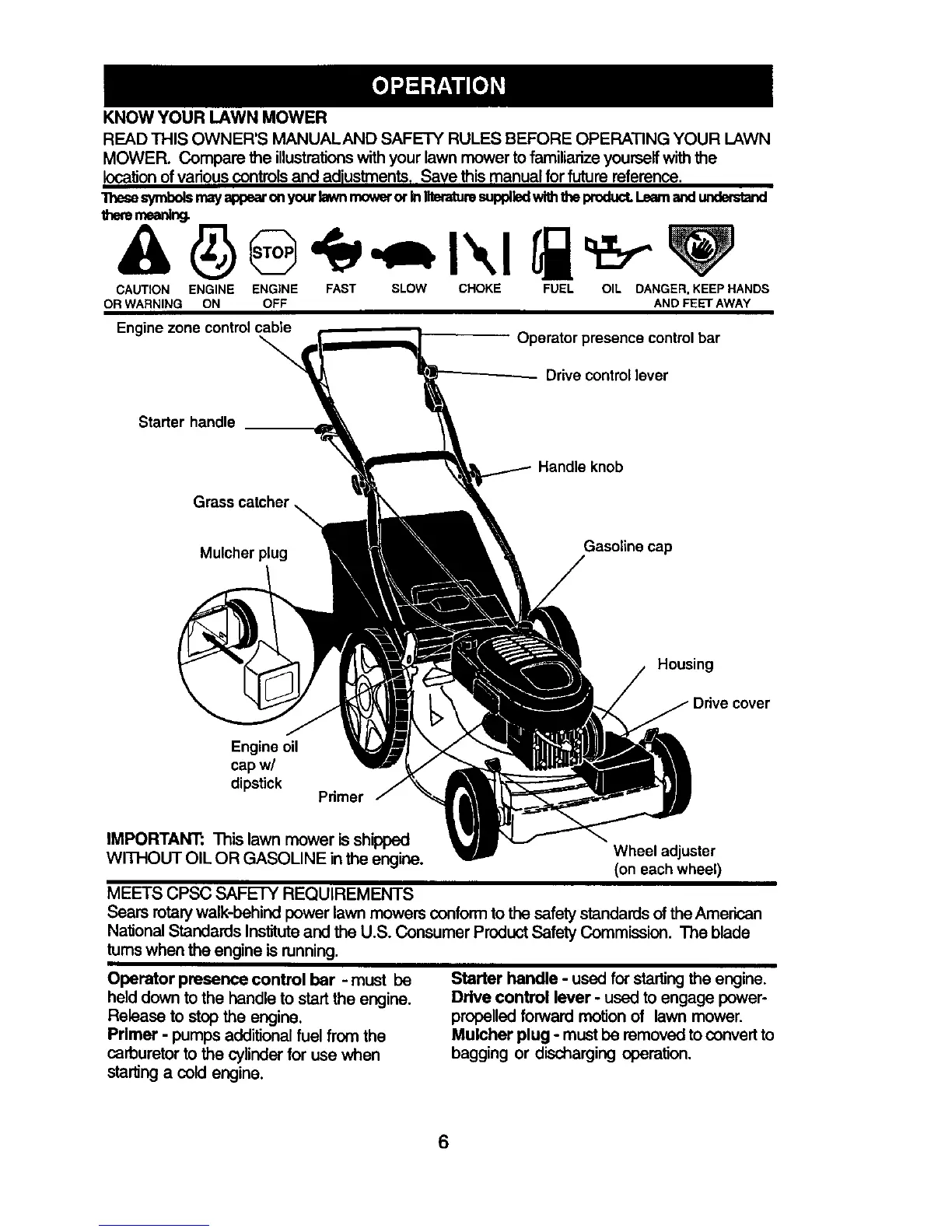

KNOW YOUR LAWN MOWER
READ THIS OWNER'S MANUALAND SAFETY RULES BEFORE OPERATING YOUR LAWN
MOWER. Compare the illustrations with your lawn mower to familiarize yourself wi_ the
location of various controls and adjustments. Save this manual for future reference.
Thesesymbolsmayappearonyour lawnrnowerorInnteratumsuppliedwiththeproduct.Learnandundersland
theremeaning.
CAUTION ENGINE ENGINE FAST SLOW CHOKE FUEL OIL DANGER, KEEP HANDS
OR WARNING ON OFF AND FEET AWAY
Engine zone control cable
\
Operator presence controlbar
Drive control lever
Starter handle
Grass catcher
Mulcher plug
ob
Gasoline cap
Housing
Engine oil
cap w/
dipstick
Pdmer
IMPORTANT: This lawn mower is shipped
WITHOUT OIL OR GASOLINE in the engine.
Wheel adjuster
(on each wheel)
MEETS CPSC SAFETY REQUIREMENTS
Sears rotary walk-behind power lawn mowers conform to the safety standards of the American
National Standards Institute and the U.S. Consumer Product Safety Commission. The blade
tums when the engine is running.
Operator presence control bar - must be
held down to the handle to start the engine.
Release to stop the engine.
Primer - pumps additional fuel from the
carburetor to the cylinder for use when
starting a cold engine.
Starter handle - used for starting the engine.
Drive control lever - used to engage power-
propelled forward motion of lawn mower.
Mulcher plug - must be removed to convert to
bagging or discharging operation.
6
