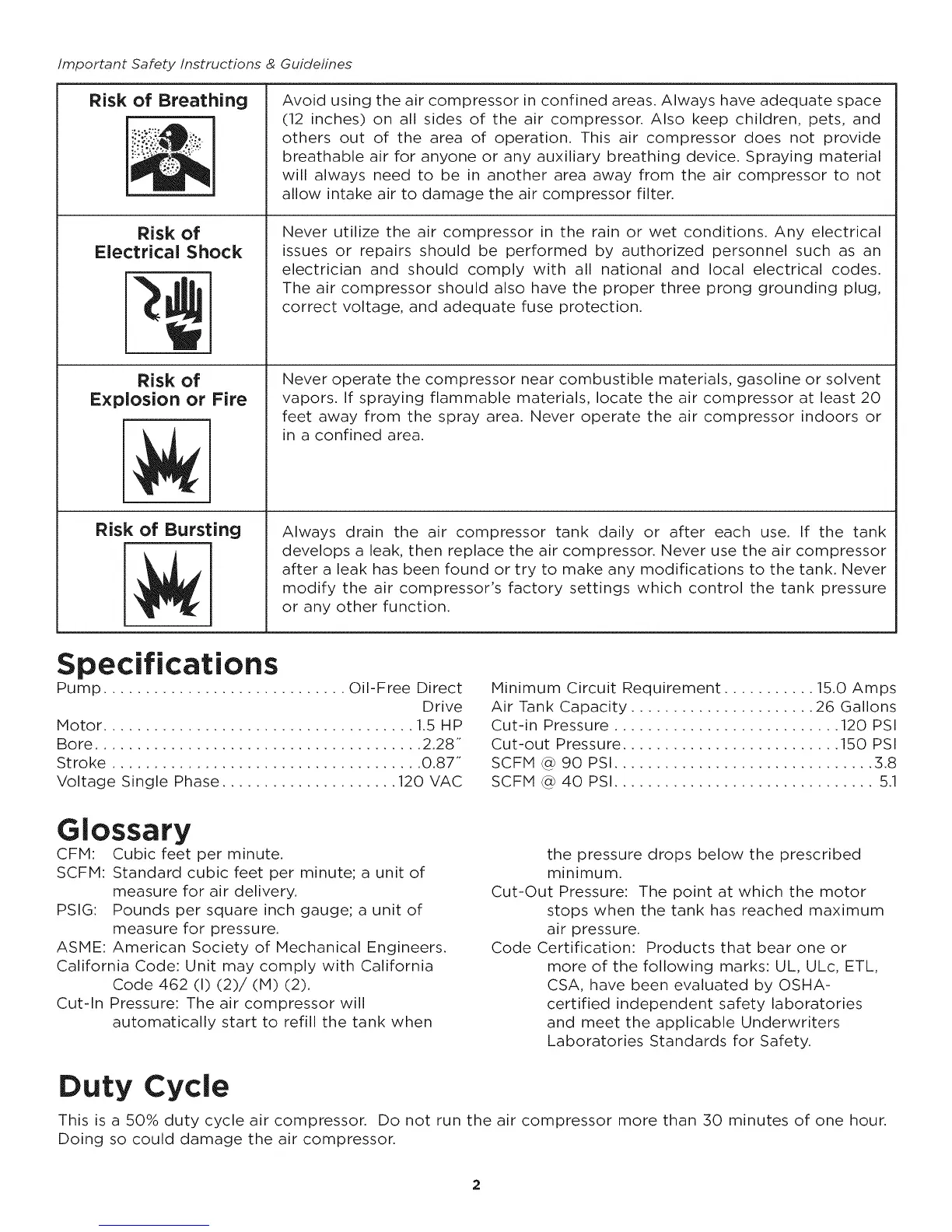

Important Safety Instructions & Guidelines
Risk of Breathing
Risk of
Electrical Shock
Risk of
Explosion or Fire
Risk of Bursting
Avoid using the air compressor in confined areas. Always have adequate space
(12 inches) on all sides of the air compressor. Also keep children, pets, and
others out of the area of operation. This air compressor does not provide
breathable air for anyone or any auxiliary breathing device. Spraying material
will always need to be in another area away from the air compressor to not
allow intake air to damage the air compressor filter.
Never utilize the air compressor in the rain or wet conditions. Any electrical
issues or repairs should be performed by authorized personnel such as an
electrician and should comply with all national and local electrical codes.
The air compressor should also have the proper three prong grounding plug,
correct voltage, and adequate fuse protection.
Never operate the compressor near combustible materials, gasoline or solvent
vapors. If spraying flammable materials, locate the air compressor at least 20
feet away from the spray area. Never operate the air compressor indoors or
in a confined area.
Always drain the air compressor tank daily or after each use. If the tank
develops a leak, then replace the air compressor. Never use the air compressor
after a leak has been found or try to make any modifications to the tank. Never
modify the air compressor's factory settings which control the tank pressure
or any other function.
Specifications
Pump ............................. Oil-Free Direct
Drive
Motor ..................................... 1.5 HP
Bore ....................................... 2.28"
Stroke ..................................... 0.87"
Voltage Single Phase ..................... 120 VAC
Minimum Circuit Requirement ........... 15.0 Amps
Air Tank Capacity ...................... 26 Gallons
Cut-in Pressure ........................... 120 PSI
Cut-out Pressure .......................... 150 PSI
SCFM _ 90 PSI ............................... 3.8
SCFM _ 40 PSI ............................... 5.1
Glossary
CFM: Cubic feet per minute.
SCFM: Standard cubic feet per minute; a unit of
measure for air delivery.
PSIG: Pounds per square inch gauge; a unit of
measure for pressure.
ASME: American Society of Mechanical Engineers.
California Code: Unit may comply with California
Code 462 (I) (2)/(M) (2).
Cut-In Pressure: The air compressor will
automatically start to refill the tank when
the pressure drops below the prescribed
minimum.
Cut-Out Pressure: The point at which the motor
stops when the tank has reached maximum
air pressure.
Code Certification: Products that bear one or
more of the following marks: UL, ULc, ETL,
CSA, have been evaluated by OSHA-
certified independent safety laboratories
and meet the applicable Underwriters
Laboratories Standards for Safety.
Duty Cycle
This is a 50% duty cycle air compressor. Do not run the air compressor more than 30 minutes of one hour.
Doing so could damage the air compressor.
To Next Page
