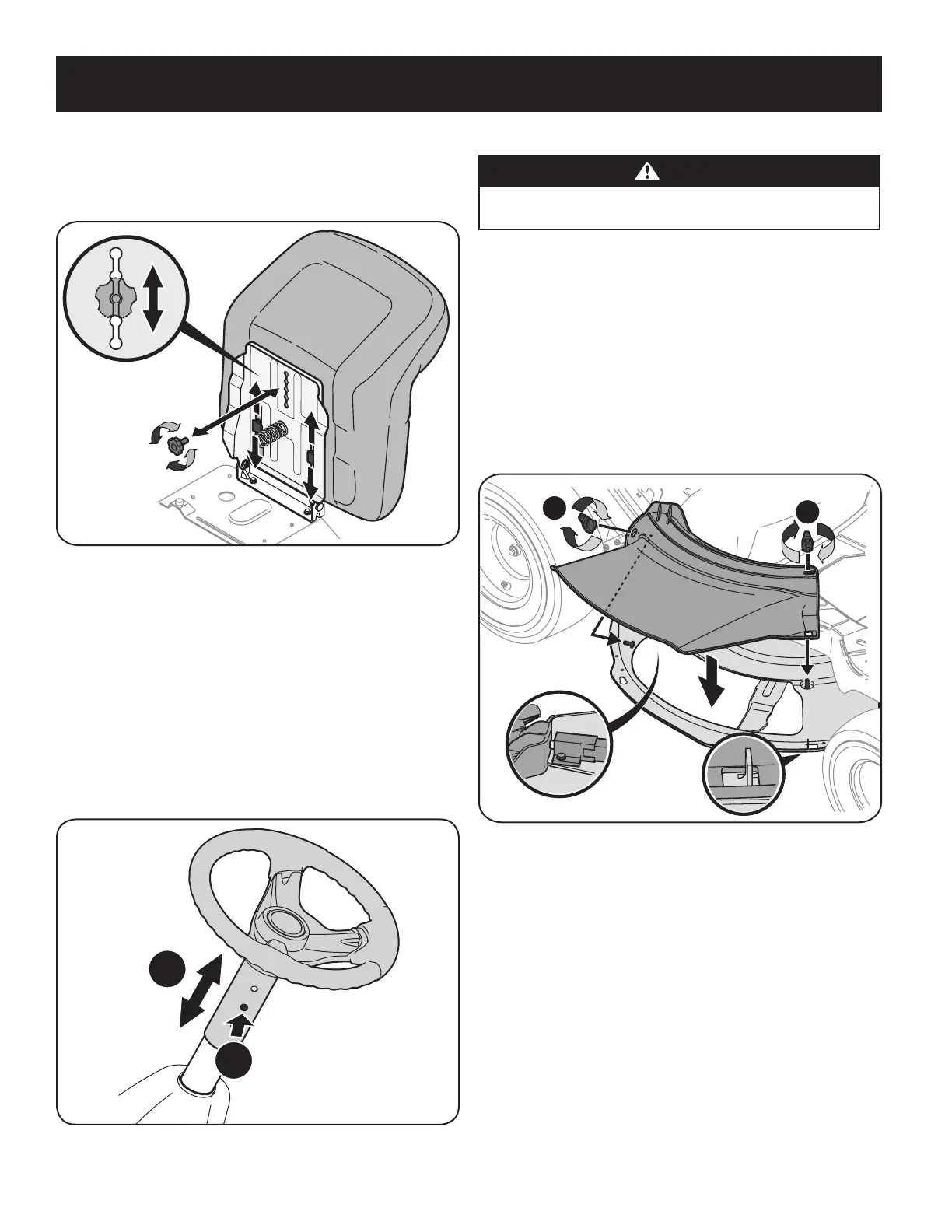

Seat Adjustment
1. To adjust the position of the seat, remove the adjustment knob on the
bottom of the seat. Slide the seat forward or backward as desired. Reinstall
the adjustment knob. Refer to Figure 8.
Figure 8
Steering wheel height adjustment
To adjust the height of the steering wheel, this unit is equipped with a telescoping
steering column. To adjust the height of the steering wheel:
1. Sit in the operator’s seat and place your hands on the steering wheel.
2. Push the button (a) on the steering column and raise or lower the steering
wheel (b) to the desired position. See Figure 9.
Note: Once the desired position is achieved, lift up and down on the steering wheel
to make sure it locks into place and the button (a) on the steering column releases
into a locked position. Do not operate this unit unless the steering column is in a
locked position.
Figure 9
Installing The Deck Chute
WARNING
NEVER operate this tractor without either the mulch plug or deck chute
installed.
1. Remove the wing knobs installed on the mowing deck and retain for later
installation.
2. Install the deck chute into the deck discharge opening on the deck. The studs
on the deck surface will fit through the holes on the upper portion of the
deck chute. The small tab on the deck lip area will fit through the square
cutout on the lower portion of the deck chute. See inset of Figure 10.
Note: Make certain that the upper-rear portion of deck chute is depressing
the safety switch located on the deck surface. The engine will not start
without the deck chute properly in place.
3. Secure the deck chute by tightening the wing knobs removed earlier. See
Figure 10.
Figure 10
10
ASSEMBLY
