Craftsman T100 Series User Manual

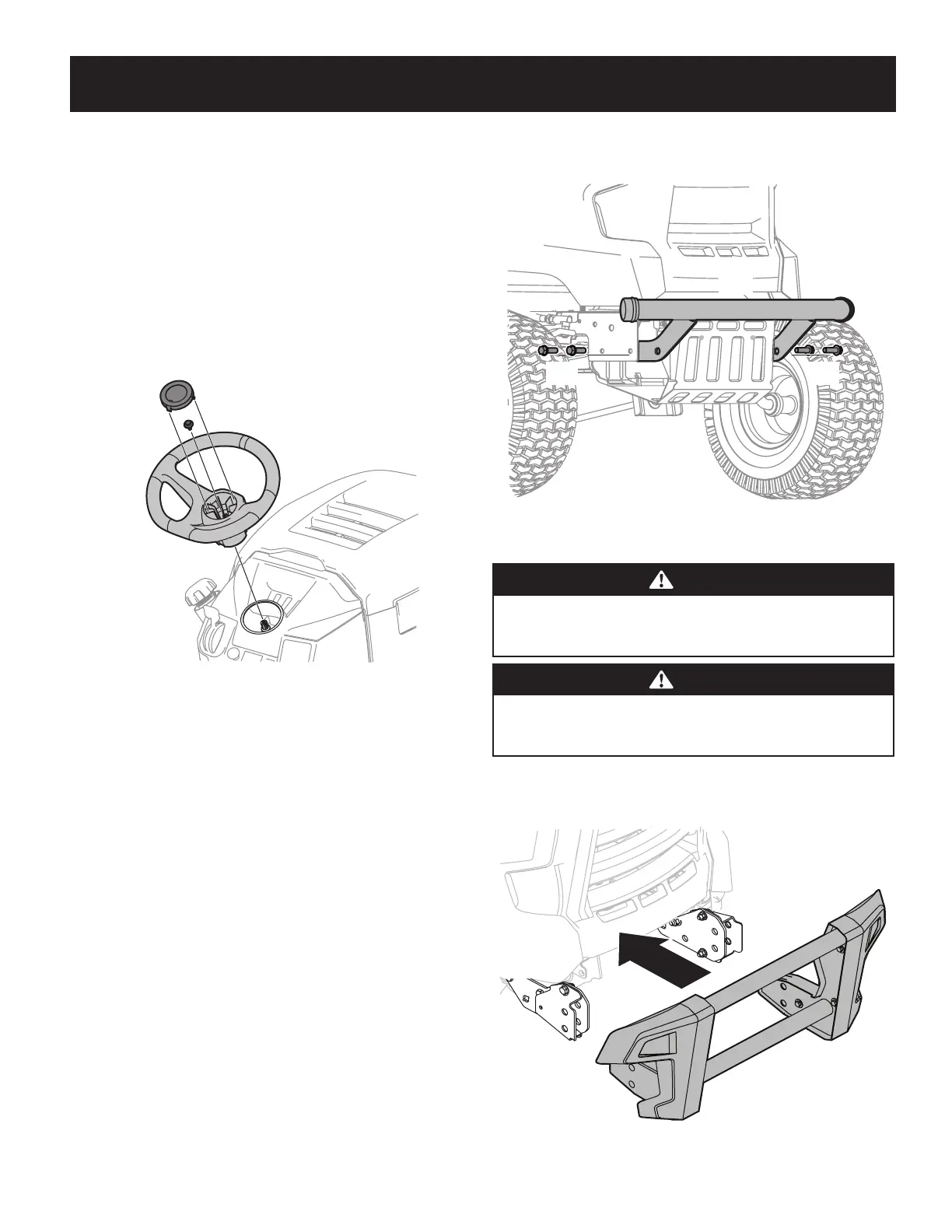

13
ASSEMBLY
2. Position the bumper brackets to the inside of the tractor’s frame and secure
it in place with the four hex flange screws (a). See Figure 16.
(a) (a)
(b)
Figure 16
Installing the FastAttach™ Brush Guard (if Equipped)
WARNING
Disengage the PTO, engage the brake lock, and stop the tractor engine
before performing any preparation procedures. Place the tractor on a firm
and level surface before beginning installation or removal procedures.
WARNING
The exhaust system and surrounding areas are HOT. To avoid personal
injury, allow the tractor to cool before beginning any brush guard
installation or removal procedures.
1. Align the brush guard assembly with the FastAttach™ brackets and push
assembly together. See Figure 17.
Figure 17
Installing the Steering Wheel (If necessary)
The hardware for attaching the steering wheel has been packed within the steering
wheel, beneath the steering wheel cap. Carefully pry off the steering wheel cap and
remove the hardware.
IMPORTANT! Do not use impact tools to install or remove the steering wheel. Doing
so may cause damage to critical power steering components.
1. With the wheels of the tractor pointing straight forward, align the steering
wheel (a)by using the center-line (b) on the front of the steering wheel (a)
pointing straight ahead and the flat section (c) of the steering wheel (a)
facing toward the seat, place the steering wheel (a) over the steering shaft
(d). See Figure 15.
(e)
(f)
(c)
(a)
(b)
Figure 15
2. Secure the steering wheel (a) with the hex bolt (e) from under the steering
wheel cap (f) and torque to 18-22 ft.-lbs.
3. Place the steering wheel cap (f) over the center of the steering wheel (a) and
push downward until it “clicks” into place.
NOTE: The hex bolt (e) securing the steering wheel (a) has thread locker
applied to it, so if it is removed, it is recommended that the hex bolt (a) be
replaced or thread lock re-applied.
Installing the Front Bumper (If necessary)
The hardware for attaching the front bumper is shipped installed into the bumper.
1. Remove the four hex screws (a) from the bumper (b).

Craftsman T100 Series Specifications

General

Turning Radius	18 inches
Warranty	2-year limited
Cutting Width	42 inches
Fuel Capacity	1.3 gallons
Cutting Height	1.5 to 4 inches
Engine	Briggs & Stratton 675 Series
