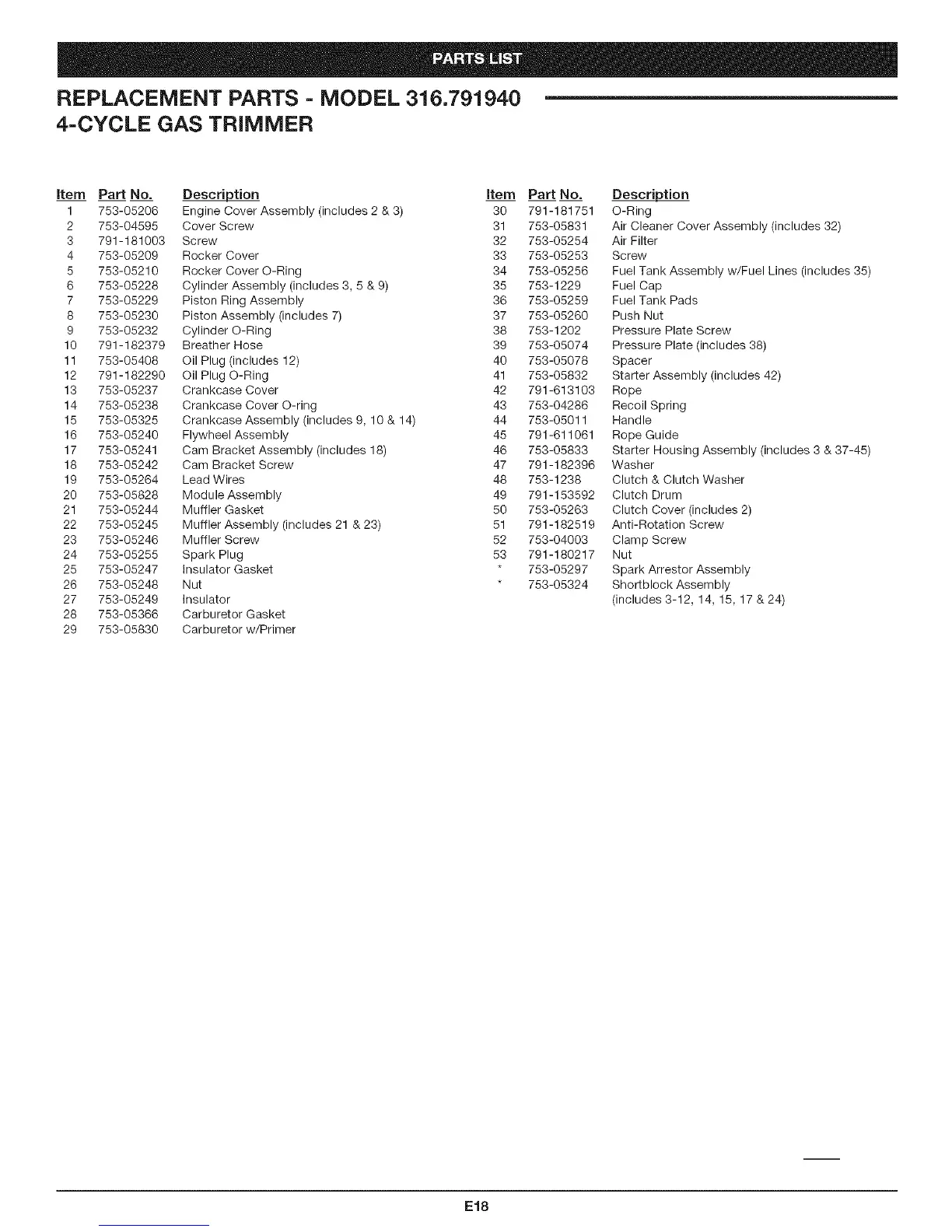

REPLACEMENT PARTS - MODEL 316.791940
4-CYCLE GAS TRIMMER
item Part No. Description item Part No. Description
1 753-05206 Engine Cover Assembly (includes 2 & 3) 30 791-181751 O-Ring
2 753-04595 Cover Screw 31 753-05831 Air Cleaner Cover Assembly (includes 32)
3 791-181003 Screw 32 753-05254 Air Filter
4 753-05209 Rocker Cover 33 753-05253 Screw
5 753-05210 Rocker Cover O-Ring 34 753-05256 Fuel Tank Assembly w/Fuel Lines (includes 35)
6 753-05228 Cylinder Assembly (includes 3, 5 & 9) 35 753-1229 Fuel Cap
7 753-05229 Piston Ring Assembly 36 753-05259 Fuel Tank Pads
8 753-05230 Piston Assembly (includes 7) 37 753-05260 Push Nut
9 753-05232 Cylinder O-Ring 38 753-1202 Pressure Plate Screw
10 791-182379 Breather Hose 39 753-05074 Pressure Plate (includes 38)
11 753-05408 Oil Plug (includes 12) 40 753-05078 Spacer
12 791-182290 Oil Plug O-Ring 41 753-05832 Starter Assembly (includes 42)
13 753-05237 Crankcase Cover 42 791-613103 Rope
14 753-05238 Crankcase Cover O-ring 43 753-04286 Recoil Spring
15 753-05325 Crankcase Assembly (includes 9, 10 & 14) 44 753-05011 Handle
16 753-05240 Flywheel Assembly 45 791-611061 Rope Guide
17 753-05241 Cam Bracket Assembly (includes 18) 46 753-05833 Starter Housing Assembly (includes 3 & 37-45)
18 753-05242 Cam Bracket Screw 47 791-182396 Washer
19 753-05264 Lead Wires 48 753-1238 Clutch & Clutch Washer
20 753-05828 Module Assembly 49 791-153592 Clutch Drum
21 753-05244 Muffler Gasket 50 753-05263 Clutch Cover (includes 2)
22 753-05245 Muffler Assembly (includes 21 & 23) 51 791-182519 Anti-Rotation Screw
23 753-05246 Muffler Screw 52 753-04003 Clamp Screw
24 753-05255 Spark Plug 53 791-180217 Nut
25 753-05247 Insulator Gasket 753-05297 Spark Arrestor Assembly
26 753-05248 Nut 753-05324 ShoO,block Assembly
27 753-05249 Insulator (includes 3-12, 14, 15, 17 &24)
28 753-05366 Carburetor Gasket
29 753-05830 Carburetor w/Primer
El8
